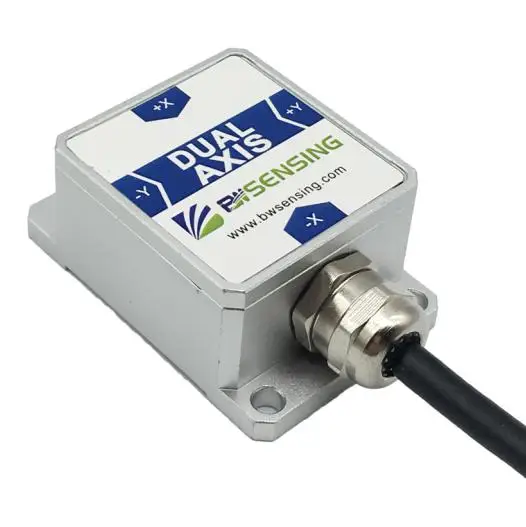

Aluminum Alloy Dynamic Inclinometer With 280g Resolution 0.01°
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xOutput Signal | RS232/485/TTL Interface Output Optional | Accuracy | 2°(dynamic) 0.2°(static) |
---|---|---|---|
Measurement Range | ±90°(pitch) ±180°(roll) | Name | Dynamic Inclinometer |
Size | L55 X W37 X H24mm | Resolution | 0.01° |
Weight | 280g | Material | Aluminum Alloy |
High Light | aluminium alloy dynamic inclinometer,high resolution dynamic inclinometer,high resolution slope inclinometer |
Product Description:
Dynamic Inclinometer is a dynamic angle gauge and tilt sensor which is designed to measure the dynamic angles in two axes accurately. It is made of high-quality aluminum alloy and offers IP67 protection level, ensuring durability and reliability. Its accuracy is 2° in dynamic mode and 0.2° in static mode. Moreover, it is powered by DC 5-12V and offers a resolution of 0.01°, making it an ideal choice for precise angle measurements.
Dynamic Inclinometer is suitable for numerous applications, such as tracking the attitude of vehicles, detecting the tilt angle of motorized platforms, monitoring the position of construction machinery, and controlling the attitude of drones. What's more, it is also widely used for measuring the angle of slopes, bridges, buildings, and other structures. With its compact size and lightweight design, it can be easily installed in tight spaces.
As a dependable dynamic angle gauge and tilt sensor, Dynamic Inclinometer is sure to provide accurate and reliable dynamic angle measurements in two axes, making it an ideal choice for numerous applications.
Features:
- Product Name: Dynamic Inclinometer
- Weight: 280g
- Accuracy: 2°(dynamic) 0.2°(static)
- Interface: M12 Connector
- Size: L55 X W37 X H24mm
- Resolution: 0.01°
- Keywords: Dynamic Tilt Gauge, Dynamic Tilt Gauge, Dynamic Inclination Indicator
Technical Parameters:
Parameter | Value |
---|---|
Name | Dynamic Inclinometer |
Weight | 280g |
Size | L55 X W37 X H24mm |
Material | Aluminum Alloy |
Output Signal | RS232/485/TTL Interface Output Optional |
Temperature Range | -40°C~+85°C |
Power Supply | DC 5-12V |
Protection Level | IP67 |
Measurement Range | ±90°(pitch) ±180°(roll) |
Accuracy | 2°(dynamic) 0.2°(static) |
Applications:
Dynamic inclinometer is a precision measuring instrument for measuring angles and inclination produced by BWSENSING. The model number is BW-VG100. It has an accuracy of 2°(dynamic) 0.2°(static) and resolution of 0.01°. Also, it has a temperature range of -40°C~+85°C. This versatile dynamicangle gauge has a minimum order quantity of 1, and the price varies from $85~138. You can make payment through Alibaba/TT and the delivery time can be expected to be 5~7 working days. The weight of this dynamic inclinometer is 280g.
Whether you need to measure angles and inclination in dynamic or static conditions, BWSENSING Dynamic Inclinometer is the perfect solution. Its high-precision, compact design, and wide temperature range make it perfect for a variety of applications. With a minimum order quantity of 1, you can get it at an affordable price and expect a speedy delivery. Make sure to get your BWSENSING Dynamic Inclinometer today!
Support and Services:
At Dynamic Inclinometer, we are devoted to providing our customers with the best technical support and service possible. Our technical support team is available to answer any questions you may have and help you get the most out of your Dynamic Inclinometer.
We provide comprehensive and friendly toll-free technical support for all Dynamic Inclinometer products. Our team of experienced technicians can provide helpful advice on product installation, operation, troubleshooting, and maintenance. We also offer detailed product information, user manuals, and firmware updates.
In addition to technical support, we offer a variety of services for our customers. We offer product repair and maintenance services, as well as installation and calibration services. We also provide custom solutions for unique requirements. Our team of experts will work with you to ensure you get the most out of your Dynamic Inclinometer.
Packing and Shipping:
The Dynamic Inclinometer is a versatile and sensitive instrument for measuring inclination angles. It is packaged and shipped in a secure and reliable way to protect it during transit.
The Dynamic Inclinometer is packaged in a cardboard box with custom-made foam inserts. The foam inserts securely cradle the instrument, providing cushioning to protect it from shocks and vibrations during transport. The box is sealed with strong adhesive tape to ensure that it remains closed during shipping.
The Dynamic Inclinometer is shipped via an international courier service. The instrument is tracked and monitored throughout transit to ensure safe and timely delivery. All packages are insured against loss or damage in transit.
