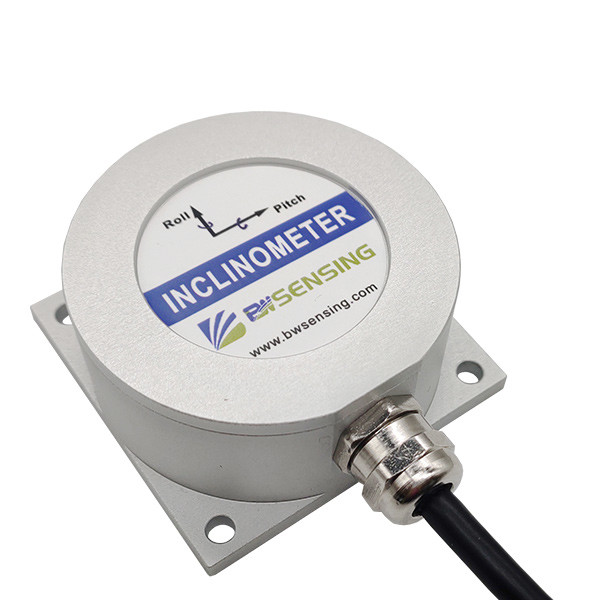

VG600 High-Precision Digital Dynamic Inclinometer RS232/485/TTL Optional Accuracy 0.01°

Place of Origin CHINA
Model Number VG600
Minimum Order Quantity 1 unit
Packaging Details BWSENSING BOX,Express package
Delivery Time 3-5 working days
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Name Dynamic Inclinometer Dynamic Accuracy 0.05°
Static Accuracy 0.01° Resolution 0.001°
Insulation Resistance ≥30000 Hours Working Current 30mA (40mA Max)
Installation Four M4 Screws Protection Level IP67
High Light

Dynamic Inclinometer Accuracy 0.01


IP67 Dynamic Inclinometer


RS485 dual axis digital protractor

Leave a Message
Product Description

VG600 High-precision Accuracy 0.01° Digital Dynamic Inclinometer RS232/485/TTL Optional




VG600 dynamic inclination sensor is a high-precision attitude measurement equipment, which can measure the inertial attitude parameters of rolling and pitching, angular velocity and acceleration of moving carrier. The attitude deviation is estimated by 6-state Kalman filter with appropriate gain, which is suitable for inclination measurement in motion or vibration. Through nonlinear compensation, orthogonal compensation, temperature compensation and drift compensation, the error caused by interference can be greatly eliminated and the accuracy level of products can be improved.


Performance Index:




Attitude Parameter


Dynamic accuracy 0.05°
Static accuracy 0.01°
Resolution 0.001°
Tilt margin Pitch±90º,Role±180º

Physical properties

Dimension L60×W59×H29(mm)
Weight (with wire) 280g
Weight (With packaging) 360g

Interface characteristics

Start delay <50ms
Maximum sampling rate frequency 200Hz
Serial communication rate 2400 to115200 baud rate
Digital output format Binary high-performance protocol
Trouble-free work on average ≥30000 hours
EMC According to GBT17626
Insulation Resistance ≥100MΩ
Surge suppression 2000g,0.5ms,3 Times/shaft



VG600 High-Precision Digital Dynamic Inclinometer RS232/485/TTL Optional Accuracy 0.01° 0





● Underwater unmanned boat

● Turbine sloshing monitoring

● Platform stability

● large ship

● Photoelectric pod

● Unmanned Drive

● Special Vehicles


BWSENSING's Accuracy Traceability System:

VG600 High-Precision Digital Dynamic Inclinometer RS232/485/TTL Optional Accuracy 0.01° 1


Company introduction

Wuxi Bewis Sensing Technology LLC(BWSENSING) is an innovative fast growing company established in 2010. The company was born in The Institute of Microelectronics (IME) of Peking University. We have achieved the top spot in the middle and high-end industry applications in the Chinese market.

From 2019, BWSENSING ® is approved as our global brand.With 10 years experience in the research-design-development and manufacture of a range of Inertial sensor technology, BWSENSING posses the skills, knowledge and experience to provide fully integrated OEM/ODM design and manufacturing services for Inclinometer, Electronic Compass, IMU, AHRS, GNSS/INS and Fiber Optic Gyroscope. As the company co-founder Dr. Guangyi Shi said, we will use the Accurate and Cost-effective sensors to make a greater contribution to the global society for a better IoT world.


VG600 High-Precision Digital Dynamic Inclinometer RS232/485/TTL Optional Accuracy 0.01° 2




Q1: Accuracy definition of products

A: RMS accuracy, the accuracy of each product can be traced.Accuracy test report can be provided if required.


Q2: How to select suitable model?

A: Users should check the following points:

a. Single or dual axis?

b. Commom protocol, Modbus or CAN?

c. Dynamic or static Application scenarios?

d. Horizontal or vertical installation?




Q3: How to purchase?

A: If you want sample, please purchase on BWSENSING online shop. We accept Paypal/TT/CC.If you purchase in bulk, it is recommended to consult the sales for the best price.


Q4: How long is the warranty period?

A: One year.
