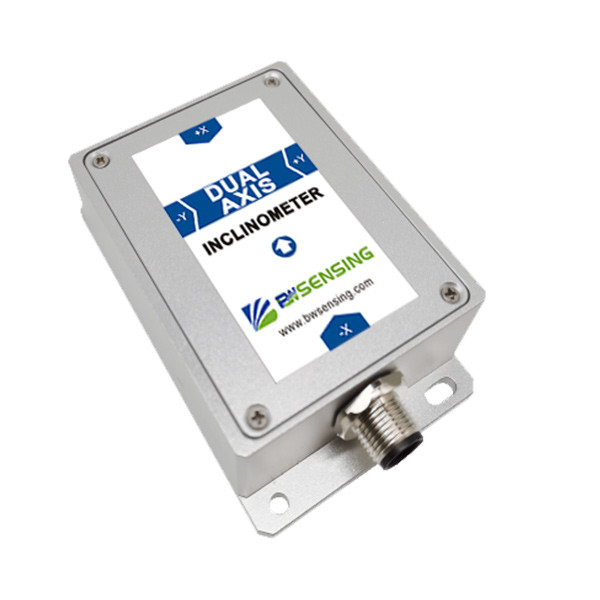

VG527E High-Precision Modbus Dynamic Inclinometer Tiltmeter Accuracy 0.02~0.05°

  • VG527E High-Precision Modbus Dynamic Inclinometer Tiltmeter Accuracy 0.02~0.05°
Place of Origin CHINA
Brand Name BWSENSING
Model Number VG527E
Minimum Order Quantity 1 unit
Packaging Details BWSENSING BOX,Express package
Delivery Time 3-5 working days
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Dynamic Inclinometer Power Supply 9-35V DC
Dynamic Accuracy 0.02~0.05° Static Accuracy 0.01°
Resolution 0.01° Maximum Output 200Hz
MTBF ≥30000 H/times Impact Resistance 2000g
High Light

electrical instruments and measurements Accuracy 0.02

,

electrical instruments and measurements 0.05

,

200Hz modbus inclinometer
Leave a Message
Product Description

VG527E High-precision Modbus Dynamic Inclinometer Accuracy 0.02~0.05°



Introduction:



VG527E dynamic inclinometer is an attitude measurement device with surge <impact> immunity reaching IEC 61000-4-5 level IV. It can measure the inertial attitude parameters of the moving carrier's roll and pitch, angular velocity and acceleration.The attitude deviation is estimated by the 6-state Kalman filter with appropriate gain, which is suitable for inclination measurement in motion or vibration state.



Performance Index:





Attitude parameter



 Dynamic accuracy 0.02~0.05°
Static accuracy 0.01°
Resolution 0.01°
Inclination range Pitch± 90º,Roll±180º

Mechanical

Feature

 Dimension

L97*W63*H27.2(mm)
Weight (with cable) 400g
Weight (With package) 480g

Interface Feature

 Start-up delay <50ms
Maximum output 200Hz
Serial communication rate 2400 to115200 Baud rate
Electrostatic discharge (ESD) IEC 61000-4-2 IV level Contact discharge 8KV, air discharge 15KV
Fast transient pulse burst immunity IEC 61000-4-4 IV level

Repetition frequency: 5kHz;

Power positive and negative poles: 4kHz; Signal line:2KV
Surge (impact) immunity IEC 61000-4-5 IV level Power positive and negative, signal line: common mode: 4KV
MTBF ≥30000 h/times
EMC According to GBT17626
Impact resistance 2000g,0.5ms,3 times/axis





VG527E High-Precision Modbus Dynamic Inclinometer Tiltmeter Accuracy 0.02~0.05° 0



Application:



● Underwater unmanned boat

● Turbine sloshing monitoring

● Stable platform

● Large ship

● Photoelectric pod

● Unmanned drive



VG527E High-Precision Modbus Dynamic Inclinometer Tiltmeter Accuracy 0.02~0.05° 1

Company introduction

Wuxi Bewis Sensing Technology LLC(BWSENSING) is an innovative fast growing company established in 2010. The company was born in The Institute of Microelectronics (IME) of Peking University. We have achieved the top spot in the middle and high-end industry applications in the Chinese market.

From 2019, BWSENSING ® is approved as our global brand.With 10 years experience in the research-design-development and manufacture of a range of Inertial sensor technology, BWSENSING posses the skills, knowledge and experience to provide fully integrated OEM/ODM design and manufacturing services for Inclinometer, Electronic Compass, IMU, AHRS, GNSS/INS and Fiber Optic Gyroscope. As the company co-founder Dr. Guangyi Shi said, we will use the Accurate and Cost-effective sensors to make a greater contribution to the global society for a better IoT world.



VG527E High-Precision Modbus Dynamic Inclinometer Tiltmeter Accuracy 0.02~0.05° 2



FAQ



Q1: Accuracy definition of products

A: RMS accuracy, the accuracy of each product can be traced.Accuracy test report can be provided if required.



Q2: How to select suitable model?

A: Users should check the following points:

a. Single or dual axis?

b. Commom protocol, Modbus or CAN?

c. Dynamic or static Application scenarios?

d. Horizontal or vertical installation?





Q3: How to purchase?

A: If you want sample, please purchase on BWSENSING online shop. We accept Paypal/TT/CC.If you purchase in bulk, it is recommended to consult the sales for the best price.



Q4: How long is the warranty period?

A: One year.
