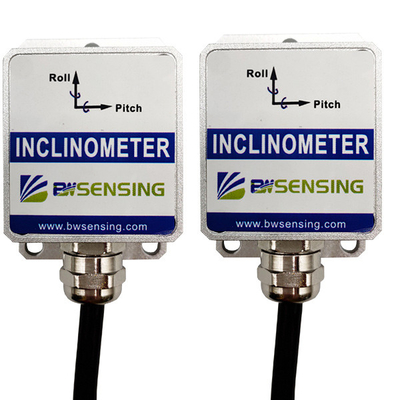

VG127 Low-Cost Small-Size RS232/485/TTL/Modbus Optional Dynamic Inclinometer Tiltmeter

  • VG127 Low-Cost Small-Size RS232/485/TTL/Modbus Optional Dynamic Inclinometer Tiltmeter
Place of Origin CHINA
Brand Name BWSENSING
Model Number VG127
Minimum Order Quantity 1 unit
Packaging Details BWSENSING BOX,Express package
Delivery Time 3-5 working days
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Dynamic Inclinometer Dynamic Accuracy 2°
Static Accuracy 0.2° Tilt Margin Pitch±90º，Roll±180º
Start Delay <50ms MTBF ≥90000 Hours
Insulation Resistance ≥100MΩ Protection Level IP67
Highlight

RS232 Dynamic Inclinometer

,

TTL Dynamic Inclinometer

,

precision digital inclinometer Anti shock
Leave a Message
Product Description

VG127 Low-cost Small-size RS232/485/TTL/Modbus Optional Dynamic Inclinometer



Introduction:



Vg127 is a low-cost attitude measurement equipment, which is suitable for inertial attitude parameter measurement of moving carrier.Through nonlinear compensation, quadrature compensation, temperature compensation and drift compensation, the error caused by interference can be greatly eliminated. It adopts MEMS accelerometer and gyroscope with high quality and reliability.High-performance Kalman filter algorithm is built in it to ensure accuracy.



Performance Index:







Attitude Parameter



 Dynamic accuracy 2°
Static accuracy 0.2°
Resolution 0.01°
Tilt margin Pitch±90º,Role±180º



Physical properties

 Dimension L55 x W37 x H24(mm)
Weight (with wire) 130g
Weight (With packaging) 210g

Interface characteristics

 Start delay <50ms
Maximum sampling rate frequency 100Hz
Serial communication rate

2400 to115200 bps
Digital output format Binary high-performance protocol
Trouble-free work on average ≥90000 hours
EMC According to GBT17626
Insulation Resistance ≥100MΩ
Surge suppression 2000g,0.5ms,3 Times/axis



VG127 Low-Cost Small-Size RS232/485/TTL/Modbus Optional Dynamic Inclinometer Tiltmeter 0





Application:



● Marine vessels

● Construction Machinery

● Platform stability

● Agricultural machinery

● ROV underwater robot navigation

● Unmanned Drive

● Robot



BWSENSING's Accuracy Traceability System:

VG127 Low-Cost Small-Size RS232/485/TTL/Modbus Optional Dynamic Inclinometer Tiltmeter 1



Company introduction

Wuxi Bewis Sensing Technology LLC(BWSENSING) is an innovative fast growing company established in 2010. The company was born in The Institute of Microelectronics (IME) of Peking University. We have achieved the top spot in the middle and high-end industry applications in the Chinese market.

From 2019, BWSENSING ® is approved as our global brand.With 10 years experience in the research-design-development and manufacture of a range of Inertial sensor technology, BWSENSING posses the skills, knowledge and experience to provide fully integrated OEM/ODM design and manufacturing services for Inclinometer, Electronic Compass, IMU, AHRS, GNSS/INS and Fiber Optic Gyroscope. As the company co-founder Dr. Guangyi Shi said, we will use the Accurate and Cost-effective sensors to make a greater contribution to the global society for a better IoT world.



VG127 Low-Cost Small-Size RS232/485/TTL/Modbus Optional Dynamic Inclinometer Tiltmeter 2



FAQ



Q1: Accuracy definition of products

A: RMS accuracy, the accuracy of each product can be traced.Accuracy test report can be provided if required.



Q2: How to select suitable model?

A: Users should check the following points:

a. Single or dual axis?

b. Commom protocol, Modbus or CAN?

c. Dynamic or static Application scenarios?

d. Horizontal or vertical installation?



Q3: How to purchase?



A: If you want sample, please purchase on BWSENSING online shop. We accept Paypal/TT/CC.If you purchase in bulk, it is recommended to consult the sales for the best price.



Q4: How long is the warranty period?

A: One year.
