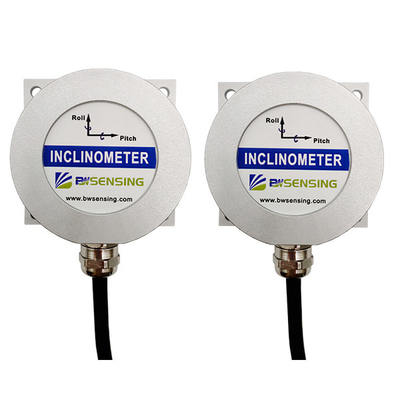

VG125C Low-Cost CAN Dynamic Inclinometer Tiltmeter Accuracy 0.01°

  • VG125C Low-Cost CAN Dynamic Inclinometer Tiltmeter Accuracy 0.01°
Place of Origin CHINA
Brand Name BWSENSING
Model Number VG125C
Minimum Order Quantity 1 unit
Packaging Details BWSENSING BOX,Express package
Delivery Time 3-5 working days
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Dynamic Inclinometer Voltage 9-35V DC
Dynamic Accuracy 1° Static Accuracy 0.01°
Tilt Margi Pitch±90º，Roll±180º Size L60×W59×H29（mm）
Digital Output Format Binary High-performance Protection Level IP67
High Light

35VDC digital level inclinometer

,

CAN digital level inclinometer

,

0.01 digital level angle finder
Leave a Message
Product Description

VG125C Low-cost CAN Dynamic Inclinometer Accuracy 0.01°



Introduction:



Vg125c dynamic inclination sensor is suitable for unmanned driving, platform stability, large ships and other fields. It has high cost performance and high precision,can measure the inertial attitude parameters of angular velocity and acceleration of moving carrier. MEMS accelerometer and gyroscope with high quality and reliability are built in,to accurately measure the attitude parameters of the carrier even in harsh environments. With digital interface, it can be easily integrated into the user's system.



Performance Index:







Attitude Parameter



 Dynamic accuracy 1°
Static accuracy 0.01°
Resolution 0.01°
Tilt margin Pitch±90º,Role±180º

Physical properties

 Dimension L60×W59×H29(mm)
Weight (with wire) 280g
Weight (With packaging) 360g

Interface characteristics

 Start delay <50ms
Maximum sampling rate frequency 200Hz
Serial communication rate 2400 to115200 baud rate
Digital output format Binary high-performance protocol
Trouble-free work on average ≥30000 hours
EMC According to GBT17626
Insulation Resistance ≥100MΩ
Surge suppression 2000g,0.5ms,3 Time/shaft



VG125C Low-Cost CAN Dynamic Inclinometer Tiltmeter Accuracy 0.01° 0

Application:



● Underwater unmanned boat

● Turbine sloshing monitoring

● Platform stability

● large ship

● Photoelectric pod

● Special Vehicles



BWSENSING's Accuracy Traceability System:

VG125C Low-Cost CAN Dynamic Inclinometer Tiltmeter Accuracy 0.01° 1





Company introduction

Wuxi Bewis Sensing Technology LLC(BWSENSING) is an innovative fast growing company established in 2010. The company was born in The Institute of Microelectronics (IME) of Peking University. We have achieved the top spot in the middle and high-end industry applications in the Chinese market.

From 2019, BWSENSING ® is approved as our global brand.With 10 years experience in the research-design-development and manufacture of a range of Inertial sensor technology, BWSENSING posses the skills, knowledge and experience to provide fully integrated OEM/ODM design and manufacturing services for Inclinometer, Electronic Compass, IMU, AHRS, GNSS/INS and Fiber Optic Gyroscope. As the company co-founder Dr. Guangyi Shi said, we will use the Accurate and Cost-effective sensors to make a greater contribution to the global society for a better IoT world.



VG125C Low-Cost CAN Dynamic Inclinometer Tiltmeter Accuracy 0.01° 2



FAQ



Q1: Accuracy definition of products

A: RMS accuracy, the accuracy of each product can be traced.Accuracy test report can be provided if required.



Q2: How to select suitable model?

A: Users should check the following points:

a. Single or dual axis?

b. Commom protocol, Modbus or CAN?

c. Dynamic or static Application scenarios?

d. Horizontal or vertical installation?





Q3: How to purchase?

A: If you want sample, please purchase on BWSENSING online shop. We accept Paypal/TT/CC.If you purchase in bulk, it is recommended to consult the sales for the best price.



Q4: How long is the warranty period?

A: One year.
