VG200 Low-Cost Digital Dynamic Inclinometer Tiltmeter

Place of Origin CHINA
Brand Name BWSENSING
Model Number VG200
Minimum Order Quantity 1 unit
Packaging Details BWSENSING BOX,Express package
Delivery Time 3-5 working days
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Dynamic Accuracy 0.5° Static Accuracy 0.01°
Resolution 0.005° Tilt Margin Pitch±90º,Role±180º
Dimension L60 X W59 X H29(mm) Communication Mode RS232/RS485/TLL
Start Delay <50ms MTBF ≥90000 Hours
High Light

Dynamic Inclinometer Tiltmeter

,

RS232 Digital Dynamic Inclinometer

,

Digital Dynamic Inclinometer

Leave a Message
Product Description

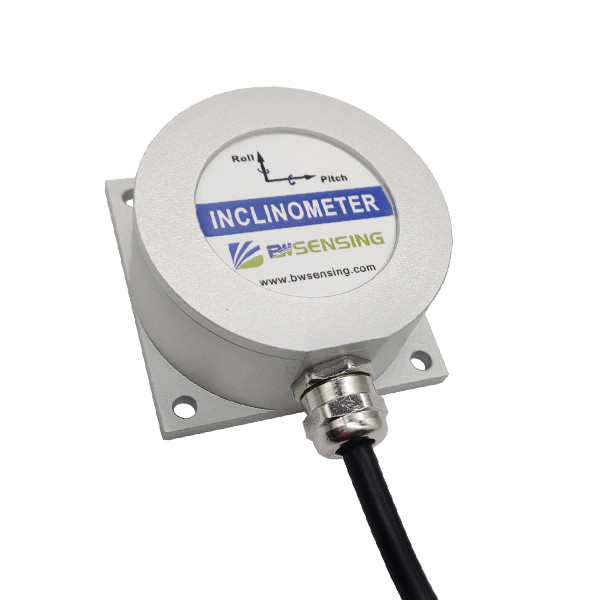

VG200 Low-Cost Digital Dynamic Inclinometer Tiltmeter



Introduction:



VG200 uses high-quality and reliable MEMS accelerometers and gyroscopes, and ensure measurement accuracy with algorithm. At the same time, the sealing design and strict process ensure that it can accurately measure the carrier's attitude parameters in harsh environments.



Application:



● ROV underwater robot navigation

● Unmanned Drive

● Marine vessels

● Construction Machinery

● Platform stability



Performance Index:







Attitude Parameter



Dynamic accuracy 0.5°
Static accuracy 0.01°
Resolution 0.005°
Tilt margin Pitch±90º,Role±180º

Physical properties

Dimension L60 x W59 x H29(mm)
Weight (with wire) 280g
Weight (With packaging) 360g

Interface characteristics

Communication mode RS232/RS485/TLL
Start delay <50ms
Maximum sampling rate frequency 100Hz
Serial communication rate

2400 to115200 bps

Digital output format Binary high-performance protocol
Trouble-free work on average ≥90000 hours
EMC According to GBT17626
Insulation Resistance ≥100 MΩ
Surge suppression 2000g,0.5ms,3 Times/axis



VG200 Low-Cost Digital Dynamic Inclinometer Tiltmeter 0

VG200 Low-Cost Digital Dynamic Inclinometer Tiltmeter 1

BWSENSING's Accuracy Traceability System:

VG200 Low-Cost Digital Dynamic Inclinometer Tiltmeter 2



Company introduction:



Wuxi Bewis Sensing Technology LLC(BWSENSING) is an innovative fast growing company established in 2010. The company was born in The Institute of Microelectronics (IME) of Peking University. We have achieved the top spot in the middle and high-end industry applications in the Chinese market.

From 2019, BWSENSING ® is approved as our global brand.With 10 years experience in the research-design-development and manufacture of a range of Inertial sensor technology, BWSENSING posses the skills, knowledge and experience to provide fully integrated OEM/ODM design and manufacturing services for Inclinometer, Electronic Compass, IMU, AHRS, GNSS/INS and Fiber Optic Gyroscope. As the company co-founder Dr. Guangyi Shi said, we will use the Accurate and Cost-effective sensors to make a greater contribution to the global society for a better IoT world.



VG200 Low-Cost Digital Dynamic Inclinometer Tiltmeter 3



FAQ



Q1: Accuracy definition of products

A: RMS accuracy, the accuracy of each product can be traced.Accuracy test report can be provided if required.



Q2: How to select suitable model?

A: Users should check the following points:

a. Single or dual axis?

b. Commom protocol, Modbus or CAN?

c. Dynamic or static Application scenarios?

d. Horizontal or vertical installation?



Q3: How to purchase?

A: If you want sample, please purchase on BWSENSING online shop. We accept Paypal/TT/CC.If you purchase in bulk, it is recommended to consult the sales for the best price.



Q4: How long is the warranty period?

A: One year.
