LoRaWAN LWHD-WM420 Long-Distance Wireless Inclinometer Accuracy 0.05°

Place of Origin CHINA
Brand Name BWSENSING
Model Number LWHD-WM420
Minimum Order Quantity 1 set
Packaging Details BWSENSING BOX,Express package
Delivery Time 5-8 working days
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Accuracy 0.05° Resolution 0.001°
Measurement Axis Dual Axis Auto-sleep Mode Support
Zero Temperature Drift(°/℃) ±0.001 Timed Wake-up Support
Mean Time Between Failure 100,000 Hours Insulation Resistance ≥100 MΩ
High Light

Long Distance Wireless Inclinometer

,

Dual axis Wireless Inclinometer

,

LoRaWAN Wireless Inclinometer

Leave a Message
Product Description

LoRaWAN LWHD-WM420 Long-distance wireless inclinometer Measurement range 0-±90° Cross-axis error 0.008°



Introduction

LoRaWAN LWHD-WM400 long-distance wireless transmission inclinometer is designed for structural health monitoring (SHM). All modules are designed with ultra-low power consumption, the sleep current is lower than 4μA, and have timed wake-up and motion detective wake-up functions. Working temperature is -40 ℃ ~ +85 ℃.



Performance index

Measuring range(°)   0~±90
Measuring axis   X-Y
Accuracy(°) At room temperature 0.05
Resolution(°) Completely stationary 0.001
Zero temperature
drift(°/℃)
-40℃〜+85℃ ±0.001
Cross-axis error(°) At room temperature 0.008
Output frequency(Hz) Up to 10 (Connect Android Phone or PC via cable), Up to 0.1 (via LoRaWAN)
Auto-sleep mode Support
Timed Wake-up Support
Movement Detected Wake-up Support
Mean Time Between Failure 100,000 hours
Electromagnetic
compatibility
Accordance to GBT17626
Insulation resistance ≥100 MΩ
Impact-resistant 2000g,0.5ms,3Times/axis
Size(mm) L109*W88*H63mm (without antenna) L109*W88*H131mm (with radome)
Weight(g) 550(±10)(with two batteries)

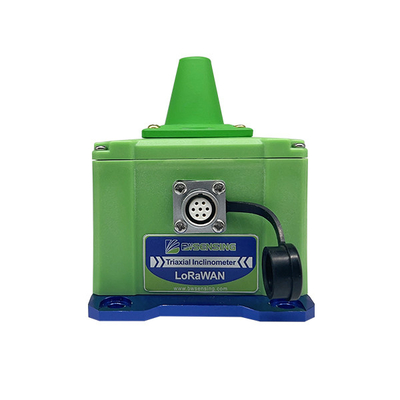

LoRaWAN LWHD-WM420 Long-Distance Wireless Inclinometer Accuracy 0.05° 0

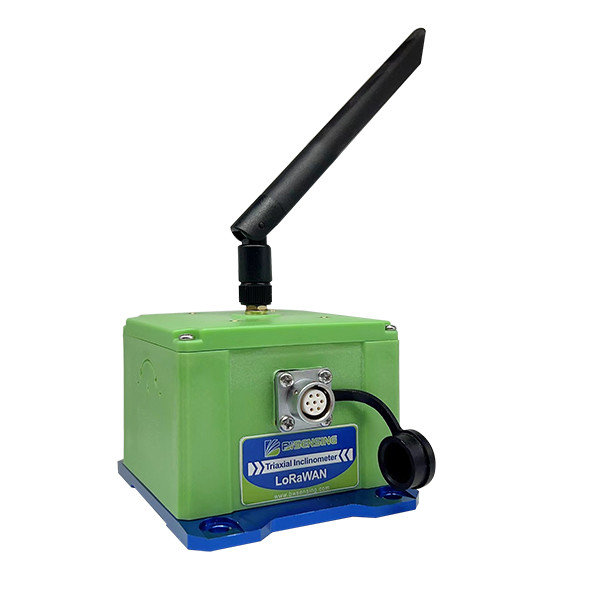

LoRaWAN LWHD-WM420 Long-Distance Wireless Inclinometer Accuracy 0.05° 1

LoRaWAN LWHD-WM420 Long-Distance Wireless Inclinometer Accuracy 0.05° 2





Application

Ancient building protection monitoring

Foundation pit monitoring

Dam monitoring

Tower tilt monitoring
