LoRaWAN LWHD-WM400 Long Distance Wireless Inclinometer Accuracy 0.005°

  • LoRaWAN LWHD-WM400 Long Distance Wireless Inclinometer Accuracy 0.005°
  • LoRaWAN LWHD-WM400 Long Distance Wireless Inclinometer Accuracy 0.005°
  • LoRaWAN LWHD-WM400 Long Distance Wireless Inclinometer Accuracy 0.005°
Place of Origin CHINA
Brand Name BWSENSING
Model Number LWHD-WM400
Minimum Order Quantity 1 set
Packaging Details BWSENSING BOX,Express package
Delivery Time 5-8 working days
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Accuracy 0.005° Resolution 0.001°
Measurement Axis Dual Axis Working Frequency 868/915/923, Etc MHz For Optional
Zero Temperature Drift(°/℃) ±0.001 Cross-axis Error(°) 0.01
Timed Wake-up Support Insulation Resistance ≥100 MΩ
High Light

Resolution 0.001° Wireless Inclinometer

,

Wireless Inclinometer Accuracy0.005°

,

Dual axis Wireless Inclinometer Long Distance
Leave a Message
Product Description

LoRaWAN LWHD-WM400 Long-distance wireless inclinometer Accuracy: 0.005° Resolution 0.001° range ±60°



Introduction

LoRaWAN LWHD-WM400 long-distance wireless transmission inclinometer is designed for structural health monitoring (SHM). It can be used for up to 10 years (In condition of sending data every hour). Data can be uploaded through the LoRaWAN G500 gateway (optional accessory) connected to TTN or Chirpstack and APP server.



Performance index

Measuring range(°)   ≤5 5~15 15~60
Measuring axis   X-Y X-Y X-Y
Accuracy(°) At room temperature 0.005 0.008 0.01
Resolution(°) Completely stationary 0.001 0.001 0.001
Zero temperature
drift(°/℃)		 -40℃〜+85℃ ±0.001 ±0.001 ±0.001
Cross-axis error(°) At room temperature 0.005 0.008 0.01
Output frequency(Hz) Up to 10 (Connect Android Phone or PC via cable), Up to 0.1 (via LoRaWAN)
Auto-sleep mode Support
Timed Wake-up Support
Movement Detected Wake-up Support
Mean Time Between Failure 100,000 hours
Electromagnetic
compatibility		 Accordance to GBT17626
Insulation resistance ≥100 MΩ
Impact-resistant 2000g,0.5ms,3Times/axis
Size(mm) L109*W88*H63mm (without antenna) L109*W88*H131mm (with radome)
Weight(g) 550(±10)(with two batteries)

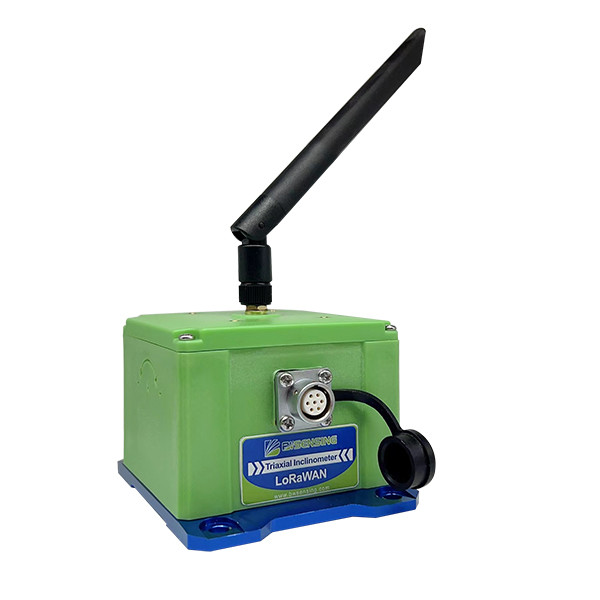

LoRaWAN LWHD-WM400 Long Distance Wireless Inclinometer Accuracy 0.005° 0

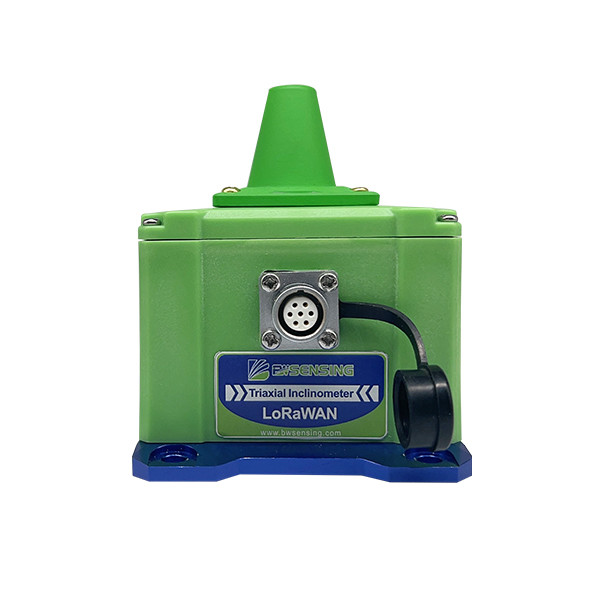

LoRaWAN LWHD-WM400 Long Distance Wireless Inclinometer Accuracy 0.005° 1



Application

Dangerous housing monitoring

Bridge tower inclination measurement

Dam monitoring

Slope disaster prevention



Company profile

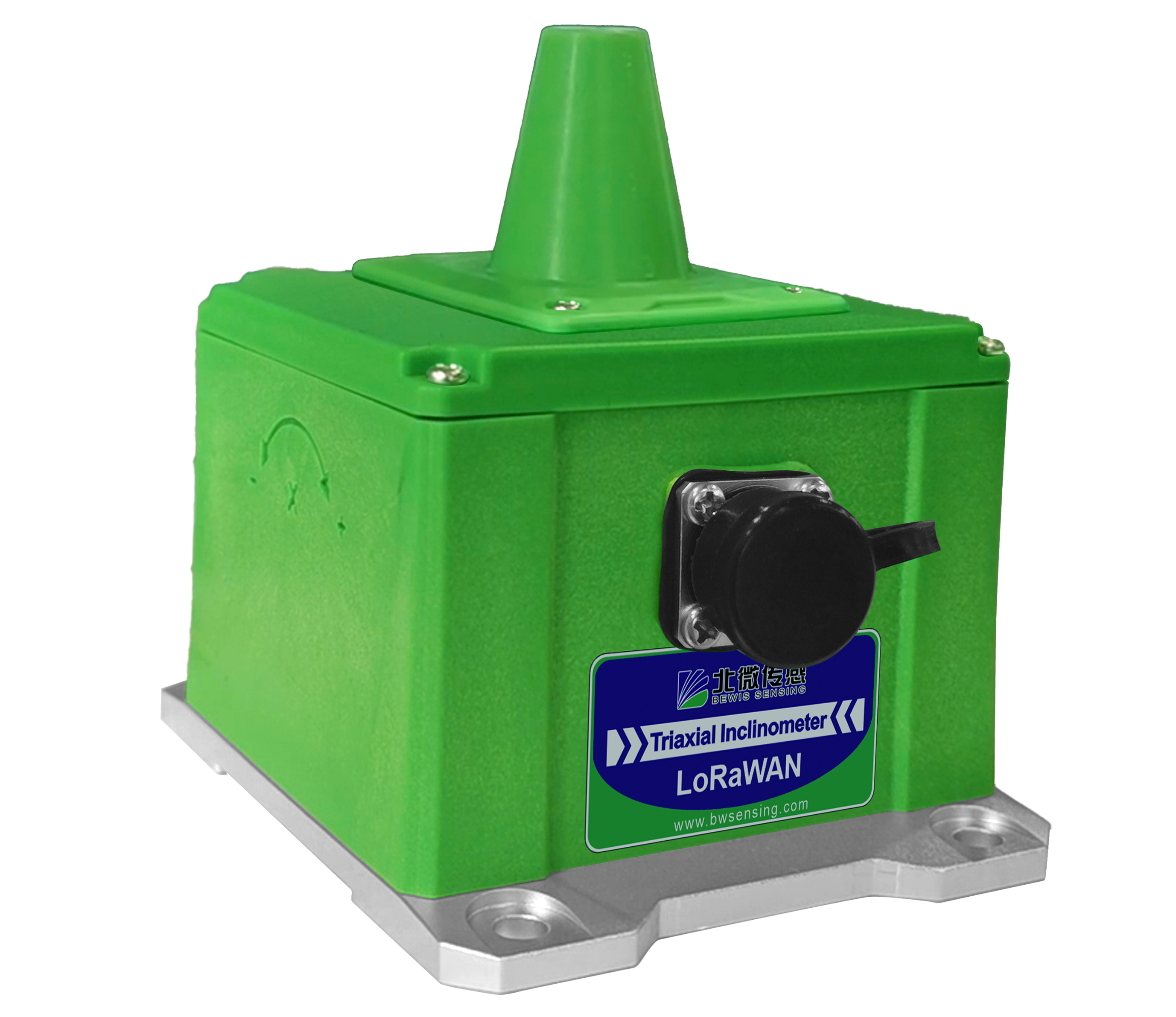

LoRaWAN LWHD-WM400 Long Distance Wireless Inclinometer Accuracy 0.005° 2
