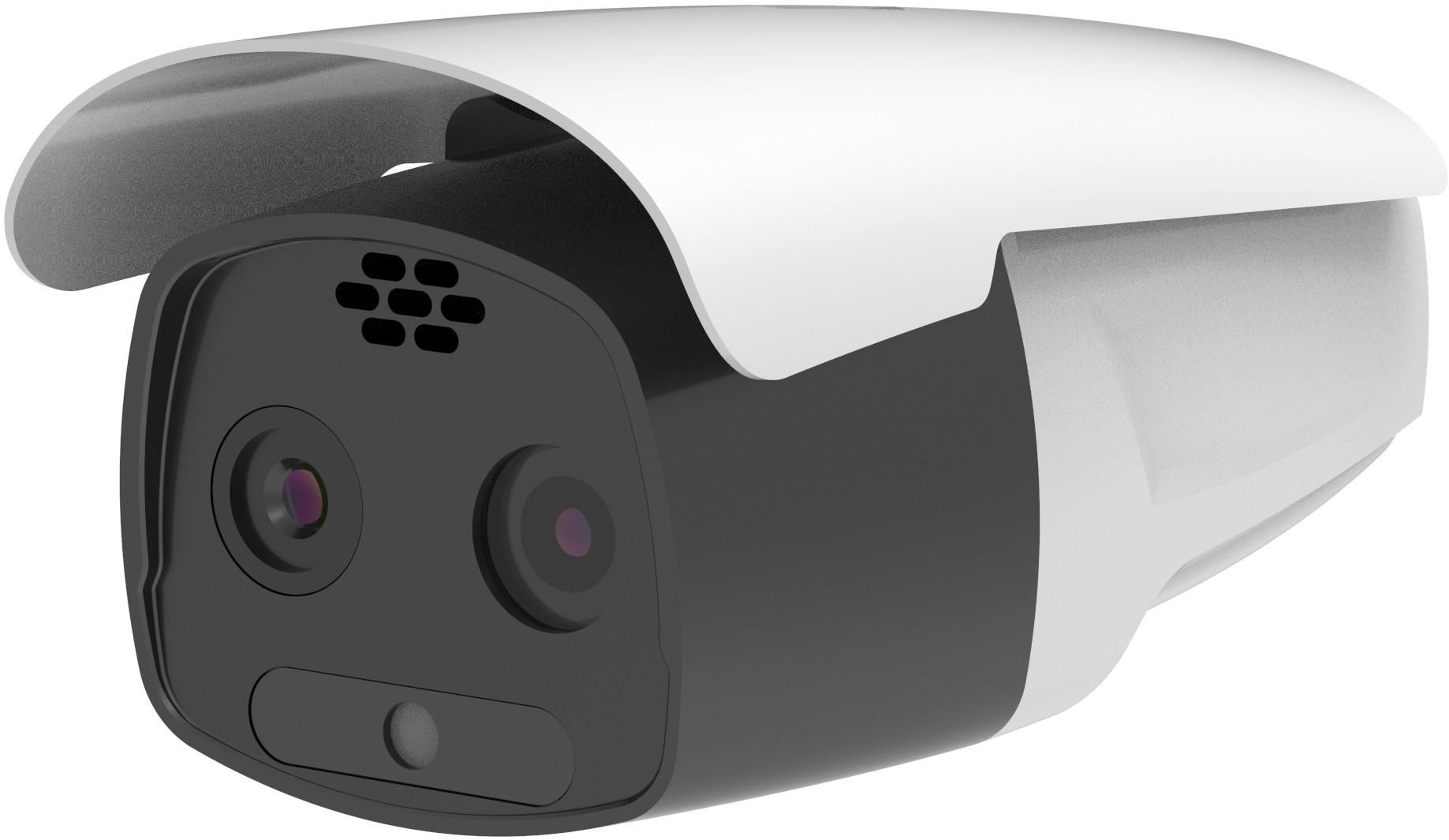

AI Thermal Imaging Dual Spectrum Camera

  • AI Thermal Imaging Dual Spectrum Camera
Place of Origin CHINA
Brand Name BWSENSING
Model Number BW-DC13P
Minimum Order Quantity 1 PCS
Price USD 800
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Detector Type Vanadium Oxide Uncooled Focal Plane Detector Image Resolution 384*288
Element Size 17μm Detector NETD ≦50mK@25℃
Response Band 8 ~14μm Waterproof Rating IP66
Leave a Message
Product Description

BW-DC series is a self-developed intelligent gain control algorithm, detail hybrid enhancement algorithm and 3D noise reduction algorithm, 10 kinds of pseudo colors, capable of fire point detection, high temperature detection, and detection of regional intrusion, crossing the boundary, and entering/leaving the area. It supports 1 line temperature measurement, 9 frame temperature measurement, 10 point temperature measurement, 2 irregular areas, 2 circular area temperature measurement, full screen highest temperature, lowest temperature positioning, etc. It supports 2 alarm inputs and 2 alarm outputs. It is used in industrial places such as the power industry, chemical disposal centers, combustible warehouses, petrochemical plants, coal mines, etc., where real-time temperature monitoring of key locations is required to prevent dangerous events.
