BWS688B-HIGH-SHOCK-RESISTANT-DEVICE-DESIGNEDPRECISE NAVIGATION, CONTROL, AND DYNAMIC MEASUREMENT OF MOVING CARRIERS
| Place of Origin | Jiangsu,China |
|---|---|
| Brand Name | BWSENSING |
| Model Number | BWS688B |
| Minimum Order Quantity | 1 PCS |
| Price | USD 5000-1000 |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Axis | 6-axis Inertial System | Data Output Rate | 200Hz-1000Hz |
|---|---|---|---|
| Gyroscope | ±450°/s Range, 1.2°/h Allan Variance Bias Stability | Accelerometer | ±18g Range, 20µg Allan Variance Bias Stability |
| Dimensions | 47mm (L) × 44mm (W) × 14mm (H) | Operating Temperature | -40°C～+85°C |
You can tick the products you need and communicate with us in the message board.
| Bias stability |
|---|
Product Description
Key Specifications
Triaxial Gyroscope: Measurement range ±450°/s
Triaxial Accelerometer: Measurement range ±18g
Triaxial Magnetometer: Measurement range ±8 gauss
Digital Barometer: Measurement range 300 mbar ~ 1100 mbar
High Bandwidth: 400Hz
Factory-Calibrated Temperature Compensation: Bias stability, linearity, and cross-axis error calibration
Temperature Compensation Range: −40°C ~ +85°C
Communication Interface: SPI
Integrated Temperature Sensor
Power Supply Range: 3.0 V ~ 3.6 V
Shock Resistance: 2000 g
Compact Design: Lightweight and miniature form factor
Compatibility: Matches ADIS16488A
Application Fields
Industrial Vibration Resistance & Attitude Control
Automated Machinery
Robotics Control
Platform Stabilization & Control
Instrumentation Systems
Product Description

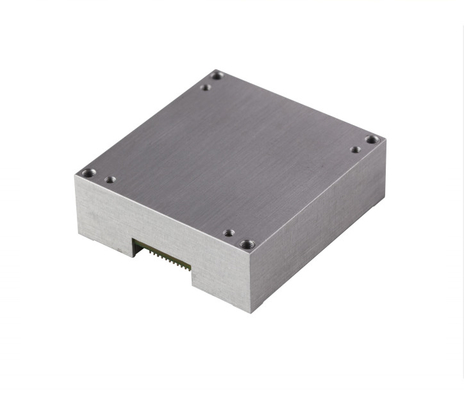

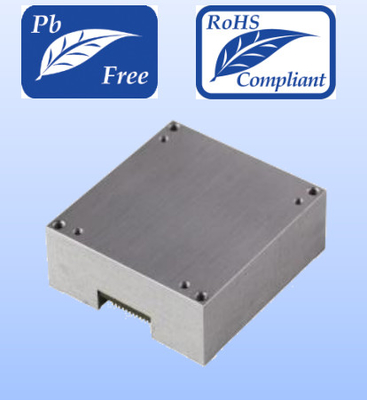

The Inertial Measurement Unit (IMU) is a compact, high-shock-resistant device designed for precise navigation, control, and dynamic measurement of moving carriers. It integrates a triaxial MEMS gyroscope and triaxial accelerometer with advanced error compensation algorithms (including temperature, installation misalignment, and nonlinear corrections). Processed data is output via a customizable SPI interface, while built-in sensors (magnetometer, barometer) enable comprehensive environmental sensing
.
Core Features:
High-Precision Sensors
Gyroscope: ±450°/s range, 1.2°/h Allan variance bias stability
Accelerometer: ±18g range, 20µg Allan variance bias stability
Magnetometer: ±8 gauss range for yaw angle accuracy
.
Robust Environmental Adaptability
Operates in −40°C to +85°C with factory-calibrated temperature compensation.
Survives 2000g shock and vibration-intensive industrial environments
.
Compact Integration
Dimensions: 47mm (L) × 44mm (W) × 14mm (H)
.
Weight: Optimized for drones, robotic arms, and portable instrumentation.
Data Output & Compatibility
SPI interface supports high-speed data streaming (up to 2000Hz).
Compatible with industrial standards
.
Competitive Advantages
Cost-Effective Industrial Solution: Balances MEMS performance with reliability for harsh conditions.
Multi-Sensor Fusion: Integrated magnetometer and barometer enable 10-axis sensing
.
Low Power Consumption: Efficient 3.0–3.6V power design extends battery life in mobile applications.
