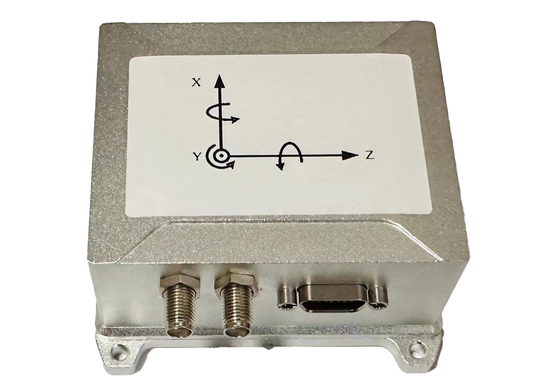

High-Precision MEMS Navigation System with GNSS/INS Fusion for Drone/UAV Autonomous Navigation

  • High-Precision MEMS Navigation System with GNSS/INS Fusion for Drone/UAV Autonomous Navigation
Place of Origin Jiangsu,China
Brand Name BWSENSING
Model Number GI V18B
Minimum Order Quantity 1 PCS
Price USD 2680
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
You can tick the products you need and communicate with us in the message board.
±20g
Leave a Message
Product Description

GI-V18B is a high-performance MEMS inertial/satellite integrated navigation system. It has a built-in triaxial

gyro, triaxial accelerometer, triaxial magnetic sensor, a pneumatic sensor, and a BD/GPS/GLONASS/GALILEO four-mode receiver. The velocity, position and attitude of the carrier can be measured, as well as the output compensated angular velocity, acceleration, magnetic course, air pressure, temperature and other information.





Feature

1.High performance, small size, light weight and low power consumption;

2.Mass production of high-performance and reliable inertial sensors;

3.-40 ° c to 60 ° c, full temperature calibration;

4.High sampling rate of 1KHz, 1KHz compensation operation, 1KHz navigation operation, 5Hz kalman filter；

5.The software, algorithm and interface protocol can be highly customized；

6.It can be connected with odometer, DVL, vision and radar for integrated navigation
