LoRaWAN LWHD WM410 Long Distance Wireless Inclinometer Accuracy 0.01°

  • LoRaWAN LWHD WM410 Long Distance Wireless Inclinometer Accuracy 0.01°
  • LoRaWAN LWHD WM410 Long Distance Wireless Inclinometer Accuracy 0.01°
  • LoRaWAN LWHD WM410 Long Distance Wireless Inclinometer Accuracy 0.01°
Place of Origin CHINA
Brand Name BWSENSING
Model Number LWHD-WM410
Minimum Order Quantity 1 set
Packaging Details BWSENSING BOX,Express package
Delivery Time 5-8 working days
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Accuracy 0.01° Resolution 0.001°
Output Frequency（Hz） Up To 10 (Connect Android Phone Or PC Via Cable), Up To 0.1 (via LoRaWAN) Electromagnetic Compatibility Accordance To GBT17626
Zero Temperature Drift(°/℃) ±0.001 Cross-axis Error(°) 0.01
Timed Wake-up Support Weight（g） 550（±10）(with Two Batteries)
High Light

Dual Axis Inclination Wireless Inclinometer

,

3Times/axis Wireless Inclinometer

,

LWHD WM410 Wireless Inclinometer
Leave a Message
Product Description

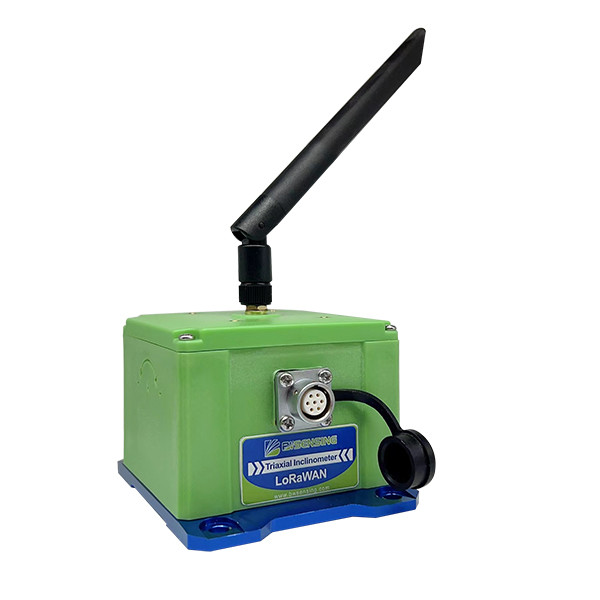

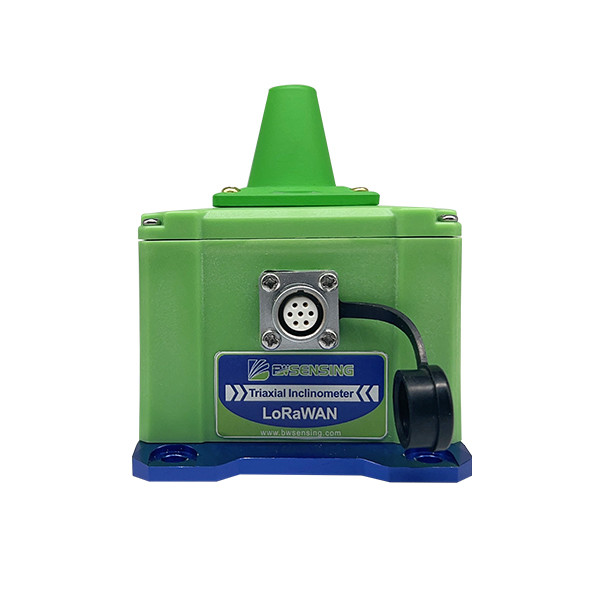

LoRaWAN LWHD-WM410 Long-Distance Wireless Inclinometer Dual Axis Inclination Measurement Range ±90°



Introduction



All modules are designed with ultra-low power consumption, the sleep current is lower than 4μA, and have timed wake-up and motion detective wake-up functions. Working temperature is -40 ℃ ～ +85 ℃.



Performance index

Measuring range(°)   0-±90
Measuring axis   X-Y
Accuracy(°) At room temperature 0.01
Resolution(°) Completely stationary 0.001
Zero temperature
drift(°/℃)		 -40℃〜+85℃ ±0.001
Cross-axis error(°) At room temperature 0.01
Output frequency(Hz) Up to 10 (Connect Android Phone or PC via cable), Up to 0.1 (via LoRaWAN)
Auto-sleep mode Support
Timed Wake-up Support
Movement Detected Wake-up Support
Mean Time Between Failure 100,000 hours
Electromagnetic
compatibility		 Accordance to GBT17626
Insulation resistance ≥100 MΩ
Impact-resistant 2000g,0.5ms,3Times/axis
Size(mm) L109*W88*H63mm (without antenna) L109*W88*H131mm (with radome)
Weight(g) 550(±10)(with two batteries)







LoRaWAN LWHD WM410 Long Distance Wireless Inclinometer Accuracy 0.01° 0



LoRaWAN LWHD WM410 Long Distance Wireless Inclinometer Accuracy 0.01° 1



Application

Dangerous housing monitoring

Bridge tower inclination measurement

Dam monitoring

Slope disaster prevention



Company profile

LoRaWAN LWHD WM410 Long Distance Wireless Inclinometer Accuracy 0.01° 2
