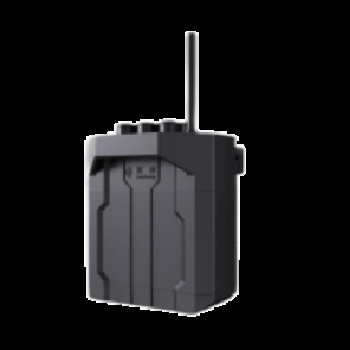

Blue Water Sentry Remote intelligent monitoring terminal BW-LSSB2
| Place of Origin | CHINA |
|---|---|
| Brand Name | BEWIS |
| Model Number | LC-LSSB2 |
| Minimum Order Quantity | 1 |
| Price | 1240 |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Leakage Rate | ≤1% | Sleep Power Consumption | ＜1mW |
|---|---|---|---|
| Sending Power Consumption | ＜150mW | Sensor Acquisition Power Consumption | ＜400mW |
| Working Temperature | -20~70℃ | Storage Temperature | -40~85℃ |
| Protection Level | IP68 | Size | 150×370×97mm |
Product Description
At present, environmental monitoring mainly focuses on river sections and lakes, and can only reflect the result data of river and lake water quality. There is a lack of analysis of pollution sources, making it difficult to trace. However, the urban pipeline network is intricate and complex, with prominent mixing of rain and sewage. Data on pipeline distribution, flow direction, liquid level, water quality, status, and number of connected drainage households are not visible, making it difficult to locate the cause and source of pollution.
This product can be used for monitoring urban drainage networks and river and lake outlets, playing a key role in the intelligent management of urban water bodies. The product can also serve as an intelligent control acquisition device, intelligent gateway, etc., expanding its application fields.
| Technical Parameter | Wireless transmission | NBIoT or 4G | |
| Leakage rate | ≤1% | ||
| Sleep power consumption | ＜1mW | ||
| Sending power consumption | ＜150mW | ||
| Sensor acquisition power consumption | ＜400mW | ||
| Battery working time | Under normal working mode ≥ 3 years | ||
| Collection interval | 1.5.10.30.60.360.720.1440 minutes can be set | ||
| Sending interval | 1.5.10.30.60.360.720.1440 minutes can be set | ||
| Working temperature | -20~70℃ | ||
| Storage temperature | -40~85℃ | ||
| Environmental humidity | 0~100% | ||
| Protection level | IP68 | ||
| Explosion proof level | Ex ia IIC T4 Ga | ||
| Size | 150×370×97mm | ||
| Weight | 3kg | ||
| Power supply voltage | 12-16.8VDC | ||
| Working power | ＜3.6W | ||
| Standby power | ＜0.1W |
