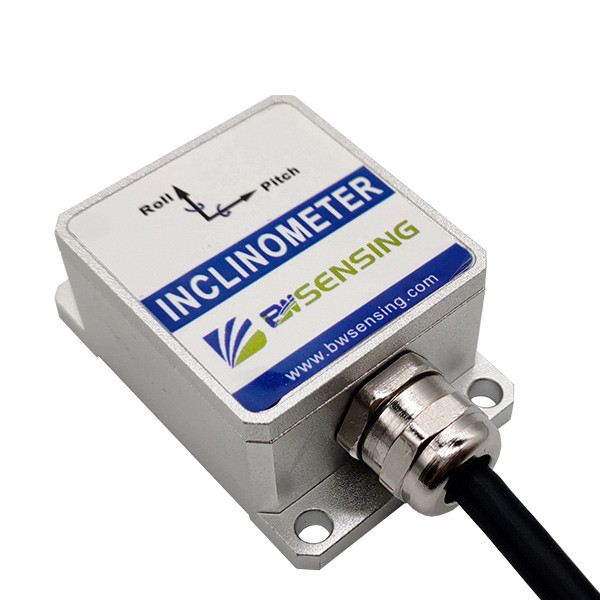

BW - VG225 Low Cost High Performance CAN BUS Dynamic Inclinometer Tiltmeter

Place of Origin CHINA
Brand Name BWSENSING
Model Number BW-VG225
Minimum Order Quantity 1 unit
Packaging Details BWSENSING BOX,Express package
Delivery Time 3-5 working days
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Dynamic Inclinometer Working Current 30mA(40mA Max)
Dynamic Accuracy 0.5° Static Accuracy 0.01°
Dimension L60 X W59 X H29(mm) MTBF ≥90000 Hours
Insulation Resistance ≥100MΩ Protection Level IP67
High Light

0.01 accuracy Dynamic Inclinometer

,

High Performance Dynamic Inclinometer

,

100M analog devices inclinometer

Leave a Message
Product Description

BW-VG225 Low-Cost CAN BUS Dynamic Inclinometer High-Performance



Introduction:



BW-VG225 is suitable for engineering machinery, unmanned driving, platform stability and other fields. It is a high-performance and low-cost inertial measurement equipment, which can measure the attitude parameters of moving carrier. It adopts MEMS accelerometer and gyroscope with high quality and reliability. Through various compensations such as nonlinear compensation, temperature compensation and drift compensation, it can greatly eliminate the error caused by interference and improve the product accuracy.


Performance Index:





Attitude Parameter



Dynamic accuracy 0.5°
Static accuracy 0.01°
Resolution 0.01°
Tilt margin Pitch±90º,Role±180º

Physical properties

Dimension L60 x W59 x H29(mm)
Weight (with wire) 280g
Weight (With packaging) 360g

Interface characteristics

Start delay <50ms
Maximum sampling rate frequency 100Hz
Serial communication rate

2400 to 115200 bps

Digital output format Binary high-performance protocol
Trouble-free work on average ≥90000 hours
EMC According to GBT17626
Insulation Resistance ≥100MΩ
Surge suppression 2000g,0.5ms,3 Times/axis










Application:



● Construction Machinery

● Platform stability

● Agricultural machinery

● ROV underwater robot navigation

● Unmanned Drive

● Robot


BWSENSING's Accuracy Traceability System:



BW - VG225 Low Cost High Performance CAN BUS Dynamic Inclinometer Tiltmeter 0

Company introduction

Wuxi Bewis Sensing Technology LLC(BWSENSING) is an innovative fast growing company established in 2010. The company was born in The Institute of Microelectronics (IME) of Peking University. We have achieved the top spot in the middle and high-end industry applications in the Chinese market.

From 2019, BWSENSING ® is approved as our global brand.With 10 years experience in the research-design-development and manufacture of a range of Inertial sensor technology, BWSENSING posses the skills, knowledge and experience to provide fully integrated OEM/ODM design and manufacturing services for Inclinometer, Electronic Compass, IMU, AHRS, GNSS/INS and Fiber Optic Gyroscope. As the company co-founder Dr. Guangyi Shi said, we will use the Accurate and Cost-effective sensors to make a greater contribution to the global society for a better IoT world.



BW - VG225 Low Cost High Performance CAN BUS Dynamic Inclinometer Tiltmeter 1



FAQ



Q1: Accuracy definition of products

A: RMS accuracy, the accuracy of each product can be traced.Accuracy test report can be provided if required.



Q2: How to select suitable model?

A: Users should check the following points:

a. Single or dual axis?

b. Commom protocol, Modbus or CAN?

c. Dynamic or static Application scenarios?

d. Horizontal or vertical installation?







Q3: How to purchase?

A: If you want sample, please purchase on BWSENSING online shop. We accept Paypal/TT/CC.If you purchase in bulk, it is recommended to consult the sales for the best price.



Q4: How long is the warranty period?

A: One year.



Q5: Fast troubleshooting for CAN products that cannot communicate

1. Firstly, the sensor's power supply voltage is determined according to the label of the sensor, and the output mode is wired according to the corresponding interface mode, and the corresponding protocol is used;

2. Use a multimeter to check the power supply voltage to ensure that the power supply is normal;

3. Configure the serial port parameters for communication, set the correct product address (normal protocol factory default 00, Modbus protocol factory default 01), select the correct baud rate (default 9600), open the computer device manager to confirm that the COM port number is selected correctly.
