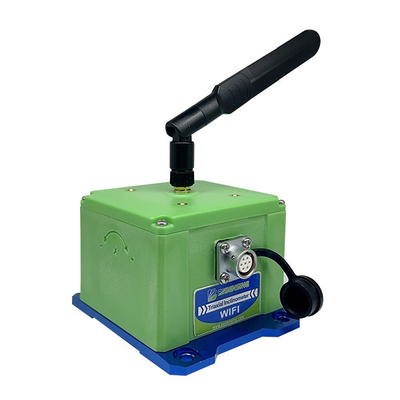

WF-WK100 High-Speed Small-Size Wireless Inclinometer Tiltmeter Accuracy 0.5°

  • WF-WK100 High-Speed Small-Size Wireless Inclinometer Tiltmeter Accuracy 0.5°
  • WF-WK100 High-Speed Small-Size Wireless Inclinometer Tiltmeter Accuracy 0.5°
Place of Origin CHINA
Brand Name BWSENSING
Model Number WF-WK100
Minimum Order Quantity 1 unit
Packaging Details BWSENSING BOX,Express package
Delivery Time 3-5 working days
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Wireless Transmission Inclinometer Connector Aviation Connector
Protection Level IP67 Measurement Range ±90°
MTBF ≥90000 H Insulation Resistance ≥100 MΩ
Dimension L109*W65*H53 Mm Weight About 640（±10）g
High Light

IP67 digital tilt sensor

,

digital tilt sensor Accuracy 0.5

,

dynamic inclinometer Resolution 0.02
Leave a Message
Product Description

WF-WK100 High-Speed Small-Size Wireless Transmission Inclinometer Accuracy: 0.5°



Introduction:



WF-WK100 is a miniaturized intelligent digital tilt sensor designed specifically for structural health monitoring, which can meet the needs of high precision and high frequency monitoring. It has remote control and management functions, and can transmit data to the cloud by connecting to the wireless router. The sensitive mechanism adopts the latest technology and the inclination unit of MEMS production process, which has the advantages of small volume, low power consumption, high consistency and stability.



Performance Index:



Measurement range Condition ±90 °
Measurement axis Mutually perpendicular X-Y
Accuracy Room temperature 0.5 °
Resolution   0.02 °
Zero temperature drift -40～85℃ ±0.02 °/℃
Cross axis error 25℃ 0.5 °
Output frequency   Up to 50 Hz

Mean No Failure

Working hours MTBF

 ≥90000 h
Electromagnetic compatibility According to GBT17626
Insulation resistance ≥100 MΩ
Impact resistance 2000g,0.5ms,3times/axis
Dimensions L109*W65*H53 mm
Weight About 640(±10)g



WF-WK100 High-Speed Small-Size Wireless Inclinometer Tiltmeter Accuracy 0.5° 0

WF-WK100 High-Speed Small-Size Wireless Inclinometer Tiltmeter Accuracy 0.5° 1



Application:



● Slope disaster prevention

● Tunnel monitoring

● Foundation pit inclinometer

● Tower tilt monitoring

● Dam monitoring



BWSENSING's Accuracy Traceability System:



WF-WK100 High-Speed Small-Size Wireless Inclinometer Tiltmeter Accuracy 0.5° 2



Company introduction

Wuxi Bewis Sensing Technology LLC(BWSENSING) is an innovative fast growing company established in 2010. The company was born in The Institute of Microelectronics (IME) of Peking University. We have achieved the top spot in the middle and high-end industry applications in the Chinese market.

From 2019, BWSENSING ® is approved as our global brand.With 10 years experience in the research-design-development and manufacture of a range of Inertial sensor technology, BWSENSING posses the skills, knowledge and experience to provide fully integrated OEM/ODM design and manufacturing services for Inclinometer, Electronic Compass, IMU, AHRS, GNSS/INS and Fiber Optic Gyroscope. As the company co-founder Dr. Guangyi Shi said, we will use the Accurate and Cost-effective sensors to make a greater contribution to the global society for a better IoT world.



WF-WK100 High-Speed Small-Size Wireless Inclinometer Tiltmeter Accuracy 0.5° 3



FAQ



Q1: Accuracy definition of products

A: RMS accuracy, the accuracy of each product can be traced.Accuracy test report can be provided if required.



Q2: How to select suitable model?

A: Users should check the following points:

a. Single or dual axis?

b. Commom protocol, Modbus or CAN?

c. Dynamic or static Application scenarios?

d. Horizontal or vertical installation?





Q3: How to purchase?

A: If you want sample, please purchase on BWSENSING online shop. We accept Paypal/TT/CC.If you purchase in bulk, it is recommended to consult the sales for the best price.



Q4: How long is the warranty period?

A: One year.
