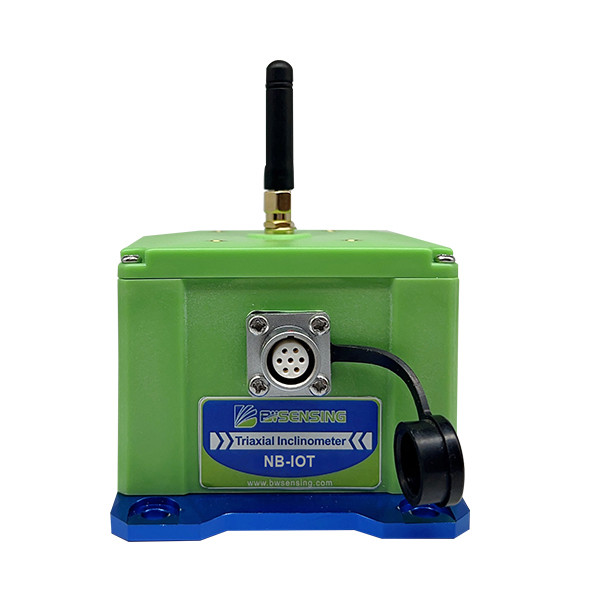

NB-WL300 Cost-Effective Wireless Inclinometer Tiltmeter Resolution 0.01° Accuracy 0.1°

  • NB-WL300 Cost-Effective Wireless Inclinometer Tiltmeter Resolution 0.01° Accuracy 0.1°
  • NB-WL300 Cost-Effective Wireless Inclinometer Tiltmeter Resolution 0.01° Accuracy 0.1°
Place of Origin CHINA
Brand Name BWSENSING
Model Number NB-WL300
Minimum Order Quantity 1 unit
Packaging Details BWSENSING BOX,Express package
Delivery Time 3-5 working days
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Wireless Inclinometer Protection Level IP67
Accuracy(°) 0.1 Resolution(°) 0.01
Zero Temperature Drift (°/℃) ±0.01 Cross Axis Error (°) 0.1
Size L109*W65*H53 Mm Electromagnetic Compatibility According To GBT17626
High Light

mini digital inclinometer Resolution 0.01

,

mini digital inclinometer Accuracy 0.1

,

IP67 precision digital inclinometer
Leave a Message
Product Description

NB-WL300 Cost-Effective Wireless Inclinometer Resolution: 0.01° Accuracy:0.1° Dangerous Building/Bridge Monitoring



Introduction:

NB-WL300 is applicable to dangerous building monitoring, ancient building monitoring, slope disaster prevention and other fields, and meets the needs of remote real-time monitoring and analysis. The product has built-in high-performance rechargeable lithium battery. All internal circuits have been optimized and designed to automatically enter the low-power sleep mode. The acquisition frequency can be set by the user, with the maximum accuracy of 0.5 °. It also has very excellent long-term stability and zero drift, which is very popular with customers.



Performance Index:



Measurement range(°) Condition ±90
Measurement axis Mutually perpendicular X-Y
Accuracy(°) Room temperature 0.1
Resolution(°)   0.01
Zero temperature drift (°/℃) -40～85℃ ±0.01
Cross axis error (°) 25℃ 0.1
Automatic sleep mode Support
Timed wake up Support
Exercise wake Support
Mean time between failures MTBF ≥90000 h
Electromagnetic compatibility According to GBT17626
Insulation resistance ≥100 MΩ
Impact resistance 2000g,0.5ms,3 times/axis
Dimension L109*W65*H53 mm
Weight About 500(±10)g



NB-WL300 Cost-Effective Wireless Inclinometer Tiltmeter Resolution 0.01° Accuracy 0.1° 0

NB-WL300 Cost-Effective Wireless Inclinometer Tiltmeter Resolution 0.01° Accuracy 0.1° 1



Application:



● Ancient building protection monitoring

● Bridge tower inclination measurement

● Dam monitoring

● Tower tilt monitoring



BWSENSING's Accuracy Traceability System:



NB-WL300 Cost-Effective Wireless Inclinometer Tiltmeter Resolution 0.01° Accuracy 0.1° 2





Company introduction

Wuxi Bewis Sensing Technology LLC(BWSENSING) is an innovative fast growing company established in 2010. The company was born in The Institute of Microelectronics (IME) of Peking University. We have achieved the top spot in the middle and high-end industry applications in the Chinese market.

From 2019, BWSENSING ® is approved as our global brand.With 10 years experience in the research-design-development and manufacture of a range of Inertial sensor technology, BWSENSING posses the skills, knowledge and experience to provide fully integrated OEM/ODM design and manufacturing services for Inclinometer, Electronic Compass, IMU, AHRS, GNSS/INS and Fiber Optic Gyroscope. As the company co-founder Dr. Guangyi Shi said, we will use the Accurate and Cost-effective sensors to make a greater contribution to the global society for a better IoT world.



NB-WL300 Cost-Effective Wireless Inclinometer Tiltmeter Resolution 0.01° Accuracy 0.1° 3



FAQ



Q1: Accuracy definition of products

A: RMS accuracy, the accuracy of each product can be traced.Accuracy test report can be provided if required.



Q2: How to select suitable model?

A: Users should check the following points:

a. Single or dual axis?

b. Commom protocol, Modbus or CAN?

c. Dynamic or static Application scenarios?

d. Horizontal or vertical installation?





Q3: How to purchase?

A: If you want sample, please purchase on BWSENSING online shop. We accept Paypal/TT/CC.If you purchase in bulk, it is recommended to consult the sales for the best price.



Q4: How long is the warranty period?

A: One year.
