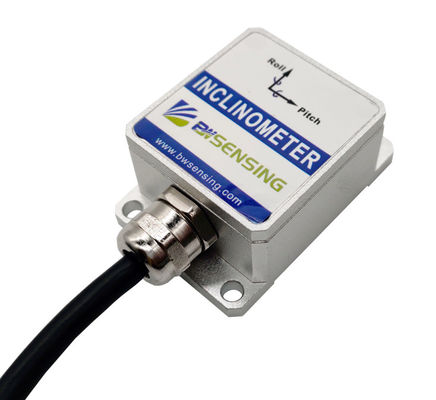

VG50 Low-Cost Digital Dynamic Inclinometer Tiltmeter RS232/485/TTL/CAN Optional

  • VG50 Low-Cost Digital Dynamic Inclinometer Tiltmeter RS232/485/TTL/CAN Optional
  • VG50 Low-Cost Digital Dynamic Inclinometer Tiltmeter RS232/485/TTL/CAN Optional
Place of Origin CHINA
Brand Name BWSENSING
Model Number VG50
Minimum Order Quantity 1 unit
Packaging Details BWSENSING BOX,Express package
Delivery Time 3-5 working days
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Dynamic Accuracy 3° Static Accuracy 0.3°
Resolution 0.01° Tilt Margin Pitch±90º，Roll±180º
Working Temperature -40~85℃ MTBF ≥90000 H
Impact Resistance 2000g Protection Level IP 67
High Light

TTL dual axis tilt sensor

,

CAN dual axis tilt sensor

,

130g electrical engineering measuring instruments
Leave a Message
Product Description

VG50 Low-cost Digital Dynamic Inclinometer RS232/485/TTL/CAN Optional Dynamic And Static Measurement



Introduction:

Vg50 is a low-cost attitude measurement equipment, which is suitable for inertial attitude parameter measurement of moving carrier. It adopts MEMS accelerometer and gyroscope with high quality and reliability.High-performance Kalman filter algorithm is built in it to ensure accuracy.Through nonlinear compensation, quadrature compensation, temperature compensation and drift compensation, the error caused by interference can be greatly eliminated.



Performance Index:

Attitude Parameter

 Dynamic accuracy 3°
Static accuracy 0.3°
Resolution 0.01°
Tilt margin Pitch±90º,Role±180º

Physical properties

 Dimension L55 x W37 x H24(mm)
Weight (with wire) 130g
Weight (With packaging) 210g

Interface characteristics

 Start delay <50ms
Maximum sampling rate frequency 100Hz
Serial communication rate

2400 to115200 bps


Digital output format Binary high-performance protocol
Trouble-free work on average ≥90000 hours
EMC According to GBT17626
Insulation Resistance ≥100 MΩ
Surge suppression

2000g,0.5ms,3 Time/shaft





VG50 Low-Cost Digital Dynamic Inclinometer Tiltmeter RS232/485/TTL/CAN Optional 0

Application:



● Marine vessels

● Construction Machinery

● Platform stability

● Agricultural machinery

● ROV underwater robot navigation

● Unmanned Drive

● Robot

● Unmanned Craft



BWSENSING's Accuracy Traceability System:

VG50 Low-Cost Digital Dynamic Inclinometer Tiltmeter RS232/485/TTL/CAN Optional 1



Company introduction

Wuxi Bewis Sensing Technology LLC(BWSENSING) is an innovative fast growing company established in 2010. The company was born in The Institute of Microelectronics (IME) of Peking University. We have achieved the top spot in the middle and high-end industry applications in the Chinese market.

From 2019, BWSENSING ® is approved as our global brand.With 10 years experience in the research-design-development and manufacture of a range of Inertial sensor technology, BWSENSING posses the skills, knowledge and experience to provide fully integrated OEM/ODM design and manufacturing services for Inclinometer, Electronic Compass, IMU, AHRS, GNSS/INS and Fiber Optic Gyroscope. As the company co-founder Dr. Guangyi Shi said, we will use the Accurate and Cost-effective sensors to make a greater contribution to the global society for a better IoT world.



VG50 Low-Cost Digital Dynamic Inclinometer Tiltmeter RS232/485/TTL/CAN Optional 2



FAQ



Q1: Accuracy definition of products

A: RMS accuracy, the accuracy of each product can be traced.Accuracy test report can be provided if required.



Q2: How to select suitable model?

A: Users should check the following points:

a. Single or dual axis?

b. Commom protocol, Modbus or CAN?

c. Dynamic or static Application scenarios?

d. Horizontal or vertical installation?





Q3: How to purchase?

A: If you want sample, please purchase on BWSENSING online shop. We accept Paypal/TT/CC.If you purchase in bulk, it is recommended to consult the sales for the best price.



Q4: How long is the warranty period?

A: One year.
