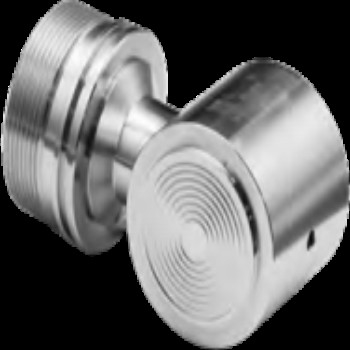

BW-DKS-DP600-M2 PA Grade High Static Pressure Monocrystalline Silicon Differential Pressure Sensors

  • BW-DKS-DP600-M2 PA Grade High Static Pressure Monocrystalline Silicon Differential Pressure Sensors
  • BW-DKS-DP600-M2 PA Grade High Static Pressure Monocrystalline Silicon Differential Pressure Sensors
  • BW-DKS-DP600-M2 PA Grade High Static Pressure Monocrystalline Silicon Differential Pressure Sensors
Place of Origin China
Brand Name BEWIS
Model Number BW-DKS-DP600-M2
Minimum Order Quantity 1
Price $93
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Range 100kPa Unilateral Overvoltage 25MPa
Bilateral Static Pressure 40MPa Response Time 10ms
Long-term Stability ≤ 0.03％ FS/ Year Output Signal 14mV/V
Working Temperature -40~85°C Nonlinear ≤ 0.16％ FS
Temperature Coefficient ≤ 0.1%FS/10K
Leave a Message
Product Description

BW-DKS-DP600 Differential Pressure Sensor adopts monocrystalline silicon sensor chip made of German advanced MEMS technology, and the world's original monocrystalline silicon double-beam suspension design, which achieves the international leading over-pressure performance and ensures the excellent stability of the signal. Embedded with the intelligent original imported pressure measuring diaphragm and signal processing module, it realises the perfect combination of static pressure and temperature compensation, which can provide high measurement accuracy and stability under a wide range of static pressure and temperature.
BW-DKS-DP600 Differential Pressure Sensor is a pressure sensor that acts directly on the diaphragm of the sensor, causing the diaphragm to produce a micro-displacement proportional to the pressure, detecting this change with an integrated electronic circuit and converting the output to a standard measurement signal corresponding to the pressure.

Product Dimensions



■ Differential pressure sensor with M45 housing connection ■ Differential pressure sensor with G55 housing connection
BW-DKS-DP600-M2 PA Grade High Static Pressure Monocrystalline Silicon Differential Pressure Sensors 0
Process connection scheme
BW-DKS-DP600-M2 PA Grade High Static Pressure Monocrystalline Silicon Differential Pressure Sensors 1

ModelSpecification codeClarification
BW-DKS-DP600 PA Grade Monocrystalline Silicon Differential Pressure Sensors



Range

(Capsule)


S2 ··········································

M1 ··········································

M2 ··········································

M4 ··········································

L1 ··········································



-6kPa~6kPa

-40kPa~40kPa

-100KPa~100KPa

-400kPa~400kPa

-3MPa~3MPa

Shell connection thread

N00 ······································

M45 ······································

G55 ······································

M56 ······································

No

M45*1.5 Thread

G55*16 Thread

M56*1.5 Thread


Isolation diaphragm

SS ··································

HC ··································

TA ··································

GD ··································

SUS 316L

Hastelloy C-276

Tantalum

SUS 316L Gilt

Filler fluid

S ·································

F · ································

O ·································

Silicone oil

Fluorine oil

Vegetable oil

Clamping block seal

FS ···························

DS ···························

TS ···························

Fluorine rubber

Nitrile rubber

Polytetrafluoroethylene

Additional optionsPlease contact sales
