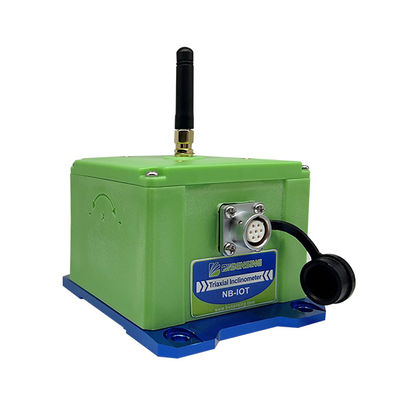

NB-WK100 Low-Cost Wireless Inclinometer Tiltmeter Accuracy 0.5°

  • NB-WK100 Low-Cost Wireless Inclinometer Tiltmeter Accuracy 0.5°
  • NB-WK100 Low-Cost Wireless Inclinometer Tiltmeter Accuracy 0.5°
Place of Origin CHINA
Brand Name BWSENSING
Model Number NB-WK100
Minimum Order Quantity 1 unit
Packaging Details BWSENSING BOX,Express package
Delivery Time 3-5 working days
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Wireless Inclinometer Measurement Range(°) ±90
Measurement Axis X-Y Accuracy(°) 0.5
Resolution(°) 0.02 Zero Temperature Drift (°/℃) ±0.05
Cross Axis Error (°) 0.5 Insulation Resistance ≥100 MΩ
High Light

high precision inclinometer sensor

,

90C high precision inclinometer sensor

,

Accuracy 0.5 electrical test and measurement equipment
Leave a Message
Product Description



NB-WK100 Low-cost Wireless Inclinometer



Introduction:

It is suitable for remote real-time monitoring and analysis of physical characteristics such as uneven settlement and inclined deformation of the foundation of dangerous old houses, ancient buildings, towers and other structures. NB lot and GSM network modes are supported. The Internet of things (nbot band) can be used to assess the risk of large data upload to the Internet of things (nbot band) through the Internet of things (nbot band) structure to avoid the risk of large data.



Performance Index:



Measurement range(°) Condition ±90
Measurement axis Mutually perpendicular X-Y
Accuracy(°) Room temperature 0.5
Resolution(°)   0.02
Zero temperature drift (°/℃) -40～85℃ ±0.05
Cross axis error (°) 25℃ 0.5
Automatic sleep mode Support
Timed wake up Support
Exercise wake Support
Mean time between failures MTBF ≥90000 h
Electromagnetic compatibility According to GBT17626
Insulation resistance ≥100 MΩ
Impact resistance 2000g,0.5ms,3 times/axis
Dimension L109*W65*H53 mm
Weight About 500(±10)g



NB-WK100 Low-Cost Wireless Inclinometer Tiltmeter Accuracy 0.5° 0

NB-WK100 Low-Cost Wireless Inclinometer Tiltmeter Accuracy 0.5° 1



Application:



● Ancient building protection monitoring

● Foundation pit inclinometer

● Tower tilt monitoring

● Dangerous housing monitoring

● Bridge tower inclination measurement

● Slope disaster prevention



BWSENSING's Accuracy Traceability System:

NB-WK100 Low-Cost Wireless Inclinometer Tiltmeter Accuracy 0.5° 2

Company introduction

Wuxi Bewis Sensing Technology LLC(BWSENSING) is an innovative fast growing company established in 2010. The company was born in The Institute of Microelectronics (IME) of Peking University. We have achieved the top spot in the middle and high-end industry applications in the Chinese market.

From 2019, BWSENSING ® is approved as our global brand.With 10 years experience in the research-design-development and manufacture of a range of Inertial sensor technology, BWSENSING posses the skills, knowledge and experience to provide fully integrated OEM/ODM design and manufacturing services for Inclinometer, Electronic Compass, IMU, AHRS, GNSS/INS and Fiber Optic Gyroscope. As the company co-founder Dr. Guangyi Shi said, we will use the Accurate and Cost-effective sensors to make a greater contribution to the global society for a better IoT world.



NB-WK100 Low-Cost Wireless Inclinometer Tiltmeter Accuracy 0.5° 3



FAQ



Q1: Accuracy definition of products

A: RMS accuracy, the accuracy of each product can be traced.Accuracy test report can be provided if required.



Q2: How to select suitable model?

A: Users should check the following points:

a. Single or dual axis?

b. Commom protocol, Modbus or CAN?

c. Dynamic or static Application scenarios?

d. Horizontal or vertical installation?





Q3: How to purchase?

A: If you want sample, please purchase on BWSENSING online shop. We accept Paypal/TT/CC.If you purchase in bulk, it is recommended to consult the sales for the best price.



Q4: How long is the warranty period?

A: One year.
