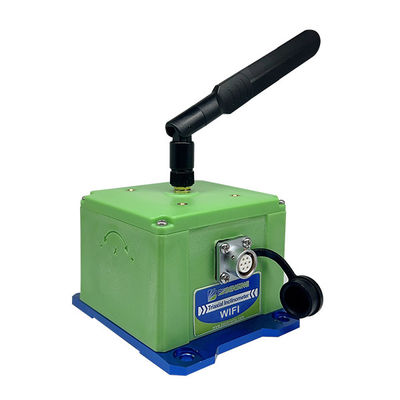

WF-WM410 High-Speed Small-Size Wireless Inclinometer Tiltmeter

  • WF-WM410 High-Speed Small-Size Wireless Inclinometer Tiltmeter
Place of Origin CHINA
Brand Name BWSENSING
Model Number WF-WM410
Minimum Order Quantity 1 unit
Packaging Details BWSENSING BOX,Express package
Delivery Time 3-5 working days
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Wireless Transmission Inclinometer Protection Level IP65
Zero Temperature Drift ±0.001°/℃ MTBF ≥90000 H
Insulation Resistance ≥100 MΩ Impact Resistance 2000g，0.5ms，3 Times/axis
Dimension L109*W65*H53 Mm Output Frequency Up To 50Hz
Highlight

IP65 Wireless Inclinometer

,

Wireless Inclinometer Resolution 0.001

,

dual axis high precision digital inclinometer
Leave a Message
Product Description

WF-WM410 High-Speed Small-Size Wireless Transmission Inclinometer Resolution 0.001° Tower Tilt Monitoring



Introduction:

The sensitive mechanism adopts the latest technology and the inclination unit of MEMS production process, which has the advantages of small volume, low power consumption, high consistency and stability. Due to the digital inclination sensing module, the linearity is easier to be corrected The working temperature reaches the industrial level - 25 ℃ ~ + 85 ℃. In terms of network connection, it has the function of automatic disconnection and reconnection, which can effectively avoid problems caused by network abnormalities, server maintenance and other factors.



Performance Index:



Measurement range Condition ±90 °
Measurement axis Mutually perpendicular X-Y
Accuracy Room temperature 0.01 °
Resolution   0.001 °
Zero temperature drift -40～85℃ ±0.001 °/℃
Cross axis error 25℃ 0.01 °
Output frequency   Up to 50 Hz

Mean No Failure

Working hours MTBF

 ≥90000 h
Electromagnetic compatibility According to GBT17626
Insulation resistance ≥100 MΩ
Impact resistance 2000g,0.5ms,3 times/axis
Dimension L109*W65*H53 mm
Weight About 640(±10)g

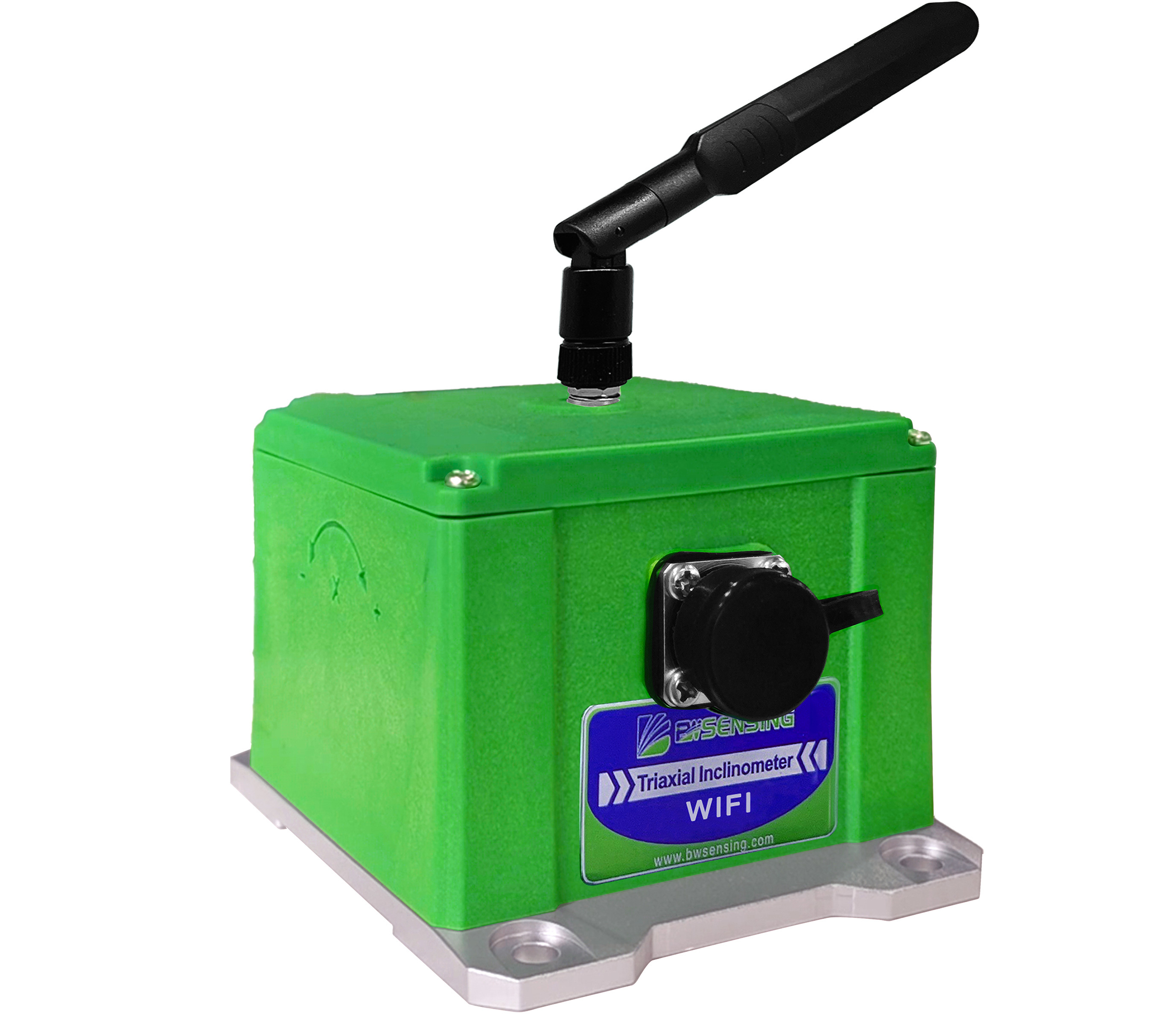

WF-WM410 High-Speed Small-Size Wireless Inclinometer Tiltmeter 0

WF-WM410 High-Speed Small-Size Wireless Inclinometer Tiltmeter 1



Application:



● Tunnel monitoring

● Foundation pit inclinometer

● Dam monitoring

● Bridge tower inclination measurement

● Slope disaster prevention



BWSENSING's Accuracy Traceability System:

WF-WM410 High-Speed Small-Size Wireless Inclinometer Tiltmeter 2



Company introduction

Wuxi Bewis Sensing Technology LLC(BWSENSING) is an innovative fast growing company established in 2010. The company was born in The Institute of Microelectronics (IME) of Peking University. We have achieved the top spot in the middle and high-end industry applications in the Chinese market.

From 2019, BWSENSING ® is approved as our global brand.With 10 years experience in the research-design-development and manufacture of a range of Inertial sensor technology, BWSENSING posses the skills, knowledge and experience to provide fully integrated OEM/ODM design and manufacturing services for Inclinometer, Electronic Compass, IMU, AHRS, GNSS/INS and Fiber Optic Gyroscope. As the company co-founder Dr. Guangyi Shi said, we will use the Accurate and Cost-effective sensors to make a greater contribution to the global society for a better IoT world.



WF-WM410 High-Speed Small-Size Wireless Inclinometer Tiltmeter 3



FAQ



Q1: Accuracy definition of products

A: RMS accuracy, the accuracy of each product can be traced.Accuracy test report can be provided if required.



Q2: How to select suitable model?

A: Users should check the following points:

a. Single or dual axis?

b. Commom protocol, Modbus or CAN?

c. Dynamic or static Application scenarios?

d. Horizontal or vertical installation?





Q3: How to purchase?

A: If you want sample, please purchase on BWSENSING online shop. We accept Paypal/TT/CC.If you purchase in bulk, it is recommended to consult the sales for the best price.



Q4: How long is the warranty period?

A: One year.
