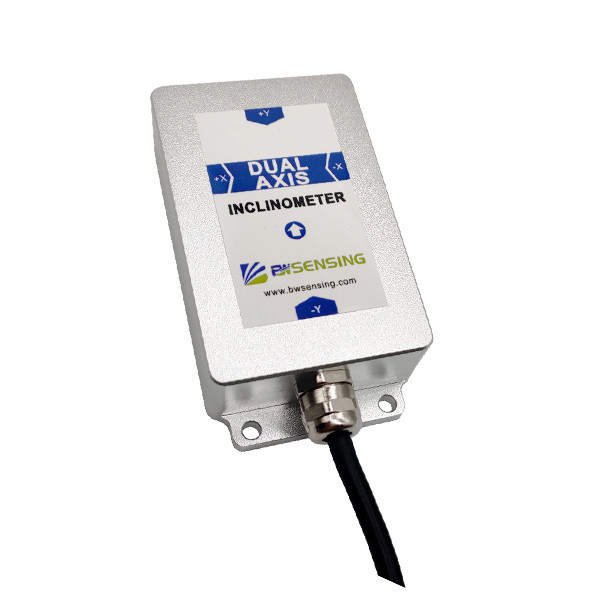

LIS342 Relay Output Dual Axis Tilt Switch Relay Switch Cost-Effective

Place of Origin CHINA
Model Number LIS342
Minimum Order Quantity 1 unit
Packaging Details BWSENSING BOX,Express package
Delivery Time 3-5 working days
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Name Tilt Switch Sensor Protect Level IP67
Accuracy(°) 0.1(<±80);0.2(±80-±90) Zero Temperature Drift(°/℃) ±0.01
Frequency Response (Hz) 100 Operating Temperature(℃) 40(DC12V)
Power Voltage(V) 9-35 Resolution(°) 0.01
High Light

DC12V high accuracy tilt sensor


high accuracy tilt sensor Accuracy 0.1


Platform Leveling precision inclinometer sensor

Leave a Message
Product Description

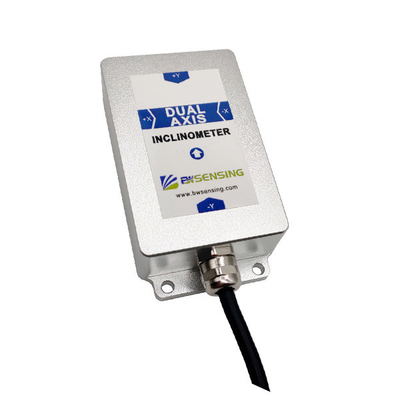

LIS342 Cost-Effective Relay Output Dual Axis Tilt Switch High-Stability




LIS342 is a dual axis tilt switch with high cost performance, high resolution and high anti vibration performance. It is suitable for hydraulic lifting platform, aerial work vehicle, wire tower pole monitoring, etc. The working temperature reaches the industrial level of - 40 ℃ - 85 ℃, with high consistency and stability. The alarm threshold can be set according to the actual situation of the user. When the measured inclination is greater than the alarm threshold, the output line becomes closed (or disconnected).

Performance Index:




LIS342 Relay Output Dual Axis Tilt Switch Relay Switch Cost-Effective 0



● High voltage power line tower monitoring

● Aerial work vehicle

● Cloud platform leveling

● Hydraulic lift table

BWSENSING's Accuracy Traceability System:

LIS342 Relay Output Dual Axis Tilt Switch Relay Switch Cost-Effective 1


Company introduction

Wuxi Bewis Sensing Technology LLC(BWSENSING) is an innovative fast growing company established in 2010. The company was born in The Institute of Microelectronics (IME) of Peking University. We have achieved the top spot in the middle and high-end industry applications in the Chinese market.

From 2019, BWSENSING ® is approved as our global brand.With 10 years experience in the research-design-development and manufacture of a range of Inertial sensor technology, BWSENSING posses the skills, knowledge and experience to provide fully integrated OEM/ODM design and manufacturing services for Inclinometer, Electronic Compass, IMU, AHRS, GNSS/INS and Fiber Optic Gyroscope. As the company co-founder Dr. Guangyi Shi said, we will use the Accurate and Cost-effective sensors to make a greater contribution to the global society for a better IoT world.


LIS342 Relay Output Dual Axis Tilt Switch Relay Switch Cost-Effective 2




Q1: Accuracy definition of products

A: RMS accuracy, the accuracy of each product can be traced.Accuracy test report can be provided if required.


Q2: How to select suitable model?

A: Users should check the following points:

a. Single or dual axis?

b. Commom protocol, Modbus or CAN?

c. Dynamic or static Application scenarios?

d. Horizontal or vertical installation?



Q3: How to purchase?

A: If you want sample, please purchase on BWSENSING online shop. We accept Paypal/TT/CC.If you purchase in bulk, it is recommended to consult the sales for the best price.


Q4: How long is the warranty period?

A: One year.


Q5: Tilt switch-how to change alarm angle?

A: User-defined settings can be made on the Beiwei host computer with RS232-USB through the reserved RS232 wire harness.
