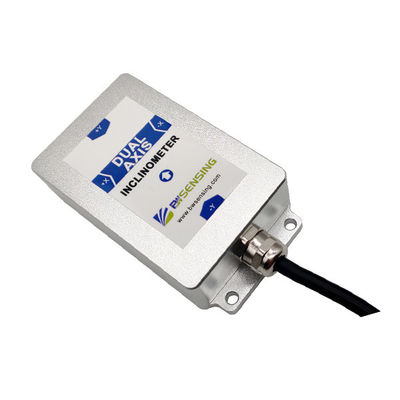

DIS344 High-Consistency Dual-Axis Voltage Output Tilt Switch Relay Switch

Place of Origin CHINA
Brand Name BWSENSING
Model Number DIS344
Minimum Order Quantity 1 unit
Packaging Details BWSENSING BOX,Express package
Delivery Time 3-5 working days
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Tilt Switch Sensor Protect Level IP67
Installation Four M4 Screws Accuracy(°) Dynamic 2°/ Static 0.1°
Zero Temperature Drift(°/℃) ±0.01 Response Frequency (Hz) 100
Operating Temperature(℃) -40-85 Power Voltage(V) 9-35
High Light

IP67 High Consistency Tilt Switch Sensor

,

Tilt Switch Sensor accuracy 2 deg

,

dual axis digital inclinometer 35V

Leave a Message
Product Description

DIS344 High-Consistency Dual-Axis Voltage Output Tilt Switch



Introduction:



Two way alarm output, four wire / single wire optional, high cost performance, high resolution, high vibration resistance, high consistency and stability. It is suitable for aerial work vehicles, electric wire tower pole monitoring, hydraulic lifting platform, etc. The working temperature reaches the industrial level of - 40 ℃ - 85 ℃, with high consistency and stability. The alarm threshold can be set according to the actual situation of the user. When the measured inclination is greater than the alarm threshold, the output line becomes closed (or disconnected).


Performance Index:



Parameter Condition DIS342
Measurement Range(°)   ±90
Accuracy(°)   Dynamic 2°/ Static 0.1°
Measurement axis   X,Y
Alarm axis   X,Y
Zero temperature drift(°/℃) -40~85℃ ±0.01
Response frequency (Hz)   100
Communication cable   9-core cable, single 0.15mm²
Weight (g)   About 220(Cable 1.5m,without package)



Parameter Condition Min Typ Max
Power voltage(V)   9 12 35
Working current(mA) Horizontal no-load   80
NC maximum current (mA)     100
Operating temperature(℃)   -40   85
Storage temperature(℃)   -55   100



DIS344 High-Consistency Dual-Axis Voltage Output Tilt Switch Relay Switch 0

DIS344 High-Consistency Dual-Axis Voltage Output Tilt Switch Relay Switch 1


Application:



● High voltage power line tower monitoring

● Aerial work vehicle

● Cloud platform leveling

● Hydraulic lift table


BWSENSING's Accuracy Traceability System:



DIS344 High-Consistency Dual-Axis Voltage Output Tilt Switch Relay Switch 2





Company introduction

Wuxi Bewis Sensing Technology LLC(BWSENSING) is an innovative fast growing company established in 2010. The company was born in The Institute of Microelectronics (IME) of Peking University. We have achieved the top spot in the middle and high-end industry applications in the Chinese market.

From 2019, BWSENSING ® is approved as our global brand.With 10 years experience in the research-design-development and manufacture of a range of Inertial sensor technology, BWSENSING posses the skills, knowledge and experience to provide fully integrated OEM/ODM design and manufacturing services for Inclinometer, Electronic Compass, IMU, AHRS, GNSS/INS and Fiber Optic Gyroscope. As the company co-founder Dr. Guangyi Shi said, we will use the Accurate and Cost-effective sensors to make a greater contribution to the global society for a better IoT world.



DIS344 High-Consistency Dual-Axis Voltage Output Tilt Switch Relay Switch 3



FAQ



Q1: Accuracy definition of products

A: RMS accuracy, the accuracy of each product can be traced.Accuracy test report can be provided if required.



Q2: How to select suitable model?

A: Users should check the following points:

a. Single or dual axis?

b. Commom protocol, Modbus or CAN?

c. Dynamic or static Application scenarios?

d. Horizontal or vertical installation?



Q3: How to purchase?



A: If you want sample, please purchase on BWSENSING online shop. We accept Paypal/TT/CC.If you purchase in bulk, it is recommended to consult the sales for the best price.



Q4: How long is the warranty period?

A: One year.



Q5: Tilt switch-how to change alarm angle?

A: User-defined settings can be made on the Beiwei host computer with RS232-USB through the reserved RS232 wire harness.
