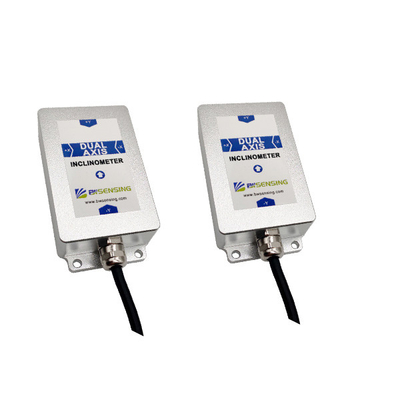

DIS341 Cost-Effective Dual-Axis Voltage Output Tilt Switch Relay Switch

  • DIS341 Cost-Effective Dual-Axis Voltage Output Tilt Switch Relay Switch
Place of Origin CHINA
Brand Name BWSENSING
Model Number DIS341
Minimum Order Quantity 1 unit
Packaging Details BWSENSING BOX,Express package
Delivery Time 3-5 working days
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Tilt Switch Sensor Accuracy（°） Dynamic 2°/ Static 0.1°
Measurement Axis X、Y Alarm Axis X、Y
Response Frequency (Hz） 100 Communication Cable 9-core Cable, Single 0.15mm²
Protect Level IP67 Installation Four M4 Screws
High Light

Dual Axis high precision tilt sensor

,

IP67 high precision tilt sensor

,

Hydraulic Lift Table digital tilt sensor
Leave a Message
Product Description

DIS341 Cost-Effective Dual-Axis Voltage Output Tilt Switch



Introduction:



DIS341 is suitable for pan tilt leveling, hydraulic lifting platform, aerial work vehicle and other fields. It is a dual axis tilt switch with small volume and high cost performance. The working temperature reaches the industrial level of - 40 ℃ - 85 ℃, with high consistency and stability. The alarm threshold can be set according to the actual situation of the user. When the measured inclination is greater than the alarm threshold, the output line becomes closed (or disconnected). Built in solid-state relay, users do not need to configure it separately.


Performance Index:



Parameter Condition DIS341
Measurement Range(°)   ±90
Accuracy(°)   Dynamic 2°/ Static 0.1°
Measurement axis   X,Y
Alarm axis   X,Y
Zero temperature drift(°/℃) -40~85℃ ±0.01
Response frequency (Hz)   100
Communication cable   9-core cable, single 0.15mm²
Weight (g)   About 220(cable 1.5m,without package)





DIS341 Cost-Effective Dual-Axis Voltage Output Tilt Switch Relay Switch 0


Application:



● Cloud platform leveling

● Tilt-based

● Hydraulic lift table

● Aerial work vehicle


BWSENSING's Accuracy Traceability System:

DIS341 Cost-Effective Dual-Axis Voltage Output Tilt Switch Relay Switch 1



Company introduction

Wuxi Bewis Sensing Technology LLC(BWSENSING) is an innovative fast growing company established in 2010. The company was born in The Institute of Microelectronics (IME) of Peking University. We have achieved the top spot in the middle and high-end industry applications in the Chinese market.

From 2019, BWSENSING ® is approved as our global brand.With 10 years experience in the research-design-development and manufacture of a range of Inertial sensor technology, BWSENSING posses the skills, knowledge and experience to provide fully integrated OEM/ODM design and manufacturing services for Inclinometer, Electronic Compass, IMU, AHRS, GNSS/INS and Fiber Optic Gyroscope. As the company co-founder Dr. Guangyi Shi said, we will use the Accurate and Cost-effective sensors to make a greater contribution to the global society for a better IoT world.



DIS341 Cost-Effective Dual-Axis Voltage Output Tilt Switch Relay Switch 2



FAQ



Q1: Accuracy definition of products

A: RMS accuracy, the accuracy of each product can be traced.Accuracy test report can be provided if required.



Q2: How to select suitable model?

A: Users should check the following points:

a. Single or dual axis?

b. Commom protocol, Modbus or CAN?

c. Dynamic or static Application scenarios?

d. Horizontal or vertical installation?



Q3: How to purchase?



A: If you want sample, please purchase on BWSENSING online shop. We accept Paypal/TT/CC.If you purchase in bulk, it is recommended to consult the sales for the best price.



Q4: How long is the warranty period?

A: One year.



Q5: Tilt switch-how to change alarm angle?

A: User-defined settings can be made on the Beiwei host computer with RS232-USB through the reserved RS232 wire harness.
