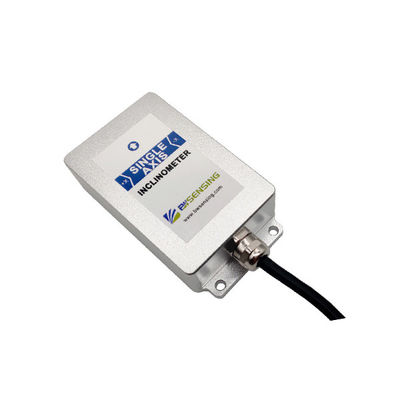

DIS332 Single-Axis Relay Output Tilt Switch Relay Switch

  • DIS332 Single-Axis Relay Output Tilt Switch Relay Switch
Place of Origin CHINA
Brand Name BWSENSING
Model Number DIS332
Minimum Order Quantity 1 unit
Packaging Details BWSENSING BOX,Express package
Delivery Time 3-5 working days
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Tilt Switch Sensor Power Voltage(V) 9-35
Measurement Range（°） ±180 Accuracy（°） Dynamic 2°/ Static 0.1°
Alarm Axis X Measurement Axis X
Communication Cable 9-core Cable, Single 0.15mm² Response Frequency (Hz） 100
High Light

single axis Tilt Switch Sensor

,

Tilt Switch Sensor Accuracy Dynamic 2

,

high precision inclinometer sensor Rohs
Leave a Message
Product Description

DIS332 Single-Axis Relay Output Tilt Switch



Introduction:



DIS332 is a cost-effective tilt switch. The measurement range is ± 180 °. When the measured inclination is greater than the alarm threshold, the output line becomes closed (or disconnected). The alarm threshold can be set according to the actual situation of the user. Built in solid-state relay, users do not need to configure the relay. The product has small volume, high consistency and stability, and the working temperature reaches the industrial level - 40 ℃ - 85 ℃.


Performance Index:



DIS332 Single-Axis Relay Output Tilt Switch Relay Switch 0



DIS332 Single-Axis Relay Output Tilt Switch Relay Switch 1


Application:



● Hydraulic lift table

● High voltage power line tower monitoring

● Aerial work vehicle

● Cloud platform leveling

● Tilt-based


BWSENSING's Accuracy Traceability System:



DIS332 Single-Axis Relay Output Tilt Switch Relay Switch 2



Company introduction



Wuxi Bewis Sensing Technology LLC(BWSENSING) is an innovative fast growing company established in 2010. The company was born in The Institute of Microelectronics (IME) of Peking University. We have achieved the top spot in the middle and high-end industry applications in the Chinese market.

From 2019, BWSENSING ® is approved as our global brand.With 10 years experience in the research-design-development and manufacture of a range of Inertial sensor technology, BWSENSING posses the skills, knowledge and experience to provide fully integrated OEM/ODM design and manufacturing services for Inclinometer, Electronic Compass, IMU, AHRS, GNSS/INS and Fiber Optic Gyroscope. As the company co-founder Dr. Guangyi Shi said, we will use the Accurate and Cost-effective sensors to make a greater contribution to the global society for a better IoT world.



DIS332 Single-Axis Relay Output Tilt Switch Relay Switch 3



FAQ



Q1: Accuracy definition of products

A: RMS accuracy, the accuracy of each product can be traced.Accuracy test report can be provided if required.



Q2: How to select suitable model?

A: Users should check the following points:

a. Single or dual axis?

b. Commom protocol, Modbus or CAN?

c. Dynamic or static Application scenarios?

d. Horizontal or vertical installation?





Q3: How to purchase?

A: If you want sample, please purchase on BWSENSING online shop. We accept Paypal/TT/CC.If you purchase in bulk, it is recommended to consult the sales for the best price.



Q4: How long is the warranty period?

A: One year.



Q5: Tilt switch-how to change alarm angle?

A: User-defined settings can be made on the Beiwei host computer with RS232-USB through the reserved RS232 wire harness.
