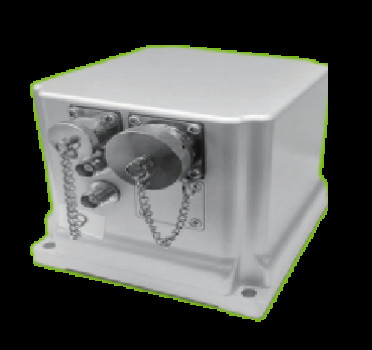

GI820 High-precision optical fiber integrated navigation system

Place of Origin CHINA
Brand Name BEWIS
Model Number GI820
Minimum Order Quantity 1
Price USD 18170
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
North Seeking Accuracy(deg) ≤2.5*Secant Latitude Azimuth Accuracy(deg) ≤0.05
Attitude Angle Accuracy(deg ≤0.05 Speed Accuracy(m/s) ≤0.03
Size(mm) 145x121.5x125 Weight(kg) ≤2.6kg
Operating Temperature(℃) -40~+65 Storage Temperature(℃) -50~+80
Leave a Message
Product Description

GI820 High-precision optical fiber integrated navigation system 0



BW-GI820 is a miniaturized fiber optic compact combination differential measurement system developed by BWSENSING. It can be customized according to customer's needs to realize the function of the controlled carrier traveling automatically according to the required trajectory. It can measure the carrier's speed, position, attitude, and output the compensated angular rate, acceleration and other information. With the advantages of all-solid-state, long life; large dynamic range, high bandwidth; instantaneous start, etc., it can widely meet the application requirements in the fields of unmanned aerial vehicle, vehicle navigation, aviation and platform stabilization and control, motion in the pass, high-end AGV, underwater ROV, AUV, and so on.

The product can support a variety of sensors such as GNSS / odometer / DVL / barometric altimeter according to the use of demand, with excellent expandability, through the use of multi-sensor data fusion technology will be inertial measurements and satellite navigation, odometer information and other information combined, can make the system adaptability and robustness of the geographical region has been greatly improved.BW-GI820 combined navigation system using tight coupling technology will be high precision, professional-grade, multi-channel, dual-antenna single-frequency carrier phase and pseudo-range GPS receiver and high-precision fiber optic inertial measurement unit are tightly combined, featuring small size, light weight and high performance.


● Space stabilization platform, antenna system stabilization

● Attitude/orientation reference system, multi-beam attitude sensing

● Unmanned vehicle, unmanned aircraft, unmanned ship navigation and control

● Spatial stabilization platform, intelligent control of mining roadheaders and coal excavators

● Automatic farming, container tracking
