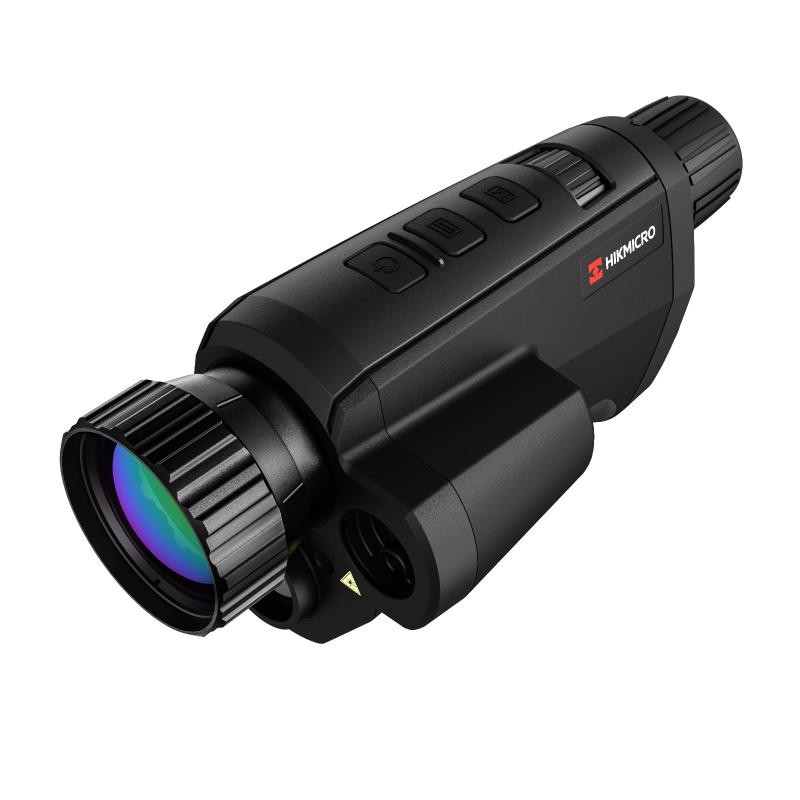

Monocular Outdoor Observation

  • Monocular Outdoor Observation
Place of Origin CHINA
Brand Name BWSENSING
Model Number Monocular Outdoor Observation
Minimum Order Quantity 1
Delivery Time 30 work days
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Leave a Message
Product Description
echnical Specifications

system parameter
Maximum Image Size 640 × 512
Thermal imaging lens focal length 50 mm
Detection distance 2000 m
field of view 8.78° × 7.03°
distance measurement be in favor of
endurance 4.5h of continuous operation when the ambient temperature reaches 25 ℃ and Wi-Fi, CVBS, and visible light functions are turned off.
operating temperature -30~55 ℃
protection class IP67
sizes ≤87.2 mm × 73.3 mm × 183.6 mm

Functional characteristics
Thermal Imaging Movement Features Resolution 640 x 512, high sensitivity detector, supports contrast adjustment
Support 3D noise reduction function, image detail enhancement function
Lens 50mm
Visible light movement function Use of low-light detectors
Resolution 1920 x 1080
display function Features a 0.39-inch OLED display
Resolution 1024 x 768
Supports thermal/visible/dual-optical fusion images
power system Supports removable battery
4.5h of continuous operation when the ambient temperature reaches 25 ℃ and Wi-Fi, CVBS, and visible light functions are turned off.
system function Wi-Fi hotspot support
Built-in EMMC v5.1 interface high-speed storage (up to 16 GB), supports photo/video recording
Supports digital amplification
Supports laser indication
Supports high-precision laser distance measurement
Supports TPYE-C interface
Support wheel knob




Product Advantages
Areas of application
Suitable for search and rescue, fire residual fire detection, environmental protection exhaust gas detection and other business applications, for the user to enhance the equipment configuration and the ability to detect the target in various environments, to solve the problem of the relevant departments to take pictures to obtain evidence.
