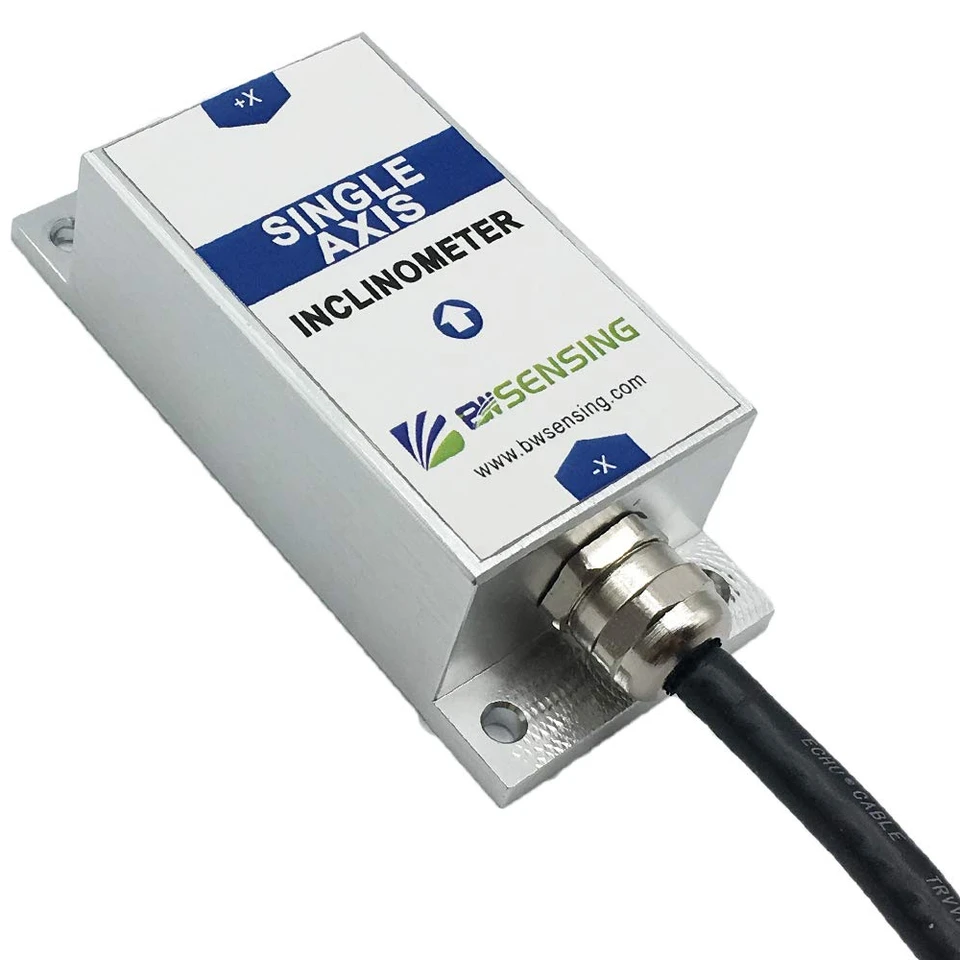

Versatile Analog Inclination Sensor For Industrial Automation - 0.02° Resolution

Product Description:

The Analog Inclinometer Sensor is a tilt angle measurer designed to measure the inclination angle of the surface accurately and reliably. It is a reliable and robust tool for monitoring the tilt of objects and surfaces. The sensor has a resolution of 0.02° and an accuracy of ±0.2°. It is made of ABS material and has an analog interface. The operating temperature range is from -20°C to +85°C which makes it suitable for a wide range of applications. It is a great choice for those who need to accurately measure the angle of tilt to monitor the stability of objects and surface in various industries. With the help of this inclinometer angle sensor, users can accurately measure the angle of tilt and easily monitor the stability of objects and surfaces.

Features:

• Product Name: Analog Inclinometer Sensor
• Size: 90mm X 40mm X 26mm
• Accuracy: ±0.2°
• Operating Temperature: -40°C To +85°C
• Resolution: 0.02°
• Type: Analog Tilt Sensor
• Function: Inclinometer Angle Sensor

Technical Parameters:

Applications:

BWK210 is a low-cost single-axis inclinometer with current output developed and produced by Bewis Sensing. It uses a mature industrial-grade MEMS accelerometer, with a measurement range of ±90°, the highest accuracy of 0.2°, and an operating temperature of -40°C~ +85. ℃. This product is small in size and light in weight, which can meet the application requirements with limited space. It converts the change of the static gravity field into the change of the inclination angle, and directly outputs the horizontal inclination value through the current mode. It has the advantages of low cost, small temperature drift, simple use, and strong anti-interference ability. It is an ideal choice of photovoltaic power generation, pan-tilt control, tower monitoring and other industries inclination measurement!

Packing and Shipping:

An analog inclinometer sensor is a device for measuring the angle of an inclined surface in relation to a horizontal plane. To ensure safe delivery, the sensor should be well-packaged to protect it from damage during shipping.

The packaging for the analog inclinometer sensor should include the following materials:

• A box or envelope to contain the sensor
• Bubble wrap or foam padding for extra protection
• A cushioning material such as Styrofoam peanuts
• Fragile stickers to indicate the contents need extra care
• A packing slip with the recipient's name and address

The package should also be clearly labeled with the address of the recipient and the return address of the sender. The shipping option should be chosen based on the delivery time required and the cost of the shipping method.

When shipping the analog inclinometer sensor, care should be taken to ensure that it is handled properly and that the package is securely sealed to prevent any damage during transit.

FAQ:

• Q: What is the brand name of this Analog Inclinometer Sensor?
  A: The brand name of this Analog Inclinometer Sensor is BEWIS.
• Q: What is the model number of this Analog Inclinometer Sensor?
  A: The model number of this Analog Inclinometer Sensor is BWK210.
• Q: Where is this Analog Inclinometer Sensor manufactured?
  A: This Analog Inclinometer Sensor is manufactured in China.
• Q: What is the minimum order quantity for this Analog Inclinometer Sensor?
  A: The minimum order quantity for this Analog Inclinometer Sensor is 1.
• Q: What payment terms are accepted for this Analog Inclinometer Sensor?
  A: The payment terms accepted for this Analog Inclinometer Sensor is T/T 100% in advance.
