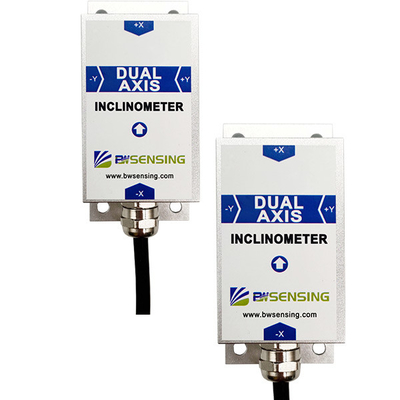

BWM468 Current Output Dual Axis Inclinometer Tiltmeter Accuracy 0.005° 4-20mA/0-20mA/0-24mA,Digital TTL

  • BWM468 Current Output Dual Axis Inclinometer Tiltmeter Accuracy 0.005° 4-20mA/0-20mA/0-24mA,Digital TTL
Place of Origin CHINA
Brand Name BWSENSING
Model Number BWM468
Minimum Order Quantity 1 unit
Packaging Details BWSENSING BOX,Express package
Delivery Time 3-5 working days
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Analog Inclinometer Power Voltage (V) 12-35
Working Current(mA) 14-30 Output Load (kΩ) 10
Output Load (nF) 20 Accuracy (°) 0.02
Resolution (°) 0.001 Zero Bias (°/℃) ±0.005
High Light

4mA Dual Axis Inclinometer

,

20mA Dual Axis Inclinometer

,

0.02 digital level and angle finder
Leave a Message
Product Description

BWM468 Current output Dual Axis Inclinometer Accuracy 0.005° 4-20mA/0-20mA/0-24mA,digital TTL output



Introduction:



BWM468 can be used in tower tilt monitoring, building deformation monitoring, medical devices and other industries. It is a cost-effective dual axis inclination sensor with MEMS technology and current output. Using high-precision MEMS accelerometer and high-resolution differential fractional analog converter, the horizontal inclination value is directly output by voltage. The utility model has the advantages of small volume, simple use, high stability and strong anti-interference ability.


Performance Index:





Measurement Range (°)

 Condition ±60
Measurement axis   X-Y
Accuracy (°) Room temperature 0.005
Resolution (°) Completely still 0.001
Zero bias (°/℃) -40~85℃ ±0.001
Start-up time   ＜3s
Output frequency (Hz) 5-100Hz adjustable Up to 100
Full range output current range 4-20mA, 0-20mA, 0-24mA (optional)
Mean time between failures MTBF

≥90000 h


Electromagnetic compatibility According to GBT17626
Insulation resistance ≥100 MΩ
Impact resistance 2000g,0.5ms,3 times/axis



BWM468 Current Output Dual Axis Inclinometer Tiltmeter Accuracy 0.005° 4-20mA/0-20mA/0-24mA,Digital TTL 0

BWM468 Current Output Dual Axis Inclinometer Tiltmeter Accuracy 0.005° 4-20mA/0-20mA/0-24mA,Digital TTL 1


Application:



● Slope monitoring
● High-speed rail foundation monitoring
● Piling monitoring
● Deep displacement monitoring
● Dam tailings monitoring

BWSENSING's Accuracy Traceability System:
BWM468 Current Output Dual Axis Inclinometer Tiltmeter Accuracy 0.005° 4-20mA/0-20mA/0-24mA,Digital TTL 2

Company introduction

Wuxi Bewis Sensing Technology LLC(BWSENSING) is an innovative fast growing company established in 2010. The company was born in The Institute of Microelectronics (IME) of Peking University. We have achieved the top spot in the middle and high-end industry applications in the Chinese market.

From 2019, BWSENSING ® is approved as our global brand.With 10 years experience in the research-design-development and manufacture of a range of Inertial sensor technology, BWSENSING posses the skills, knowledge and experience to provide fully integrated OEM/ODM design and manufacturing services for Inclinometer, Electronic Compass, IMU, AHRS, GNSS/INS and Fiber Optic Gyroscope. As the company co-founder Dr. Guangyi Shi said, we will use the Accurate and Cost-effective sensors to make a greater contribution to the global society for a better IoT world.



BWM468 Current Output Dual Axis Inclinometer Tiltmeter Accuracy 0.005° 4-20mA/0-20mA/0-24mA,Digital TTL 3



FAQ



Q1: Accuracy definition of products

A: RMS accuracy, the accuracy of each product can be traced.Accuracy test report can be provided if required.



Q2: How to select suitable model?

A: Users should check the following points:

a. Single or dual axis?

b. Commom protocol, Modbus or CAN?

c. Dynamic or static Application scenarios?

d. Horizontal or vertical installation?





Q3: How to purchase?

A: If you want sample, please purchase on BWSENSING online shop. We accept Paypal/TT/CC.If you purchase in bulk, it is recommended to consult the sales for the best price.



Q4: How long is the warranty period?

A: One year.

Q5: Can analog quantity change the range?

A: User-defined settings can be made on the Beiwei host computer with RS232-USB through the reserved RS232 wire harness.
