Ip67 Analog Inclinometer Sensor With Measuring Range ±180° 90mm X 40mm X 26mm

Place of Origin China
Brand Name BEWIS
Model Number BWK210
Minimum Order Quantity 1
Payment Terms T/T 100% in advance

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Accuracy ±0.2° Application Industrial Automation
Size 90mm X 40mm X 26mm Operating Temperature -20°C To +85°C
Measuring Range ±180° Power Supply Voltage 12V-36V
Material ABS Protection Level IP67
High Light

ip67 analog inclination sensor


ABS analog inclination sensor


ip67 analog tilt sensor

Leave a Message
Product Description

Product Description:

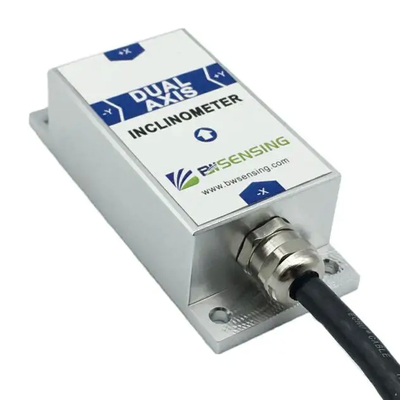

Analog Inclinometer Sensor is a highly precise and reliable tool for measuring inclination angle in various applications. It is compact and lightweight, with the size of 90mm X 40mm X 26mm. The inclinometer is able to measure angles in the range of ±180° with high accuracy, providing stable and accurate readings even in harsh environments. It is powered by a voltage range of 12V-36V and made of ABS material, offering an excellent durability. The sensor offers an analog interface to connect to other systems, making it easy to integrate with existing hardware. All these features make Analog Inclinometer Sensor an ideal choice for inclination sensing applications.



  • Product Name: Analog Inclinometer Sensor
  • Interface: Analog
  • Material: ABS
  • Operating Temperature: -20°C To +85°C
  • Application: Industrial Automation
  • Special Features: Analog Tilt Sensor, Tilt Angle Measurer, Inclinometer Angle Sensor

Technical Parameters:

Product Name Signal Output
Analog Inclinometer Sensor Analog Voltage(0-5V,0-10v)
Material Application
ABS Industrial Automation
Operating Temperature Power Supply Voltage
-20°C To +85°C 12V-36V
Interface Resolution
Analog 0.02°
Protection Level Size
IP67 90mm X 40mm X 26mm


The BEWIS BWK210 Analog Inclinometer Sensor is an ideal tilt angle measurer for both indoor and outdoor applications. It is designed to measure tilt angles in the range of ±180° with an accuracy of ±0.2°. The sensor is made of ABS material and is IP67 rated for protection against dust and water. It is powered by an analog interface and has a minimum order quantity of 1. The payment terms are 100% T/T in advance. This inclinometer angle sensor is a great choice for any applications or projects that require accurate tilt angle measurements.


Packing and Shipping:

Packaging and Shipping

Analog Inclinometer Sensor is shipped securely in a sturdy cardboard box with foam inserts for extra protection during transit. The box is filled with a desiccant to absorb any moisture. The box is then sealed and placed in a shipping container with a tracking label.



Q1: What is the Brand Name of this product?

A1: The Brand Name of this product is BEWIS.

Q2: What is the Model Number of this product?

A2: The Model Number of this product is BWK210.

Q3: Where is this product made?

A3: This product is made in China.

Q4: What is the minimum order quantity for this product?

A4: The minimum order quantity for this product is 1.

Q5: What are the Payment Terms for this product?

A5: The Payment Terms for this product are T/T 100% in advance.
