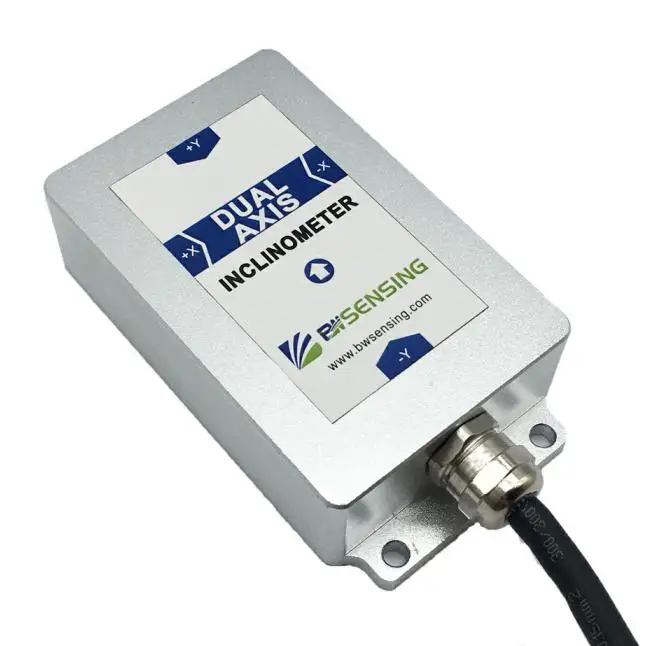

Engineering Outdoor Analog Inclinometer Sensor With 0.02° Resolution

Place of Origin China
Brand Name BEWIS
Model Number BWK210
Minimum Order Quantity 1
Payment Terms T/T 100% in advance

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Industrial Automation Resolution 0.02°
Operating Temperature -20°C To +85°C Material ABS
Power Supply Voltage 12V-36V Signal Output Analog Voltage(0-5V,0-10v)
Protection Level IP67 Interface Analog
High Light

outdoor analog inclination sensor

,

engineering analog inclination sensor

,

outdoor analog tilt sensor

Leave a Message
Product Description

Product Description:

Analog Inclinometer Sensor is a tilt angle measurer designed with high accuracy and resolution, using analog interface for easy connection. It has a resolution of 0.02° and a protection level of IP67, making it suitable for outdoor applications. The power supply voltage of the sensor ranges from 12V-36V, providing a long-term and stable operation.

This analog tilt sensor can be used in a variety of applications, such as detecting the angle of a surface or measuring the tilt angle of an object. It can also be used for controlling and adjusting the position of an object, or for monitoring the attitude of a vehicle.

Analog Inclinometer Sensor offers accurate and reliable angle measurements, providing a fast and easy solution to your tilt angle measurement needs. With its high resolution and protection level, it is an ideal choice for outdoor applications.



Features:

  • Product Name: Analog Inclinometer Sensor
  • Application: Industrial Automation
  • Signal Output: Analog Voltage(0-5V,0-10v)
  • Resolution: 0.02°
  • Measuring Range: ±180°
  • Protection Level: IP67
  • Tilt Angle Measurer: Yes


Technical Parameters:

Parameter Value
Product Name Analog Inclinometer Sensor
Interface Analog
Signal Output Analog Voltage(0-5V,0-10v)
Size 90mm X 40mm X 26mm
Measuring Range ±180°
Protection Level IP67
Power Supply Voltage 12V-36V
Accuracy ±0.2°
Operating Temperature -20°C To +85°C
Resolution 0.02°


Applications:

The BEWIS BWK210 Analog Inclinometer Sensor is an ideal solution for accurate and reliable tilt angle measurements. With its ±0.2° accuracy and 0.02° resolution, it excels in applications where reliable and precise tilt angle measurements are required. The BWK210 is a robust and cost-effective solution that can measure angles up to ±180° and works in extreme environments ranging from -20°C to +85°C. It has an analog interface and requires a minimum order quantity of 1. It is also T/T 100% in advance payment terms.

The BEWIS BWK210 Analog Inclinometer Sensor is perfect for applications such as machine control, navigation, robotics, and surveying. Its accuracy and reliability make it suitable for use in a range of settings, including aerospace, automotive, industrial, and medical. It is also ideal for any application that requires the measurement of tilt angles such as levelling, alignment, or orientation.

The BEWIS BWK210 Analog Inclinometer Sensor is the perfect solution for accurate and reliable tilt angle measurements. With its high accuracy and resolution, it is ideal for applications that require precise measurements. Whether you need it for machine control, navigation, robotics, or surveying, the BWK210 is the perfect choice.



Packing and Shipping:

Packaging and Shipping for Analog Inclinometer Sensor
  • The product package includes the Analog Inclinometer Sensor, battery, and instruction manual.
  • The product will be securely packaged in a cardboard box or bubble mailer.
  • We ship the product via USPS, UPS, DHL, FedEx, or other reliable carriers.
  • The product can be shipped to domestic and international addresses.
  • The shipping costs are calculated based on the product's weight and destination.


FAQ:

Q: What is the brand name of the Analog Inclinometer Sensor?

A: The brand name of the Analog Inclinometer Sensor is BEWIS.

Q: What is the model number of the Analog Inclinometer Sensor?

A: The model number of the Analog Inclinometer Sensor is BWK210.

Q: Where does the Analog Inclinometer Sensor come from?

A: The Analog Inclinometer Sensor is from China.

Q: What is the minimum order quantity for the Analog Inclinometer Sensor?

A: The minimum order quantity for the Analog Inclinometer Sensor is 1.

Q: What payment terms apply for the Analog Inclinometer Sensor?

A: The payment terms for the Analog Inclinometer Sensor is T/T 100% in advance.
