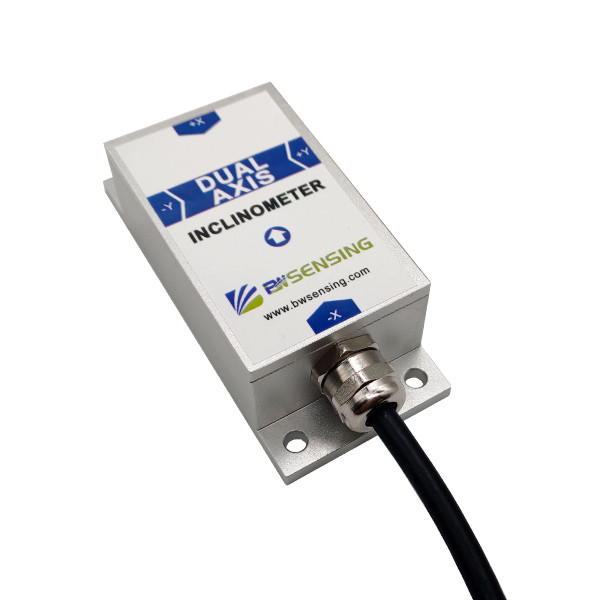

Current Output Dual Axis Inclinometer Tiltmeter BWK228 IP67
| Place of Origin | CHINA |
|---|---|
| Brand Name | BWSENSING |
| Model Number | BWK228 |
| Minimum Order Quantity | 1 unit |
| Packaging Details | BWSENSING BOX,Express package |
| Delivery Time | 3-5 working days |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Inclinometer Tiltmeter BWK228 | Accuracy (°) | 0.2 |
|---|---|---|---|
| Resolution (°) | 0.02 | Zero Bias (°/℃) | ±0.01 |
| Protection Level | IP67 | Power Supply(V) | 12-36V |
| Start-up Time | ＜3s | MTBF | ≥90000 H/time |
| High Light | current output dual axis inclinometer,IP67 dual axis inclinometer,current output 2 axis inclinometer |
||
Product Description
BWK228 Low-Cost Current Output Dual Axis Inclinometer Tiltmeter
Introduction:
BWK228 is a low-cost dual-axis inclinometer with current output developed and produced by BWSENSING. It uses a mature industrial-grade MEMS accelerometer, with a measurement range of ±90°, the highest accuracy of 0.2°, and an operating temperature of -40°C-+85. ℃. This product is small in size and light in weight, which can meet the application requirements with limited space. It converts the change of the static gravity field into the change of the inclination angle, and directly outputs the horizontal inclination value through the current mode.
Performance Index:
|
Measurement Range (°)
|
Condition | ±90 |
| Measurement axis | X-Y | |
| Accuracy (°) | Room temperature | 0.2 |
| Resolution (°) | Completely still | 0.02 |
| Zero bias (°/℃) | -40〜85℃ | ±0.01 |
| Start-up time | ＜3s | |
| Output frequency (Hz) | 5-100Hz adjustable | Up to 100 |
| Current output at zero(V) | 10(0-20); 12(4-20)；12(0-24) | |
| Full-scale output current range (V) | 4-20 (0-20 optional) (0-24 optional) | |
| MTBF | ≥90000 h/time | |
| EMC | According to GBT17626 | |
| Insulation resistance | ≥100 MΩ | |
| Impact resistance | 2000g,0.5ms,3 times/axis | |
| Weight (g) | 230(without package) | |
Application:
● Industrial automatic leveling
● Medical instruments
● Photovoltaic automatic tracking
● Special valve
● Oil drilling equipment
BWSENSING's Accuracy Traceability System:
Company introduction:
Wuxi Bewis Sensing Technology LLC(BWSENSING) is an innovative fast growing company established in 2010. The company was born in The Institute of Microelectronics (IME) of Peking University. We have achieved the top spot in the middle and high-end industry applications in the Chinese market.
From 2019, BWSENSING ® is approved as our global brand.With 10 years experience in the research-design-development and manufacture of a range of Inertial sensor technology, BWSENSING posses the skills, knowledge and experience to provide fully integrated OEM/ODM design and manufacturing services for Inclinometer, Electronic Compass, IMU, AHRS, GNSS/INS and Fiber Optic Gyroscope. As the company co-founder Dr. Guangyi Shi said, we will use the Accurate and Cost-effective sensors to make a greater contribution to the global society for a better IoT world.
FAQ
Q1: Accuracy definition of products
A: RMS accuracy, the accuracy of each product can be traced.Accuracy test report can be provided if required.
Q2: How to select suitable model?
A: Users should check the following points:
a. Single or dual axis?
b. Commom protocol, Modbus or CAN?
c. Dynamic or static Application scenarios?
d. Horizontal or vertical installation?
Q3: How to purchase?
A: If you want sample, please purchase on BWSENSING online shop. We accept Paypal/TT/CC.If you purchase in bulk, it is recommended to consult the sales for the best price.
Q4: How long is the warranty period?
A: One year.
