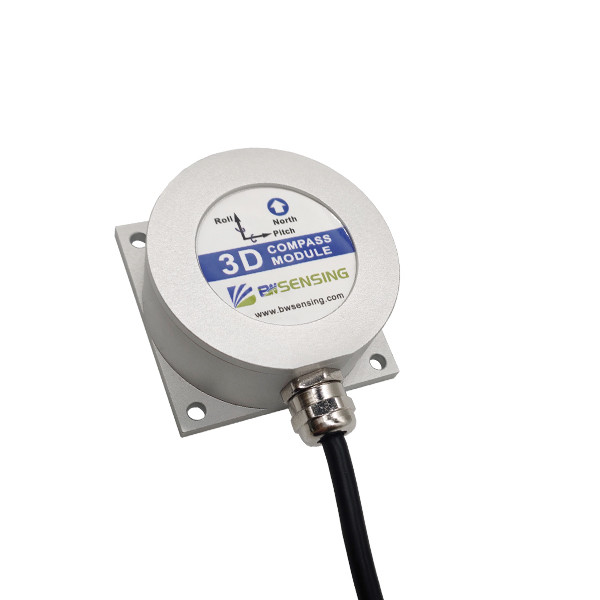

SEC385 3D Electronic Compass Sensor Cost-Effective

  • SEC385 3D Electronic Compass Sensor Cost-Effective
  • SEC385 3D Electronic Compass Sensor Cost-Effective
  • SEC385 3D Electronic Compass Sensor Cost-Effective
  • SEC385 3D Electronic Compass Sensor Cost-Effective
Place of Origin CHINA
Brand Name BWSENSING
Model Number SEC385
Minimum Order Quantity 1 unit
Packaging Details BWSENSING BOX,Express package
Delivery Time 3-5 working days
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Dimension L60 X W59 X H29 (mm) Weight 180g
Output Form RS232/485/TTL Interface Start-up Delay <3s
Heading Accuracy 0.5°（pitch＜40°） 0.7°(pitch＜60°) 1°(pitch＜80°) Pitch Accuracy 0.1º
Roll Accuracy 0.1° For Pitch＜80° Anti-vibration Performance 2000g
High Light

SEC385 Electronic Compass Sensor

,

RS485 3D Electronic Compass Sensor

,

Inclination Compensation Electronic Compass Sensor
Leave a Message
Product Description

SEC385 Inclination Compensation 3D Electronic Compass Sensor:



Introduction:



SEC385 is a cost-effective three-dimensional electronic compass.It integrates a three-axis magnetic sensor. When the heading is calculated by the central processing unit in real time, a three-axis accelerometer is used to compensate the tilt angle, so that it can provide accurate heading data even in extremely harsh environments.



Application:



● Handheld devices

● Marine survey

● Underwater navigation

● Satellite tracking

● Petroleum geological survey



Performance Index:



Compass heading parameters Heading accuracy

0.5°(pitch＜40°)0.7°(pitch＜60°)

1°(pitch＜80°)
Resolution 0.01°
Repeatability 0.1°
Compass tilt parameters Pitch accuracy 0.1º
Roll accuracy 0.1° for pitch＜80°
Resolution 0.01°
Tilt range ±80°
Calibration Hard magnetic calibration Yes
Soft magnetic calibration Yes
Limited tilt user calibration Yes
Physical properties Dimension L60 x W59 x H29 (mm)
Weight 180g
Output form RS232/485/TTL Interface
Interface characteristics Start-up delay <3s
Maximum output frequency 50Hz
RS232 communication rate 2400 to 115200 Baud rate
Environment Anti-vibration performance 2000g



SEC385 3D Electronic Compass Sensor Cost-Effective 0

BWSENSING's Accuracy Traceability System:

SEC385 3D Electronic Compass Sensor Cost-Effective 1



Company introduction:



Wuxi Bewis Sensing Technology LLC(BWSENSING) is an innovative fast growing company established in 2010. The company was born in The Institute of Microelectronics (IME) of Peking University. We have achieved the top spot in the middle and high-end industry applications in the Chinese market.

From 2019, BWSENSING ® is approved as our global brand.With 10 years experience in the research-design-development and manufacture of a range of Inertial sensor technology, BWSENSING posses the skills, knowledge and experience to provide fully integrated OEM/ODM design and manufacturing services for Inclinometer, Electronic Compass, IMU, AHRS, GNSS/INS and Fiber Optic Gyroscope. As the company co-founder Dr. Guangyi Shi said, we will use the Accurate and Cost-effective sensors to make a greater contribution to the global society for a better IoT world.


SEC385 3D Electronic Compass Sensor Cost-Effective 2



FAQ



Q1: Accuracy definition of products

A: RMS accuracy, the accuracy of each product can be traced.Accuracy test report can be provided if required.



Q2: How to select suitable model?

A: Users should check the following points:

a. Single or dual axis?

b. Commom protocol, Modbus or CAN?

c. Dynamic or static Application scenarios?

d. Horizontal or vertical installation?



Q3: How to purchase?

A: If you want sample, please purchase on BWSENSING online shop. We accept Paypal/TT/CC.If you purchase in bulk, it is recommended to consult the sales for the best price.



Q4: How long is the warranty period?

A: One year.



Q5: Precausions for using Electronic compass

A: Please refer to manual, and keep away from sensitive items like iron or motors, or even your cell phone；Electronic compass outputs magnetic north, not true north.



Q6: How to calibrate electronic compass?

A: a. Consult Sales about corresponding calibration videos.

b. It is divided into common calibration and 12 point calibration. The 12-point calibration is only for high-precision electronic compass.

c. Customized NMEA output.
