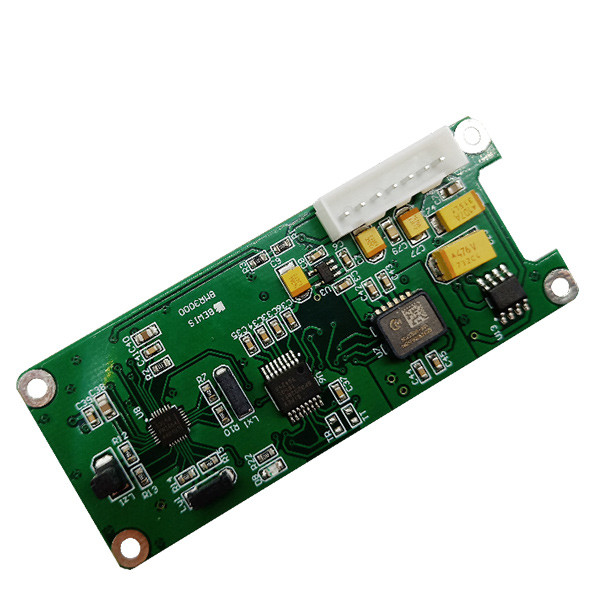

BMR3300 6-Axis High-Accuracy Electronic Compass Sensor RS232/RS485/TTL Optional
| Place of Origin | CHINA |
|---|---|
| Brand Name | BWSENSING |
| Model Number | BMR3300 |
| Minimum Order Quantity | 1 unit |
| Packaging Details | BWSENSING BOX,Express package |
| Delivery Time | 3-5 working days |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Electronic Compass | Heading Accuracy | 0.2 RMS（Horizontal Use）＜0.5 RMS（Pitch<30°） |
|---|---|---|---|
| Heading Resolution | 0.001° | Repeatability | 0.05° |
| Hard Magnetic Calibration | Yes | Soft Magnetic Calibration | Yes |
| Limited Tilt User Calibration | Yes | Output Form | RS232/485/TTL |
| High Light | 6 axis magnetic compass sensor,magnetic compass sensor RS232,satellite Tracking high accuracy digital compass |
||
Product Description
BMR3300 6-axis High Accuracy Electronic Compass Accuracy0.2° RS232/RS485/TTL
Introduction:
BMR3000 is specially designed to improve the static measurement accuracy of magnetic compass. For fixed interference, it can still maintain high measurement accuracy. It can be customized according to customer needs, which can easily and quickly integrate the function of electronic compass into various products. It is composed of industrial grade single chip microcomputer with high reliability and strong anti-interference ability, high-precision magnetic sensor and driving chip.
Performance Index:
|
Compass heading parameter |
Heading accuracy |
0.2 RMS(Horizontal use) ＜0.5 RMS(Pitch<30°) |
| Resolution | 0.001° | |
| Repeatability | 0.05° | |
|
Compass tilt parameter |
Pitch accuracy | 0.01° |
| Roll accuracy | 0.01° | |
| Resolution | 0.001° | |
| Tilt range | ±45° | |
| Calibration | Hard magnetic calibration | Yes |
| Soft magnetic calibration | Yes | |
| Limited tilt user calibration | Yes | |
|
Physical specifications |
Size | L74.9 x W30.5 x H10 (mm) |
| Weight | 100g | |
| Output form | RS232/485/TTL interface | |
|
Interface specifications |
Start-up delay | <3s |
| Maximum output frequency | 50Hz | |
| RS232 communication rate | 2400 to 115200 baud rates | |
| Environment | Anti-vibration performance | 2000g |
Application:
● Individual combat equipment
● Ocean test
● Underwater navigation
● Mechanical control
● Satellite tracking
● Petroleum geological exploration
● Optical range finder
● GPS assisted navigation
BWSENSING's Accuracy Traceability System:
Company introduction
Wuxi Bewis Sensing Technology LLC(BWSENSING) is an innovative fast growing company established in 2010. The company was born in The Institute of Microelectronics (IME) of Peking University. We have achieved the top spot in the middle and high-end industry applications in the Chinese market.
From 2019, BWSENSING ® is approved as our global brand.With 10 years experience in the research-design-development and manufacture of a range of Inertial sensor technology, BWSENSING posses the skills, knowledge and experience to provide fully integrated OEM/ODM design and manufacturing services for Inclinometer, Electronic Compass, IMU, AHRS, GNSS/INS and Fiber Optic Gyroscope. As the company co-founder Dr. Guangyi Shi said, we will use the Accurate and Cost-effective sensors to make a greater contribution to the global society for a better IoT world.
FAQ
Q1: Accuracy definition of products
A: RMS accuracy, the accuracy of each product can be traced.Accuracy test report can be provided if required.
Q2: How to select suitable model?
A: Users should check the following points:
a. Single or dual axis?
b. Commom protocol, Modbus or CAN?
c. Dynamic or static Application scenarios?
d. Horizontal or vertical installation?
Q3: How to purchase?
A: If you want sample, please purchase on BWSENSING online shop. We accept Paypal/TT/CC.If you purchase in bulk, it is recommended to consult the sales for the best price.
Q4: How long is the warranty period?
A: One year.
Q5: Precausions for using Electronic compass
A: Please refer to manual, and keep away from sensitive items like iron or motors, or even your cell phone；Electronic compass outputs magnetic north, not true north.
Q6: How to calibrate electronic compass?
A: a. Consult Sales about corresponding calibration videos.
b. It is divided into common calibration and 12 point calibration. The 12-point calibration is only for high-precision electronic compass.
c. Customized NMEA output.
