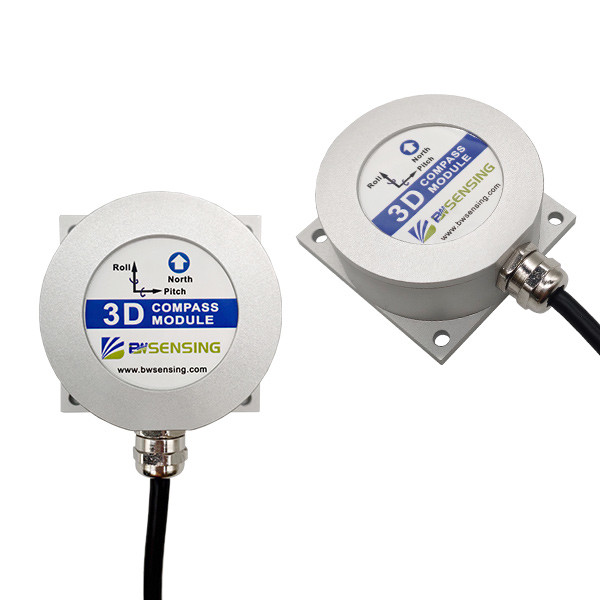

HEC395 9-Axis Dynamic Electronic Compass High-Performance 0.5°

  • HEC395 9-Axis Dynamic Electronic Compass High-Performance 0.5°
Place of Origin CHINA
Brand Name BWSENSING
Model Number HEC395
Minimum Order Quantity 1 unit
Packaging Details BWSENSING BOX,Express package
Delivery Time 3-5 working days
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power Supply 9-35V DC Operating Current 30mA（40mA Max）
Operating Temperature -40℃~85℃ Heading Accuracy 0.5° Static，2°dynamic
Repeatability 0.1° Output Form RS232/485/TTL Optional
Start-up Delay <3s Dimension L60 X W59 X H29 (mm)
High Light

Nine Axis Electronic Compass Sensor

,

Electronic Compass Sensor Accuracy 0.5

,

Unmanned Vehicles digital compass with gps
Leave a Message
Product Description

HEC395 Nine-Axis Dynamic Electronic Compass High-Performance Heading Accuracy 0.5° Unmanned Vehicles



Introduction:



Unmanned carrier vehicles often need accurate heading information when performing complex tasks, but the current attitude reference system is often easy to lose its direction when encountering magnetic interference, and the irregular movement process is also easy to lead to error, even in the static environment. Hec395 nine axis attitude and heading reference system is an inertial product of North micro sensor, which provides high-precision roll, pitch and azimuth measurement in the presence of magnetic interference and dynamic motion environment. The product includes 9-DOF sensors: 3-axis acceleration sensor, 3-axis magnetic sensor and 3-axis gyroscope.



Performance Index:



Compass heading

parameter

 Heading accuracy

0.5°(RMS,static, compass working mode)

2°(RMS,dynamic, attitude working mode)
  Repeatability 0.1°

Compass tilt

parameter

 Rolling pitch accuracy

1°(RMS,Dynamic)

0.1°(RMS,Static)
  Resolution 0.01°
  Tilt range Pitch ±90°；Roll ±180°
Calibration Hard magnetic calibration Yes
  Soft magnetic calibration Yes
  Limited tilt user calibration Yes

Physical

specifications

 Dimension L60 x W59 x H29 (mm)
  Weight 240g
  Output form RS232/485/TTL optional

Interface

specifications

 Start-up delay <3s
  Maximum output frequency 50Hz
  RS-232 Communication rate 2400 to 115200 Baud rate
Environment Anti-vibration performance 3000g



HEC395 9-Axis Dynamic Electronic Compass High-Performance 0.5° 0

HEC395 9-Axis Dynamic Electronic Compass High-Performance 0.5° 1

Application:



● Satellite tracking

● Petroleum geological exploration

● Optical range finder

● GPS-assisted navigation

● Individual combat equipment

● Ocean test

● Underwater navigation



BWSENSING's Accuracy Traceability System:



HEC395 9-Axis Dynamic Electronic Compass High-Performance 0.5° 2



Company introduction

Wuxi Bewis Sensing Technology LLC(BWSENSING) is an innovative fast growing company established in 2010. The company was born in The Institute of Microelectronics (IME) of Peking University. We have achieved the top spot in the middle and high-end industry applications in the Chinese market.

From 2019, BWSENSING ® is approved as our global brand.With 10 years experience in the research-design-development and manufacture of a range of Inertial sensor technology, BWSENSING posses the skills, knowledge and experience to provide fully integrated OEM/ODM design and manufacturing services for Inclinometer, Electronic Compass, IMU, AHRS, GNSS/INS and Fiber Optic Gyroscope. As the company co-founder Dr. Guangyi Shi said, we will use the Accurate and Cost-effective sensors to make a greater contribution to the global society for a better IoT world.



HEC395 9-Axis Dynamic Electronic Compass High-Performance 0.5° 3



FAQ



Q1: Accuracy definition of products

A: RMS accuracy, the accuracy of each product can be traced.Accuracy test report can be provided if required.



Q2: How to select suitable model?

A: Users should check the following points:

a. Single or dual axis?

b. Commom protocol, Modbus or CAN?

c. Dynamic or static Application scenarios?

d. Horizontal or vertical installation?





Q3: How to purchase?

A: If you want sample, please purchase on BWSENSING online shop. We accept Paypal/TT/CC.If you purchase in bulk, it is recommended to consult the sales for the best price.



Q4: How long is the warranty period?

A: One year.



Q5: Precausions for using Electronic compass

A: Please refer to manual, and keep away from sensitive items like iron or motors, or even your cell phone；Electronic compass outputs magnetic north, not true north.



Q6: How to calibrate electronic compass?

A: a. Consult Sales about corresponding calibration videos.

b. It is divided into common calibration and 12 point calibration. The 12-point calibration is only for high-precision electronic compass.

c. Customized NMEA output.

Tags:

compass sensor module accuracy 0.5

Mechanical Control portable digital compass

3D Electronic Compass Sensor
