BW-188T-V Series Accelerometer Vibration Sensor

Place of Origin CHINA
Brand Name BWSENSING
Model Number BW-188T-V
Minimum Order Quantity 1 set
Packaging Details BWSENSING BOX,Express package
Delivery Time 5-8 working days
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Frequency Response (±10%) 0.6~5000Hz Operating Temperature Range -40~120℃
Overload Limit (Shock) 2000g Sensitive Unit Ceramic Shear
Stable Time <8s Adapter Bolt 1/4~28 To M6
Weight 100g Insulation Withstand Voltage 4000 V AC
High Light

10g Accelerometer Vibration Sensor

,

Accelerometer Vibration Sensor 18000Hz

,

wireless vibration sensor Output Impedance 100ohm

Leave a Message
Product Description

BW-188T-V Series Vibration Sensor



Performance index

Range 10 g
Sensitivity (±5%) 500 mV/g
Frequency Response (±10%) 0.6~5000 Hz
Frequency Response (±3dB)

0.1~10000



Hz
Mounting resonant frequency

18000



Hz
Maximum lateral sensitivity <5 %
Nonlinearity ≤1 %





























Electrical environment

Excitation voltage

18~28



V DC
Constant source current 2~10(Typical 4) mA
Bias voltage 12±2 V DC
Output impedance <100 Ω
Insulation resistance between shell and core ground (@100Vdc) >100
Sensitive unit Ceramic shear
Electrical output connections 2pin MIL-C5015
Operating temperature -40~125
Stable time <8 s
Insulation withstand voltage 4000 V AC

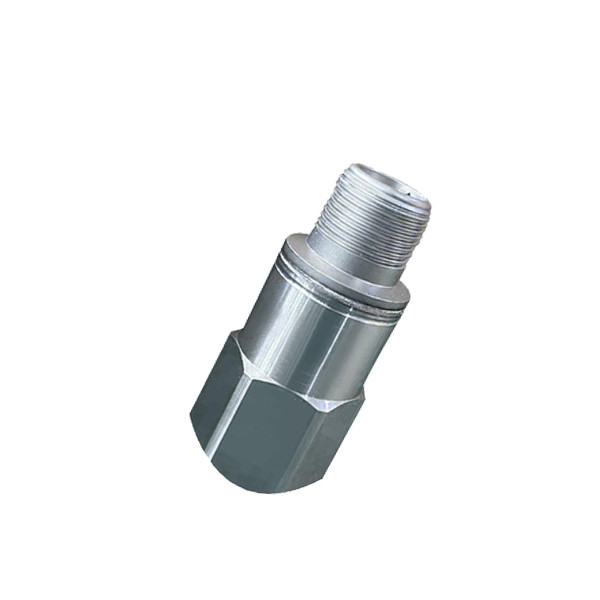

BW-188T-V Series Accelerometer Vibration Sensor 0



FAQ

Q1: Accuracy definition of products

A: RMS accuracy, the accuracy of each product can be traced.Accuracy test report can be provided if required.



Q2: How to select suitable model?

A: Users should check the following points:

a. Single or dual axis?

b. Common protocol, Modbus or CAN?

c. Dynamic or static Application scenarios?

d. Horizontal or vertical installation?





Q3: How to purchase?

A: If you want sample, please purchase on BWSENSING online shop. We accept Paypal/TT/CC.If you purchase in bulk, it is recommended to consult the sales for the best price.



Q4: How long is the warranty period?

A: One year.
