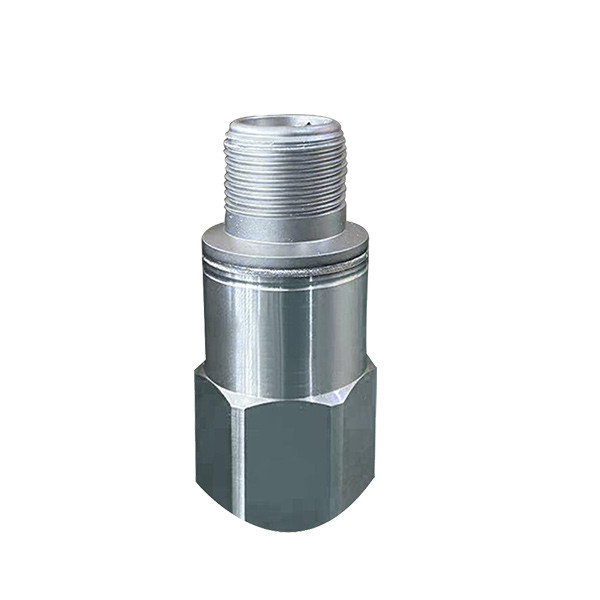

BW-188T Accelerometer Vibration Sensor
| Place of Origin | CHINA |
|---|---|
| Brand Name | BWSENSING |
| Model Number | BW-188T |
| Minimum Order Quantity | 1 set |
| Packaging Details | BWSENSING BOX,Express package |
| Delivery Time | 5-8 working days |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Frequency Response (±10%) | 0.6~5000Hz | Operating Temperature Range | -40~120℃ |
|---|---|---|---|
| Overload Limit (Shock) | 2000g | Output Impedance | ＜100Ω |
| Stable Time | ＜8s | Adapter Bolt | 1/4~28 To M6 |
| Weight | 100g | Mounting Thread | 1/4~28 |
| High Light | 18V Accelerometer Vibration Sensor,28V Accelerometer Vibration Sensor,vibration monitoring sensor rohs |
||
Product Description
BW-188T Series Vibration Sensor
Performance index
| Range | ±10 | g |
| Sensitivity (±5%) | 500 | mV/g |
| Frequency Response (±10%) | 0.6~5000 | Hz |
| Frequency Response (±3dB) |
0.1~10000
|
Hz |
| Mounting resonant frequency |
18000
|
Hz |
| Maximum lateral sensitivity | ＜5 | % |
| Nonlinearity | ≤1 | % |
Electrical environment
| Excitation voltage |
18~28
|
V DC |
| Constant source current | 2~10(Typical 4) | mA |
| Bias voltage | 12±2 | V DC |
| Output impedance | ＜100 | Ω |
| Insulation resistance between shell and core ground (@100Vdc) | ＞100 | MΩ |
| Sensitive unit | Ceramic shear | |
| Electrical output connections | 2pin MIL-C5015 | |
| Operating temperature | -40~125 | ℃ |
| Stable time | ＜8 | s |
| Insulation withstand voltage | 1000 | VAC |
FAQ
Q1: Accuracy definition of products
A: RMS accuracy, the accuracy of each product can be traced.Accuracy test report can be provided if required.
Q2: How to select suitable model?
A: Users should check the following points:
a. Single or dual axis?
b. Common protocol, Modbus or CAN?
c. Dynamic or static Application scenarios?
d. Horizontal or vertical installation?
Q3: How to purchase?
A: If you want sample, please purchase on BWSENSING online shop. We accept Paypal/TT/CC.If you purchase in bulk, it is recommended to consult the sales for the best price.
Q4: How long is the warranty period?
A: One year.
