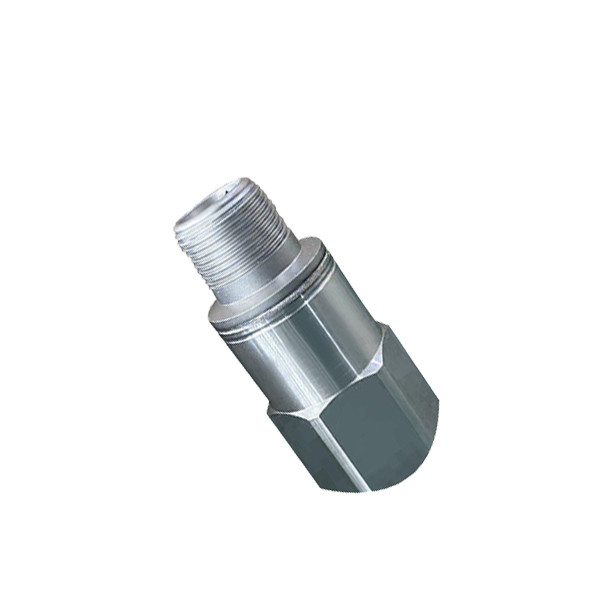

BW-187T Series Accelerometer Vibration Sensor
| Place of Origin | CHINA |
|---|---|
| Brand Name | BWSENSING |
| Model Number | BW-187T |
| Minimum Order Quantity | 1 set |
| Packaging Details | BWSENSING BOX,Express package |
| Delivery Time | 5-8 working days |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Range | ±50g | Sensitivity (±5%) | 100mV/g |
|---|---|---|---|
| Frequency Response (±10%) | 1~9000Hz | Frequency Response (±3dB) | 0.4~12000Hz |
| Mounting Resonant Frequency | 18000Hz | Maximum Lateral Sensitivity | ＜5% |
| Nonlinearity | ≤1% | Noise | ≤100uV |
| High Light | IP67 Accelerometer Vibration Sensor,Accelerometer Vibration Sensor accuracy 50g,18000Hz accelerometer sensor for vibration measurement |
||
Product Description
BW-187T Series Vibration Sensor
Performance index
| Range | ±50 | g |
| Sensitivity (±5%) | 100 | mV/g |
| Frequency Response (±10%) | 1~9000 | Hz |
| Frequency Response (±3dB) |
0.4~12000
|
Hz |
| Mounting resonant frequency |
18000
|
Hz |
| Maximum lateral sensitivity | ＜5 | % |
| Nonlinearity | ≤1 | % |
Working environment
| Noise | ≤100 | uV |
| Operating temperature range | -40~120 | ℃ |
| Overload Limit (Shock) | 3000 | g |
| Protection level | IP67 |
FAQ
Q1: Accuracy definition of products
A: RMS accuracy, the accuracy of each product can be traced.Accuracy test report can be provided if required.
Q2: How to select suitable model?
A: Users should check the following points:
a. Single or dual axis?
b. Common protocol, Modbus or CAN?
c. Dynamic or static Application scenarios?
d. Horizontal or vertical installation?
Q3: How to purchase?
A: If you want sample, please purchase on BWSENSING online shop. We accept Paypal/TT/CC.If you purchase in bulk, it is recommended to consult the sales for the best price.
Q4: How long is the warranty period?
A: One year.
