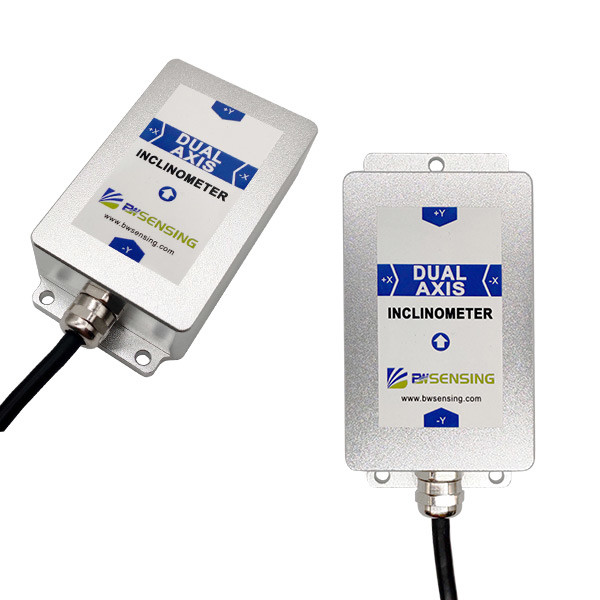

BWS2800 High-Precision Current Output Dual Axis Inclinometer Tiltmeter Accuracy 0.001°

Place of Origin CHINA
Brand Name BWSENSING
Model Number BWS2800
Minimum Order Quantity 1 set
Packaging Details BWSENSING BOX,Express package
Delivery Time 5-8 working days
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Shell Material Magnesium Aluminum Alloy Anodizing Connector Metal Joint(cable 1.5m)
Installation Three M4 Screws Zero Bias (°/℃) ±0.0007
Start-up Time <3s Output 0-20mA, 4-20mA
Protection Level IP67 MTBF ≥90000 H
High Light

0.003 accuracy Analog Inclinometer Sensor

,

Resolution 0.0005 Analog Inclinometer Sensor

,

inclinometer tilt angle meter IP67

Leave a Message
Product Description

BWS2800 Series High-Precision Current Output Dual Axis Inclinometer Resolution 0.0005°



Introduction



BWS2800 is a dual-axis high-precision inclinometer with MEMS technology and digital output launched by Bewis Sensing. It has a measurement range of ±30° and a maximum accuracy of 0.001°. It is an industrial automation and the recommended choice for inclination measurement in surveying and mapping industries.



Performance index

Measurement Range (°) Condition ±5 ±15 ±30
Measurement axis Mutually perpendicular X-Y X-Y X-Y
Accuracy (°) Room temperature 0.001 0.003 0.005
Resolution (°) Completely still 0.0005 0.0005 0.0005
Zero bias (°/℃) -40~85℃ ±0.0007 ±0.0007 ±0.0007
Cross axis error (°) -40~85℃ 0.001 0.001 0.001
Start-up time   <3s <3s <3s
Output frequency (Hz) 5-100Hz adjustable Up to 100 Up to 100 Up to 100
Baud rate Adjustable 2400~115200 2400~115200 2400~115200
Mean time between failures MTBF ≥90000 h
Electromagnetic compatibility According to GBT17626
Insulation resistance ≥100 MΩ
Impact resistance 2000g,0.5ms,3 times/axis



BWS2800 High-Precision Current Output Dual Axis Inclinometer Tiltmeter Accuracy 0.001° 0

BWS2800 High-Precision Current Output Dual Axis Inclinometer Tiltmeter Accuracy 0.001° 1

Application

Precision platform automatic leveling

Military equipment automation

Tower tilt monitoring

Wind turbine tower monitoring



FAQ

Q1: Accuracy definition of products

A: RMS accuracy, the accuracy of each product can be traced.Accuracy test report can be provided if required.



Q2: How to select suitable model?

A: Users should check the following points:

a. Single or dual axis?

b. Common protocol, Modbus or CAN?

c. Dynamic or static Application scenarios?

d. Horizontal or vertical installation?





Q3: How to purchase?

A: If you want sample, please purchase on BWSENSING online shop. We accept Paypal/TT/CC.If you purchase in bulk, it is recommended to consult the sales for the best price.



Q4: How long is the warranty period?

A: One year.



Q5: Can analog quantity change the range?

A: User-defined settings can be made on the Bewis host computer with RS232-USB through the reserved RS232 wire harness.



Company introduction



Wuxi Bewis Sensing Technology LLC(BWSENSING) is an innovative fast growing company established in 2010. The company was born in The Institute of Microelectronics (IME) of Peking University. We have achieved the top spot in the middle and high-end industry applications in the Chinese market.

From 2019, BWSENSING ® is approved as our global brand.With 10 years experience in the research-design-development and manufacture of a range of Inertial sensor technology, BWSENSING posses the skills, knowledge and experience to provide fully integrated OEM/ODM design and manufacturing services for Inclinometer, Electronic Compass, IMU, AHRS, GNSS/INS and Fiber Optic Gyroscope. As the company co-founder Dr. Guangyi Shi said, we will use the Accurate and Cost-effective sensors to make a greater contribution to the global society for a better IoT world.
