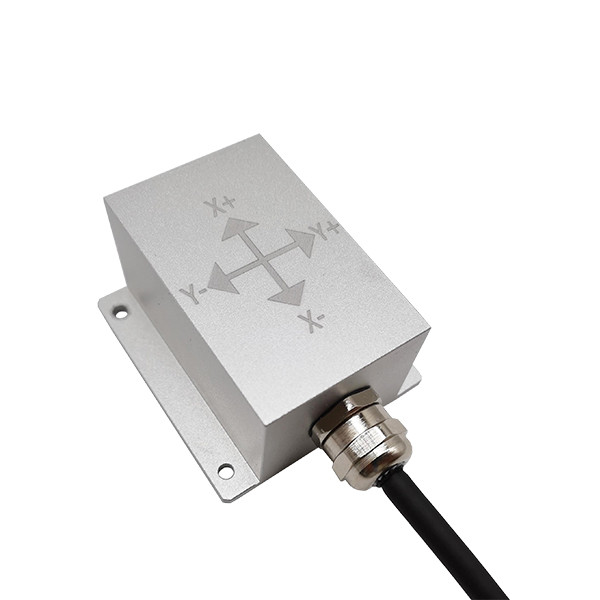

BWS2700S High-Precision Modbus Dual Axis Inclinometer Tiltmeter Accuracy 0.001°
| Place of Origin | CHINA |
|---|---|
| Brand Name | BWSENSING |
| Model Number | BWS2700S |
| Minimum Order Quantity | 1 set |
| Packaging Details | BWSENSING BOX,Express package |
| Delivery Time | 5-8 working days |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Operating Temperature(℃) | -40~85 | Storage Temperature(℃) | -55~100 |
|---|---|---|---|
| Resolution (°) | 0.0005 | Insulation Resistance | ≥100 MΩ |
| Impact Resistance | 2000g，0.5ms，3 Times/axis | Baud Rate | According To GBT17626 |
| Output Frequency (Hz) | 2400~115200 | Shell Material | Magnesium Aluminum Alloy Anodizing |
| High Light | Analog Inclinometer Sensor 5Hz,Analog Inclinometer Sensor 100Hz,Dual Axis digital Inclinometer OEM |
||
Product Description
BWS2700S Series High-Precision Modbus Dual Axis Inclinometer
Introduction
BWS2700S has a measurement range of ±30° and a maximum accuracy of 0.001°. The sensor uses a high-resolution differential digital-to-analog converter with built-in automatic compensation and filtering algorithms to minimize errors caused by environmental changes.It is an industrial automation and recommended choice for inclination measurement in surveying and mapping industries!
Performance index
| Measurement Range (°) | Condition | ±5 | ±15 | ±30 |
| Measurement axis | Mutually perpendicular | X-Y | X-Y | X-Y |
| Accuracy (°) | Room temperature | 0.001 | 0.003 | 0.005 |
| Resolution (°) | Completely still | 0.0005 | 0.0005 | 0.0005 |
| Zero bias (°/℃) | -40~85℃ | ±0.0007 | ±0.0007 | ±0.0007 |
| Cross axis error (°) | -40~85℃ | 0.001 | 0.001 | 0.001 |
| Start-up time | ＜3s | ＜3s | ＜3s | |
| Output frequency (Hz) | 5-100Hz adjustable | Up to 100 | Up to 100 | Up to 100 |
| Baud rate | Adjustable | 2400~115200 | 2400~115200 | 2400~115200 |
| Mean time between failures MTBF | ≥90000 h | |||
| Electromagnetic compatibility | According to GBT17626 | |||
| Insulation resistance | ≥100 MΩ | |||
| Impact resistance | 2000g,0.5ms,3 times/axis | |||
Application
Bridge deflection monitoring
Tower tilt monitoring
Surveying and Mapping Instruments
Precision platform automatic leveling
FAQ
Q1: Accuracy definition of products
A: RMS accuracy, the accuracy of each product can be traced.Accuracy test report can be provided if required.
Q2: How to select suitable model?
A: Users should check the following points:
a. Single or dual axis?
b. Commom protocol, Modbus or CAN?
c. Dynamic or static Application scenarios?
d. Horizontal or vertical installation?
Q3: How to purchase?
A: If you want sample, please purchase on BWSENSING online shop. We accept Paypal/TT/CC.If you purchase in bulk, it is recommended to consult the sales for the best price.
Q4: How long is the warranty period?
A: One year.
Q5: Can analog quantity change the range?
A: User-defined settings can be made on the Beiwei host computer with RS232-USB through the reserved RS232 wire harness.
Company introduction
Wuxi Bewis Sensing Technology LLC(BWSENSING) is an innovative fast growing company established in 2010. The company was born in The Institute of Microelectronics (IME) of Peking University. We have achieved the top spot in the middle and high-end industry applications in the Chinese market.
From 2019, BWSENSING ® is approved as our global brand.With 10 years experience in the research-design-development and manufacture of a range of Inertial sensor technology, BWSENSING posses the skills, knowledge and experience to provide fully integrated OEM/ODM design and manufacturing services for Inclinometer, Electronic Compass, IMU, AHRS, GNSS/INS and Fiber Optic Gyroscope. As the company co-founder Dr. Guangyi Shi said, we will use the Accurate and Cost-effective sensors to make a greater contribution to the global society for a better IoT world.
