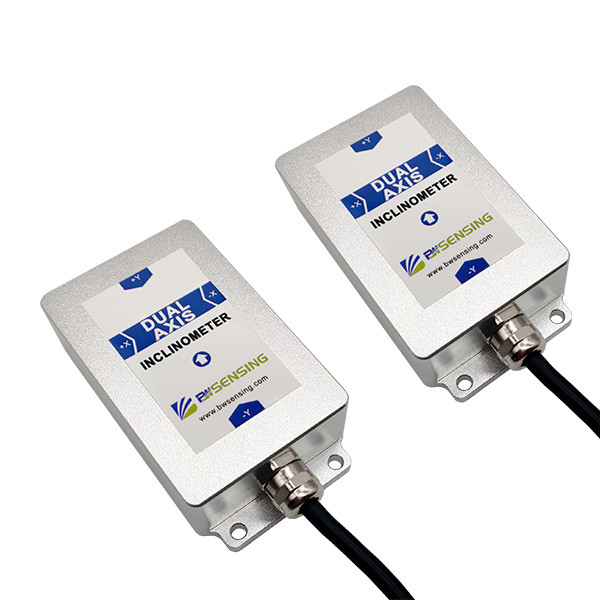

BWS2500 CAN Bus High-Precision Dual Axis Inclinometer Tiltmeter Accuracy 0.001°
| Place of Origin | CHINA |
|---|---|
| Brand Name | BWSENSING |
| Model Number | BWS2500 |
| Minimum Order Quantity | 1 set |
| Packaging Details | BWSENSING BOX,Express package |
| Delivery Time | 5-8 working days |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Measurement Range (°) | ±30 | Measurement Axis | X-Y |
|---|---|---|---|
| Highest Accuracy (°) | 0.001 | Zero Bias (°/℃) | ±0.0007 |
| Electromagnetic Compatibility | According To GBT17626 | Insulation Resistance | ≥100 MΩ |
| Impact Resistance | 2000g，0.5ms，3 Times/axis | Protect Level | IP67 |
| High Light | 30 deg dual axis digital protractor,CAN Bus dual axis digital protractor,high accuracy digital inclinometer GBT17626 |
||
Product Description
BWS2500 Series CAN Bus High-Precision Dual Axis Inclinometer
Introduction
It has a measurement range of ±30° and a maximum accuracy of 0.001°. It is currently the most accurate product in the industry. The sensor uses a high-resolution differential digital-to-analog converter with built-in automatic compensation and filtering algorithms to minimize errors caused by environmental changes.
Performance index
| Measurement Range (°) | Condition | ±5 | ±15 | ±30 |
| Measurement axis | Mutually perpendicular | X-Y | X-Y | X-Y |
| Accuracy (°) | Room temperature | 0.001 | 0.003 | 0.005 |
| Resolution (°) | Completely still | 0.0005 | 0.0005 | 0.0005 |
| Zero bias (°/℃) | -40~85℃ | ±0.0007 | ±0.0007 | ±0.0007 |
| Cross axis error (°) | -40~85℃ | 0.001 | 0.001 | 0.001 |
| Start-up time | ＜3s | ＜3s | ＜3s | |
| Output frequency (Hz) | 5-100Hz adjustable | Up to 100 | Up to 100 | Up to 100 |
| Baud rate | Adjustable | 2400~115200 | 2400~115200 | 2400~115200 |
| Mean time between failures MTBF | ≥90000 h/time | |||
| Electromagnetic compatibility | According to GBT17626 | |||
| Insulation resistance | ≥100 MΩ | |||
| Impact resistance | 2000g,0.5ms,3 times/axis | |||
Application
Building health monitoring
Surveying and Mapping Instruments
Wind turbine tower monitoring
Tunnel and dam monitoring
FAQ
Q1: Accuracy definition of products
A: RMS accuracy, the accuracy of each product can be traced.Accuracy test report can be provided if required.
Q2: How to select suitable model?
A: Users should check the following points:
a. Single or dual axis?
b. Commom protocol, Modbus or CAN?
c. Dynamic or static Application scenarios?
d. Horizontal or vertical installation?
Q3: How to purchase?
A: If you want sample, please purchase on BWSENSING online shop. We accept Paypal/TT/CC.If you purchase in bulk, it is recommended to consult the sales for the best price.
Q4: How long is the warranty period?
A: One year.
Company introduction
Wuxi Bewis Sensing Technology LLC(BWSENSING) is an innovative fast growing company established in 2010. The company was born in The Institute of Microelectronics (IME) of Peking University. We have achieved the top spot in the middle and high-end industry applications in the Chinese market.
From 2019, BWSENSING ® is approved as our global brand.With 10 years experience in the research-design-development and manufacture of a range of Inertial sensor technology, BWSENSING posses the skills, knowledge and experience to provide fully integrated OEM/ODM design and manufacturing services for Inclinometer, Electronic Compass, IMU, AHRS, GNSS/INS and Fiber Optic Gyroscope. As the company co-founder Dr. Guangyi Shi said, we will use the Accurate and Cost-effective sensors to make a greater contribution to the global society for a better IoT world.
