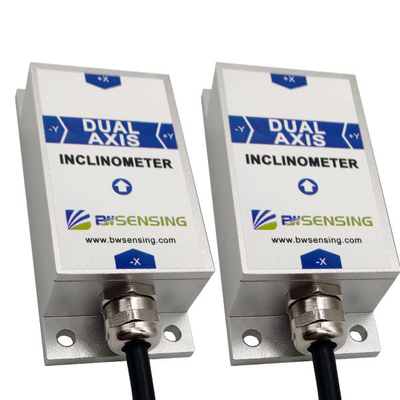

BWL320 Voltage Output Dual-Axis Inclinometer Tiltmeter 0-5V/ 0-10V Optional
| Place of Origin | CHINA |
|---|---|
| Brand Name | BWSENSING |
| Model Number | BWL320 |
| Minimum Order Quantity | 1 unit |
| Packaging Details | BWSENSING BOX,Express package |
| Delivery Time | 3-5 working days |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Analog Inclinometer | Power Voltage(V) | 12-36 |
|---|---|---|---|
| Operating Current(mA) | 20-60 | Operating Temperature(℃) | -40-85 |
| Accuracy (°) | 0.1 | Resolution (°) | 0.01 |
| Zero Bias (°/℃) | ±0.02 | Start-up Time | ＜3s |
| High Light | Accuracy 0.1 analog Inclinometer Sensor,IP67 Analog Inclinometer Sensor,0.01 Resolution high precision digital inclinometer |
||
Product Description
BWL320 Voltage Output Dual-Axis Inclinometer Accuracy 0.1° 0-5V/ 0-10V Optional
Introduction:
BWL318 is a low-cost single axis inclination sensor with voltage output. It directly outputs the horizontal inclination value through voltage mode, and 0-5V / 0-10V can be selected. The utility model has the advantages of low cost, small temperature drift, simple use, strong anti-interference ability, small volume and light weight, and can meet the application requirements with limited space.
Performance Index:
|
Measurement Range (°) |
Condition | ±90 |
| Measurement axis | X-Y | |
| Accuracy (°) | Room temperature | 0.1 |
| Resolution (°) | Completely still | 0.01 |
| Zero bias (°/℃) | -40~85℃ | ±0.02 |
| Start-up time | ＜3s | |
| Output frequency (Hz) | 5-100Hz adjustable | Up to 100 |
| Zero current output(V) | 2.5(0~5 output); 5(0~10 output) | |
| Full-scale output current range(V) | 0~5(0~10) | |
| Mean time between failures MTBF | ≥90000 h/times | |
| Electromagnetic compatibility | According to GBT17626 | |
| Insulation resistance | ≥100 MΩ | |
| Impact resistance | 2000g,0.5ms,3 times/axis | |
| Weight (g) | 210(without outer packaging) | |
Application:
● Industrial converter
● Lifting equipment inclination control
● Industrial automatic leveling
● Medical instruments
● Photovoltaic automatic tracking
BWSENSING's Accuracy Traceability System:
Company introduction
Wuxi Bewis Sensing Technology LLC(BWSENSING) is an innovative fast growing company established in 2010. The company was born in The Institute of Microelectronics (IME) of Peking University. We have achieved the top spot in the middle and high-end industry applications in the Chinese market.
From 2019, BWSENSING ® is approved as our global brand.With 10 years experience in the research-design-development and manufacture of a range of Inertial sensor technology, BWSENSING posses the skills, knowledge and experience to provide fully integrated OEM/ODM design and manufacturing services for Inclinometer, Electronic Compass, IMU, AHRS, GNSS/INS and Fiber Optic Gyroscope. As the company co-founder Dr. Guangyi Shi said, we will use the Accurate and Cost-effective sensors to make a greater contribution to the global society for a better IoT world.
FAQ
Q1: Accuracy definition of products
A: RMS accuracy, the accuracy of each product can be traced.Accuracy test report can be provided if required.
Q2: How to select suitable model?
A: Users should check the following points:
a. Single or dual axis?
b. Commom protocol, Modbus or CAN?
c. Dynamic or static Application scenarios?
d. Horizontal or vertical installation?
Q3: How to purchase?
A: If you want sample, please purchase on BWSENSING online shop. We accept Paypal/TT/CC.If you purchase in bulk, it is recommended to consult the sales for the best price.
Q4: How long is the warranty period?
A: One year.
Q5: Can analog quantity change the range?
A: User-defined settings can be made on the Beiwei host computer with RS232-USB through the reserved RS232 wire harness.
