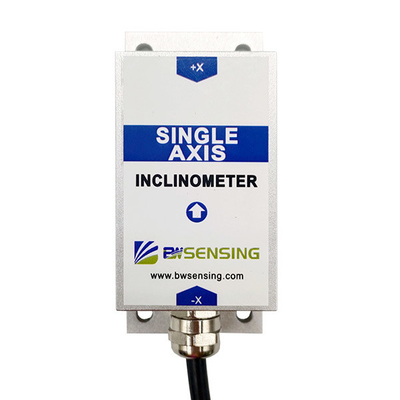

BWK210 Low-Cost Voltage Output Single-Axis Inclinometer Tiltmeter
| Place of Origin | CHINA |
|---|---|
| Brand Name | BWSENSING |
| Model Number | BWK210 |
| Minimum Order Quantity | 1 unit |
| Packaging Details | BWSENSING BOX,Express package |
| Delivery Time | 3-5 working days |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Analog Inclinometer | Power Supply | 12-35V |
|---|---|---|---|
| Accuracy | 0.2° | Output | 0-5V/0-10V Optional |
| Size | L90*W40.5*H26（mm） | Zero Bias (°/℃) | ±0.05 |
| MTBF | ≥90000 H | Insulation Resistance | ≥100 MΩ |
| High Light | Single Axis nclinometer tilt angle meter,Accuracy 0.2 inclinometer tilt angle meter,electronic angle meter Tower Monitoring |
||
Product Description
BWK210 Low-Cost Voltage Output Single-Axis Inclinometer Accuracy0.2°
Introduction:
BWK210 is a low-cost single axis inclination sensor with voltage output. It adopts mature industrial MEMS accelerometer with the highest accuracy of 0.2 ° at room temperature. This product has small volume and light weight, and can meet the application requirements with limited space. It has the advantages of small temperature drift, simple use and strong anti-interference ability. It is an ideal choice for inclination measurement in photovoltaic power generation, PTZ control, tower pole monitoring and other industries!
Performance Index:
|
Measurement Range (°) |
Condition | ±180 |
| Measurement axis | X | |
| Accuracy (°) | Room temperature | 0.2 |
| Resolution (°) | Completely still | 0.02 |
| Zero bias (°/℃) | -40〜85℃ | ±0.05 |
| Start-up time | ＜3s | |
| Output frequency (Hz) | 5-100Hz adjustable | Up to 100 |
| Current output at zero(V) | 2.5(0~5 output); 5 (0-10 output) | |
| Full-scale output current range (V) | 0~5 (0-10) | |
| MTBF | ≥90000 h | |
| EMC | According to GBT17626 | |
| Insulation resistance | ≥100 MΩ | |
| Impact resistance | 2000g,0.5ms,3 times/axis | |
| Weight (g) | 230(without package) | |
Application:
● Special valve
● Oil drilling equipment
● Industrial converter
● Medical instruments
● Photovoltaic automatic tracking
BWSENSING's Accuracy Traceability System:
Company introduction
Wuxi Bewis Sensing Technology LLC(BWSENSING) is an innovative fast growing company established in 2010. The company was born in The Institute of Microelectronics (IME) of Peking University. We have achieved the top spot in the middle and high-end industry applications in the Chinese market.
From 2019, BWSENSING ® is approved as our global brand.With 10 years experience in the research-design-development and manufacture of a range of Inertial sensor technology, BWSENSING posses the skills, knowledge and experience to provide fully integrated OEM/ODM design and manufacturing services for Inclinometer, Electronic Compass, IMU, AHRS, GNSS/INS and Fiber Optic Gyroscope. As the company co-founder Dr. Guangyi Shi said, we will use the Accurate and Cost-effective sensors to make a greater contribution to the global society for a better IoT world.
FAQ
Q1: Accuracy definition of products
A: RMS accuracy, the accuracy of each product can be traced.Accuracy test report can be provided if required.
Q2: How to select suitable model?
A: Users should check the following points:
a. Single or dual axis?
b. Commom protocol, Modbus or CAN?
c. Dynamic or static Application scenarios?
Q3: How to purchase?
A: If you want sample, please purchase on BWSENSING online shop. We accept Paypal/TT/CC.If you purchase in bulk, it is recommended to consult the sales for the best price.
Q4: How long is the warranty period?
A: One year.
Q5: Can analog quantity change the range?
A: User-defined settings can be made on the Beiwei host computer with RS232-USB through the reserved RS232 wire harness.
