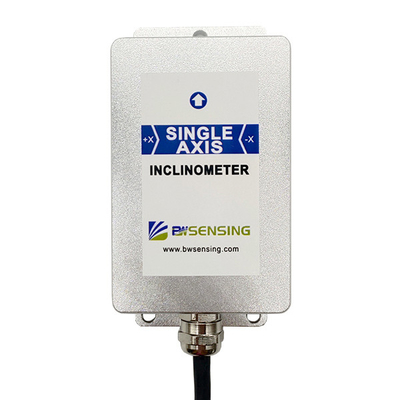

BWH510 High-Precision Voltage Output Single Axis Inclinometer Tiltmeter Accuracy 0.003°

  • BWH510 High-Precision Voltage Output Single Axis Inclinometer Tiltmeter Accuracy 0.003°
  • BWH510 High-Precision Voltage Output Single Axis Inclinometer Tiltmeter Accuracy 0.003°
Place of Origin CHINA
Brand Name BWSENSING
Model Number BWH510
Minimum Order Quantity 1 unit
Packaging Details BWSENSING BOX,Express package
Delivery Time 3-5 working days
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Analog Inclinometer Operating Temperature(℃) -40-85℃
Voltage (V) 12-35V Current (mA) 20-60mA
Measurement Range(°) ±30 Accuracy(°) 0.003
Resolution(°) 0.0007 Zero Bias(°/℃) ±0.0007
High Light

30 deg Analog Inclinometer Sensor

,

35V Analog Inclinometer Sensor

,

60mA inclinometer geotechnical instrumentation
Leave a Message
Product Description

BWH510 High-Precision Voltage Output Single Axis Inclinometer High Accuracy 0.003°



Introduction:

BWH510 is a single axis high-precision inclination sensor with MEMS technology and voltage output, with a measurement range of ± 30 ° and an accuracy of 0.003 °. It adopts high-resolution differential fractional analog converter and built-in automatic compensation and filtering algorithm to reduce the error caused by environmental change. High cost performance, simple use, small size, anti external electromagnetic interference and strong ability to withstand vibration and impact.



Performance Index:



Measurement range(°)

 Condition ±30
Measurement axis   X
Accuracy(°) Highest 0.003
Resolution(°) Completely still 0.0007
Zero bias(°/℃) -40~85℃ ±0.0007
Start-up time   ＜3s
Output frequency (Hz) 5-100Hz Adjustable Up to 100
Full-scale output voltage range (V) 0~5V,0~10V(optional)
Mean time between failures MTBF ≥90000 hours
Electromagnetic compatibility According to GBT17626
Insulation resistance ≥100 MΩ
Impact resistance 2000g,0.5ms,3times/axis





BWH510 High-Precision Voltage Output Single Axis Inclinometer Tiltmeter Accuracy 0.003° 0

BWH510 High-Precision Voltage Output Single Axis Inclinometer Tiltmeter Accuracy 0.003° 1

Application:



● Lifting equipment inclination control

● Industrial automation attitude control

● Wind tower tilt monitoring

● Bridge and dam monitoring

● Railroad Gauge Ruler Leveling



BWSENSING's Accuracy Traceability System:



BWH510 High-Precision Voltage Output Single Axis Inclinometer Tiltmeter Accuracy 0.003° 2

Company introduction

Wuxi Bewis Sensing Technology LLC(BWSENSING) is an innovative fast growing company established in 2010. The company was born in The Institute of Microelectronics (IME) of Peking University. We have achieved the top spot in the middle and high-end industry applications in the Chinese market.

From 2019, BWSENSING ® is approved as our global brand.With 10 years experience in the research-design-development and manufacture of a range of Inertial sensor technology, BWSENSING posses the skills, knowledge and experience to provide fully integrated OEM/ODM design and manufacturing services for Inclinometer, Electronic Compass, IMU, AHRS, GNSS/INS and Fiber Optic Gyroscope. As the company co-founder Dr. Guangyi Shi said, we will use the Accurate and Cost-effective sensors to make a greater contribution to the global society for a better IoT world.



BWH510 High-Precision Voltage Output Single Axis Inclinometer Tiltmeter Accuracy 0.003° 3



FAQ



Q1: Accuracy definition of products

A: RMS accuracy, the accuracy of each product can be traced.Accuracy test report can be provided if required.



Q2: How to select suitable model?

A: Users should check the following points:

a. Single or dual axis?

b. Commom protocol, Modbus or CAN?

c. Dynamic or static Application scenarios?

d. Horizontal or vertical installation?





Q3: How to purchase?

A: If you want sample, please purchase on BWSENSING online shop. We accept Paypal/TT/CC.If you purchase in bulk, it is recommended to consult the sales for the best price.



Q4: How long is the warranty period?

A: One year.



Q5: Can analog quantity change the range?

A: User-defined settings can be made on the Beiwei host computer with RS232-USB through the reserved RS232 wire harness.
