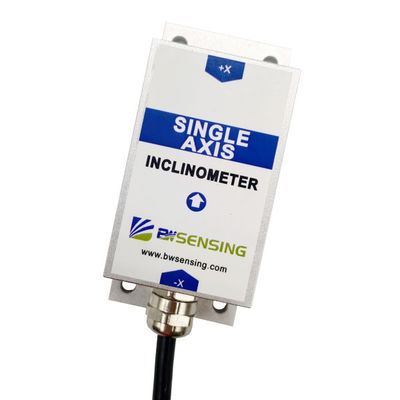

BWM410 High-Precision Voltage Output Single-Axis Inclinometer Tiltmeter 0-5V/0-10V Optional

  • BWM410 High-Precision Voltage Output Single-Axis Inclinometer Tiltmeter 0-5V/0-10V Optional
  • BWM410 High-Precision Voltage Output Single-Axis Inclinometer Tiltmeter 0-5V/0-10V Optional
Place of Origin CHINA
Brand Name BWSENSING
Model Number BWM410
Minimum Order Quantity 1 unit
Packaging Details BWSENSING BOX,Express package
Delivery Time 3-5 working days
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Analog Inclinometer Measurement Range (°) ±90
Measurement Axis X-Y Accuracy (°) 0.2
Resolution (°) 0.001 Start-up Time ＜3s
MTBF ≥90000 H/times Weight (g） 2000g，0.5ms，3 Times/axis
High Light

Single Axis precision inclinometer sensor

,

2000g precision inclinometer sensor

,

Resolution 0.001 electric power measuring device
Leave a Message
Product Description

BWM410 Voltage Output Single Axis Inclinometer MEMS Accuracy0.01° 0-5V/0-10V Optional Surveying And Mapping



Introduction:



BWM410 is a recommended choice to be used for surveying and mapping, industrial automation and other industries.It adopts MEMS technology and voltage output. The measurement range is ±180°, the highest accuracy is 0.01°, and the working temperature is -40°C to +85°C. The product uses a high-precision MEMS accelerometer and a high-resolution different digital-to-analog converter, with built-in automatic compensation and filtering algorithms, which largely eliminates errors caused by environmental changes. Convert the change of the static gravity field into the inclination change, and directly output the horizontal inclination value through the voltage method.



Performance Index:



Measurement Range (°)

 Condition ±90
Measurement axis   X-Y
Accuracy (°) Room temperature 0.2
Resolution (°) Completely still 0.001
Zero bias (°/℃) -40~85℃ ±0.005
Start-up time   ＜3s
Output frequency (Hz) 5-100Hz adjustable Up to 100
Full-scale output current range(V) 0~5V,0~10V(optional)
Mean time between failures MTBF ≥90000 h/times
Electromagnetic compatibility According to GBT17626
Insulation resistance ≥100 MΩ
Weight (g) 2000g,0.5ms,3 times/axis









Application:



● Structural deformation monitoring

● Surveying and Mapping Instruments

● Equipment automation

● Medical instruments

● Photovoltaic automatic tracking



BWSENSING's Accuracy Traceability System:



BWM410 High-Precision Voltage Output Single-Axis Inclinometer Tiltmeter 0-5V/0-10V Optional 0

Company introduction

Wuxi Bewis Sensing Technology LLC(BWSENSING) is an innovative fast growing company established in 2010. The company was born in The Institute of Microelectronics (IME) of Peking University. We have achieved the top spot in the middle and high-end industry applications in the Chinese market.

From 2019, BWSENSING ® is approved as our global brand.With 10 years experience in the research-design-development and manufacture of a range of Inertial sensor technology, BWSENSING posses the skills, knowledge and experience to provide fully integrated OEM/ODM design and manufacturing services for Inclinometer, Electronic Compass, IMU, AHRS, GNSS/INS and Fiber Optic Gyroscope. As the company co-founder Dr. Guangyi Shi said, we will use the Accurate and Cost-effective sensors to make a greater contribution to the global society for a better IoT world.



BWM410 High-Precision Voltage Output Single-Axis Inclinometer Tiltmeter 0-5V/0-10V Optional 1



FAQ



Q1: Accuracy definition of products

A: RMS accuracy, the accuracy of each product can be traced.Accuracy test report can be provided if required.



Q2: How to select suitable model?

A: Users should check the following points:

a. Single or dual axis?

b. Commom protocol, Modbus or CAN?

c. Dynamic or static Application scenarios?

d. Horizontal or vertical installation?





Q3: How to purchase?

A: If you want sample, please purchase on BWSENSING online shop. We accept Paypal/TT/CC.If you purchase in bulk, it is recommended to consult the sales for the best price.



Q4: How long is the warranty period?

A: One year.



Q5: Can analog quantity change the range?

A: User-defined settings can be made on the Beiwei host computer with RS232-USB through the reserved RS232 wire harness.
