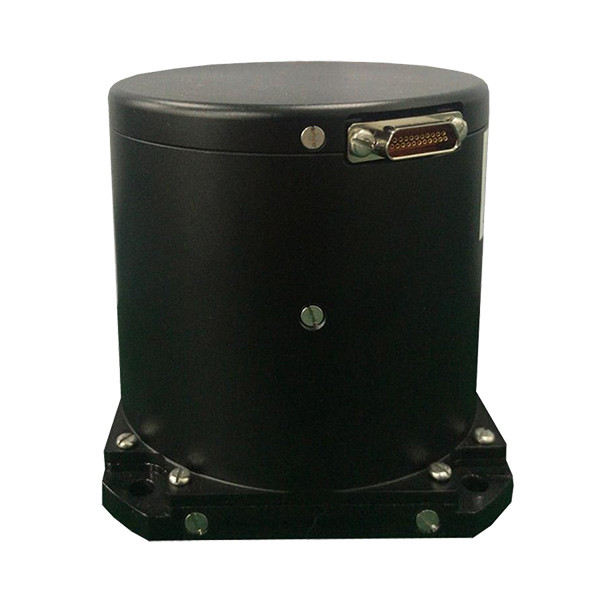

GI910 High-Precision Fiber Optic Integrated Navigation System INS GNSS

Place of Origin CHINA
Brand Name BWSENSING
Model Number GI910
Minimum Order Quantity 1 set
Packaging Details BWSENSING BOX,Express package
Delivery Time 5-8 working days
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Offset Stability(mg) 0.1 Bias Repeatability(mg) 0.1
Scale Factor Repeatability(ppm) ≤300 Vibration(Hz, G2/Hz) 20~2000,0.06
Shock(g, Ms) 30,11 Power(W) 15
Data Output Format RS-422 Size(mm) ≤90×90×125
High Light

15W GNSS INS Integration

,

0.05 deg accuracy GNSS INS Integration

,

ins navigation system 10g range

Leave a Message
Product Description

GI910 High-Precision Fiber Optic Integrated Navigation System Bias Stability 0.8 º/h Measurement Range ±10g



Introduction

The GI910 can measure the speed, position, and attitude of the carrier, and output the compensated angular rate, acceleration and other information. It has the advantages of all solid state, long life; large dynamic range, high bandwidth; instantaneous start, etc.,The regional

adaptability and robustness of the system can be greatly improved.



Performance index

External GPS effective 4m baseline North Seeking Accuracy(deg) ≤1*Secant Latitude
Azimuth Accuracy(deg)) ≤0.05
Attitude angle Accuracy(deg) ≤0.05
Speed Accuracy(m/s) ≤0.03
Position Accuracy(m) ≤2m/RTK 2cm
GPS outages Azimuth Keeping Accuracy(deg) ≤0.2, 1h
Attitude angle maintaining accuracy(deg) ≤0.05, 1h
Position accuracy(km)

≤15,0.5h

≤0.08,5min

System measurement range Azimuth measurement range(deg) ±180
Attitude measurement range(deg) ±90
Gyroscope Measurement range(deg/s) ±1000
bias stability(º/h) 0.2
Bias repeatability(º/h) 0.2
Random walk coefficient(º/√h) ≤0.01
Scale factor Non-linearity (ppm) ≤100
Scale factor asymmetry(ppm) ≤100
Scale factor repeatability(ppm) ≤100
Accelerometer Measurement range(g) ±10
Offset stability(mg) 0.1
Bias repeatability(mg) 0.1
Scale factor repeatability(ppm) ≤300
Environmental parameters Operating temperature(℃) -40~+65
Storage temperature(℃) -45~+70
Vibration(Hz, g2/Hz) 20~2000,0.06
Shock(g, ms) 30,11
Electrical parameters Input voltage(Vdc) +9~+36
Power(W) 15
Data output format RS-422
Data refresh rate (Hz) 100
Mechanical Size(mm) ≤90×90×125
Weight(kg) 2.5
Connector Y11P-1210ZK10

















































































































GI910 High-Precision Fiber Optic Integrated Navigation System INS GNSS 0



Application



Space stabilization platform, antenna system stabilization

Space stable platform, intelligent control of mining road header and coalexcavator

Attitude/azimuth reference system, multi-beam attitude sensing



GI910 High-Precision Fiber Optic Integrated Navigation System INS GNSS 1

Company introduction

Wuxi Bewis Sensing Technology LLC(BWSENSING) is an innovative fast growing company established in 2010. The company was born in The Institute of Microelectronics (IME) of Peking University. We have achieved the top spot in the middle and high-end industry applications in the Chinese market.

From 2019, BWSENSING ® is approved as our global brand.With 10 years experience in the research-design-development and manufacture of a range of Inertial sensor technology, BWSENSING posses the skills, knowledge and experience to provide fully integrated OEM/ODM design and manufacturing services for Inclinometer, Electronic Compass, IMU, AHRS, GNSS/INS and Fiber Optic Gyroscope. As the company co-founder Dr. Guangyi Shi said, we will use the Accurate and Cost-effective sensors to make a greater contribution to the global society for a better IoT world.



GI910 High-Precision Fiber Optic Integrated Navigation System INS GNSS 2



FAQ



Q1: Accuracy definition of products

A: RMS accuracy, the accuracy of each product can be traced.Accuracy test report can be provided if required.



Q2: How to select suitable model?

A: Users should check the following points:

a. Single or dual axis?

b. Commom protocol, Modbus or CAN?

c. Dynamic or static Application scenarios?

d. Horizontal or vertical installation?





Q3: How to purchase?

A: If you want sample, please purchase on BWSENSING online shop. We accept Paypal/TT/CC.If you purchase in bulk, it is recommended to consult the sales for the best price.



Q4: How long is the warranty period?

A: One year.



Q5: Fiber optic gyroscope test method

The military standard for the current fiber optic gyroscope test method is: GJB2426A-2004
