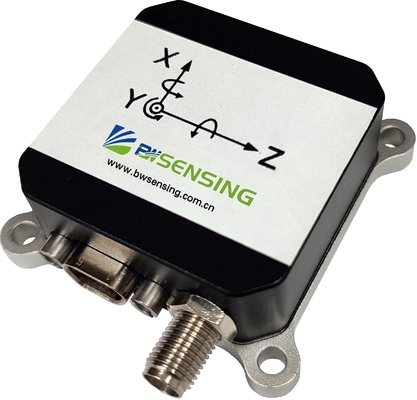

Military-Grade MEMS Navigation Module | 1KHz Compensation & 5Hz Kalman Filter | <1.5W Low Power

  • Military-Grade MEMS Navigation Module | 1KHz Compensation & 5Hz Kalman Filter | <1.5W Low Power
Place of Origin Jiangsu,China
Brand Name BWSENSING
Model Number GI-V5B
Minimum Order Quantity 1 PCS
Price USD 650
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Real-time And Post-processing Capabilities Bias Stability ≤ 36 ° / H
Gyro Range ±400°/s Accelerometer Range ±8g，±10g，±20g，±40g（standard ±8g）
Accelerometer Bias Stability ≤0.2mg. Size 46mm X 45mm X 18mm
Angular Velocity ±300 Deg/s Roll Angle ±90 Deg
Electrical Interface RS422 Rolling 0.2° (RMS, Dynamic), 0.05° (RMS, Static)
Pitching 0.2° (RMS, Dynamic), 0.05° (RMS, Static)
You can tick the products you need and communicate with us in the message board.
Accelerometer Bias stability (° /h, 10s smoothing)
Leave a Message
Product Description

GI-V5B is a cost-effective MEMS inertial/satellite integrated navigation system. It has a built-in triaxial gyro, triaxial accelerometer, triaxial magnetic sensor, a pneumatic sensor, and a BD/GPS/GLONASS/GALILEO four-mode receiver. The velocity, position and attitude of the carrier can be measured, as well as the output compensated angular velocity, acceleration, magnetic course, air pressure, temperature and other information.



Feature

l -40 ° c to 60 ° c, full temperature calibration

l High sampling rate of 1KHz, 1KHz compensation operation, 1KHz navigation operation, 5Hz kalman filter

l Adoption of mass-produced cost-effective, highly reliable inertial sensors

l High performance, small size, light weight and low power consumption;

l Support on-site calibration of magnetic heading

Range and accuracy can be customized according to requirements





Gyroscope
Range ±125,±250,±500,±1000,±2000(standard ±500)
Zero < 100°/h(room temperature )
Bias stability Room temperature static test 1 hour, gyro 10 seconds average data calculation standard deviation ≤ 36 ° / h
Bias repeatability At room temperature, repeat the measurement 20 times of zero bias data, standard deviation ≤ 36°/h
Bandwidth 100Hz(customized)
Accelerometer
Range ±8g,±10g,±20g,±40g(standard ±8g)
Zero <2mg(room temperature )
Bias stability Static test 1 hour at room temperature, second mean data, standard deviation ≤0.2mg.
Bias repeatability At room temperature, repeat the measurement 20 times of zero bias data, standard deviation ≤ 0.2mg.
Bandwidth 100Hz(customized)
Barometer
Height accuracy Meteorological conditions stable, room temperature conditions,< 10cm(1σ,Typical)
Output frequency 5Hz
Magnetic sensor
Range ±8 Gauss Noise Performance (RMS) 0.4mG
Resolution 0.0625 mG Directional accuracy ±1.0°
