AgileLight-200A Digital Closed Loop Single Axis Fiber Optic Gyroscope

Place of Origin CHINA
Brand Name BEWIS
Model Number AgileLight-200A
Minimum Order Quantity 1
Price 2677 USD
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Measurement Range ±1000°/s Zero-bias Stability (10s, 1σ, Room temperature) ≤0.2°/h
Zero-bias Repeatability (1σ, Room temperature) ≤0.2°/h Random Walk Factor ≤0.02°/√h
Scale Factor Non-linearity ≤50ppm Scale Factor Asymmetry ≤50ppm
Scale Factor Repeatability ≤50ppm
Leave a Message
Product Description

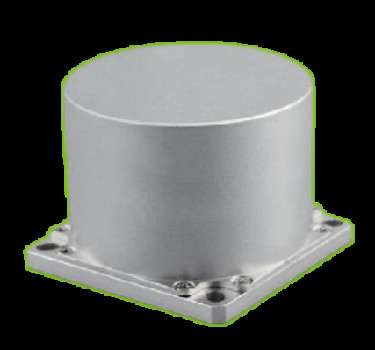

AgileLight-200A Digital Closed Loop Single Axis Fiber Optic Gyroscope 0



AgileLight-200A is an interferometric digital closed-loop Single Axis fiber- optic gyroscope with large operating bandwidth, high resolution, small zero drift, high linearity, short start-up time, shock and vibration resistance, low cost, etc. It is an alternative to the traditional mechanical gyroscope.

AgileLight-200A fiber Optic Gyro adopts the unique IntelliProcess technology, which not only eliminates the influence of temperature change on the gyro's performance to the maximum extent, but also significantly improves the key indexes of the fibre optic gyro, such as zero-bias stability, angular random wander, scale factor linearity, stability, and so on. Extremely low zero-bias stability and angular random wander, as well as strong vibration resistance make it perfect for a wide range of industrial applications. the AgileLight-200A's high performance, ruggedness, compactness, and competitive pricing make it the first choice for motion sensing, platform stabilisation, navigation, and precision targeting!


● All fiber optic technology: Long life, small size, high stability, anti-interference angle sensor

●IntelliProcess Technology: Built-in high-performance digital signal processing chip for full digital operation and adaptive filtering technology makes the gyro's zero drift and angular velocityrandom walk 50%-75% lower than similar products

●Integrated fiber polarization technology: reduces insertion loss, increases extinction ratio, and provides better resistance to temperature, mechanical shock and vibration for optical paths

●Compact and highly stable package: adapt to a variety of harsh environments. Widely applicable toall kinds of civil and military occasions
