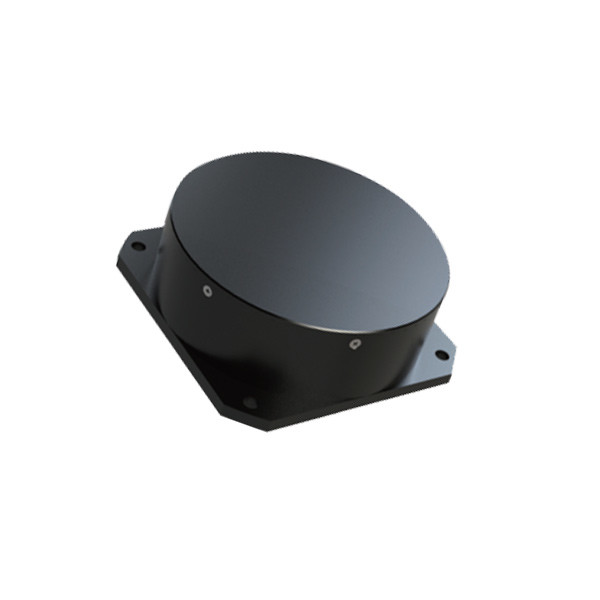

AgileLight-120A Digital Closed-Loop Single Axis Fiber Optic Gyro FOG
| Place of Origin | CHINA |
|---|---|
| Brand Name | BWSENSING |
| Model Number | AgileLight-120A |
| Minimum Order Quantity | 1 set |
| Packaging Details | BWSENSING BOX,Express package |
| Delivery Time | 5-8 working days |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Axial | Single Axis | Non-linear Scaling Factor At Room Temperature （ppm） | ≤10 |
|---|---|---|---|
| Repeatability Of Scale Factor（ppm） | ≤10 | Output Mode | RS 422 |
| Bias Stability At Room Temperature 1σ（º/h） | ≤0.002 | Bandwidth （Hz） | ＞400 |
| Weight （g） | ＜650 | Working Temperature （℃） | -40~+65 |
| Highlight | interferometric Fiber Optical Gyroscope,RS422 Fiber Optical Gyroscope closed loop,Single axis mems gyro sensor |
||
Product Description
BWSENSING AgileLight-120A Digital Closed-loop Fiber Optic Gyro
Introduction
AgileLight-120A is an interferometric digital closed-loop single-axis fiber optic gyroscope.
The AgileLight-120A fiber optic gyroscope adopts unique Intelli-Process technology, which
not only eliminates the influence of temperature changes on the performance of the gyroscope
to the greatest extent, but also significantly improves the bias stability, angle random, linearity of
the scale factor, stability and other fiber optic gyroscopes.
Performance index
| Technical parameter | Axial | Single axis |
| Maximum angular velocity (º/s) | ±300 | |
| Bias stability at room temperature 1σ(º/h) | ≤0.002 | |
| Bias stability at full temperature (º/h) | ≤0.01 | |
| Bias repeatability at room temperature (º/h) | ≤0.002 | |
| Repeatability of variable temperature bias (º/h) | ≤0.01 | |
| ARW(Noise)(º/ √hr) | 0.0005 | |
| Non-linear scaling factor at room temperature (ppm) | ≤10 | |
| Repeatability of scale factor(ppm) | ≤10 | |
| Mechanical feature | Bandwidth (Hz) | ＞400 |
| Update frequency (Hz) | 1000 or 400 | |
| Power consumption (W) | 4 | |
| Working voltage (V) | 5 | |
| Dimension (mm) | 120x120x30 | |
| Weight (g) | ＜650 | |
| Output mode | RS 422 | |
| Working temperature (℃) | -40~+65 |
Application
● Damping of high-speed train swing
● Locking of the aiming system
● Oil drilling
● Antenna/radar/optical platform stability
● Guidance and navigation
Company introduction
Wuxi Bewis Sensing Technology LLC(BWSENSING) is an innovative fast growing company established in 2010. The company was born in The Institute of Microelectronics (IME) of Peking University. We have achieved the top spot in the middle and high-end industry applications in the Chinese market.
From 2019, BWSENSING ® is approved as our global brand.With 10 years experience in the research-design-development and manufacture of a range of Inertial sensor technology, BWSENSING posses the skills, knowledge and experience to provide fully integrated OEM/ODM design and manufacturing services for Inclinometer, Electronic Compass, IMU, AHRS, GNSS/INS and Fiber Optic Gyroscope. As the company co-founder Dr. Guangyi Shi said, we will use the Accurate and Cost-effective sensors to make a greater contribution to the global society for a better IoT world.
FAQ
Q1: Accuracy definition of products
A: RMS accuracy, the accuracy of each product can be traced.Accuracy test report can be provided if required.
Q2: How to select suitable model?
A: Users should check the following points:
a. Single or dual axis?
b. Commom protocol, Modbus or CAN?
c. Dynamic or static Application scenarios?
d. Horizontal or vertical installation?
Q3: How to purchase?
A: If you want sample, please purchase on BWSENSING online shop. We accept Paypal/TT/CC.If you purchase in bulk, it is recommended to consult the sales for the best price.
Q4: How long is the warranty period?
A: One year.
