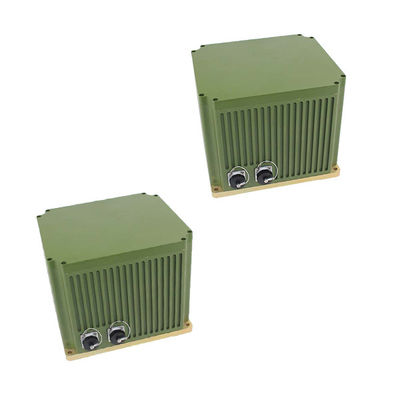

AgileLight-NS400 High-Performance Fiber Optic Gyro North Finder FOG
| Place of Origin | CHINA |
|---|---|
| Brand Name | BWSENSING |
| Model Number | AgileLight-NS400 |
| Minimum Order Quantity | 1 unit |
| Packaging Details | BWSENSING BOX,Express package |
| Delivery Time | 3-5 working days |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | AgileLight-NS400 | Size | L230*W200*H190（mm） |
|---|---|---|---|
| Output Form | RS422(Baud Rate 9600～115200) | Power Supply | 9～36V |
| Azimuth | 0°～360° | Attitude Angle | -7°～+7° |
| Azimuth Accuracy | 0.06°（1δ） | North Seek Time | 3min/5min |
| High Light | 9v Fiber Optical Gyroscope,RS422 output Fiber Optical Gyroscope,2 axis gyroscope curacy 0.06 |
||
Product Description
AgileLight-NS400 High-Performance Fiber Optic Gyro North Finder
Introduction:
Agilelight-ns400 fiber optic gyro north seeker is suitable for motion sensing, platform stability, navigation and precise aiming. The unique intelligent processing technology is adopted to eliminate the influence of temperature change on the performance of the gyro to the greatest extent, and significantly improve the key indexes such as angle random walk, bias stability, scale factor linearity and so on. It is an excellent alternative to the traditional mechanical gyroscope,has the advantages of high resolution, small zero drift, short start-up time, impact resistance, vibration resistance and low cost.
Performance Index:
|
Measurement Range |
Azimuth | 0°～360° |
| Attitude angle | -7°～+7° | |
|
Performance |
Azimuth accuracy | 0.06°(1δ) |
| Attitude angle accuracy | 0.06° | |
| Start-up Time | 10s | |
| North seek time | 3min/5min | |
|
Physical characteristics |
Power supply | +9Vdc～+36Vdc |
| Maximum power | 30W | |
| Output form | RS422( Baud rate 9600～115200 | |
| Operating temperature | -40°～ +60° | |
| Storage temperature | -45°～ +70° | |
| Weight | 6.1kg | |
| Connector | Y11P-1210ZK10 |
Application:
● Initial alignment of surveying and mapping equipment
● Stability of the antenna system
● Tunnel construction orientation
● Attitude/Azimuth Reference System
BWSENSING's Accuracy Traceability System:
Company introduction
Wuxi Bewis Sensing Technology LLC(BWSENSING) is an innovative fast growing company established in 2010. The company was born in The Institute of Microelectronics (IME) of Peking University. We have achieved the top spot in the middle and high-end industry applications in the Chinese market.
From 2019, BWSENSING ® is approved as our global brand.With 10 years experience in the research-design-development and manufacture of a range of Inertial sensor technology, BWSENSING posses the skills, knowledge and experience to provide fully integrated OEM/ODM design and manufacturing services for Inclinometer, Electronic Compass, IMU, AHRS, GNSS/INS and Fiber Optic Gyroscope. As the company co-founder Dr. Guangyi Shi said, we will use the Accurate and Cost-effective sensors to make a greater contribution to the global society for a better IoT world.
FAQ
Q1: Accuracy definition of products
A: RMS accuracy, the accuracy of each product can be traced.Accuracy test report can be provided if required.
Q2: How to select suitable model?
A: Users should check the following points:
a. Single or dual axis?
b. Commom protocol, Modbus or CAN?
c. Dynamic or static Application scenarios?
d. Horizontal or vertical installation?
Q3: How to purchase?
A: If you want sample, please purchase on BWSENSING online shop. We accept Paypal/TT/CC.If you purchase in bulk, it is recommended to consult the sales for the best price.
Q4: How long is the warranty period?
A: One year.
Q5: Fiber optic gyroscope test method
The military standard for the current fiber optic gyroscope test method is: GJB2426A-2004
