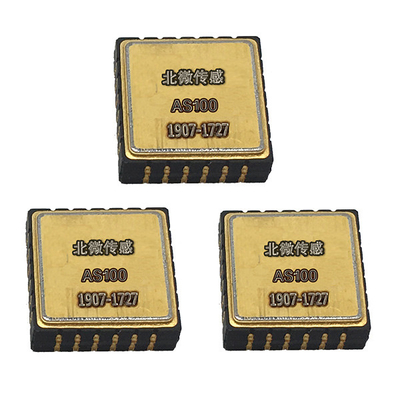

As100-100 Small-Size High-Precision Mems Accelerometer SPI Bus Output UAV Flight Control Inertial Navigation

  • As100-100 Small-Size High-Precision Mems Accelerometer SPI Bus Output UAV Flight Control Inertial Navigation
Place of Origin CHINA
Brand Name BWSENSING
Model Number As100-100
Minimum Order Quantity 1 unit
Packaging Details BWSENSING BOX,Express package
Delivery Time 3-5 working days
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Accelerometer Chip Threshold/resolution 0.2mg
Scale Factor Nonlinearity 0.3% Of FS Scale Factor Repeatability 250ppm
Start-up Time 0.1s Bandwidth 100Hz
Power Consumption ＜40mW Output SPI Digital Output
High Light

SPI Bus Accelerometer Chip

,

Accelerometer Chip 0.2mg resolution

,

40mW electrical test and measurement equipment
Leave a Message
Product Description

As100-100 Small-Size High-Precision Mems Accelerometer SPI Bus Output UAV Flight Control Inertial Navigation



Introduction:



Gyro100-1000 is a micromechanical gyroscope with high precision and small volume based on MEMS technology. It adopts small volume ceramic package and integrates temperature compensation function. It has the advantages of high impact resistance, high precision, wide range and wide temperature range. The operating temperature range is - 40 ° C to + 85 ° C and the storage temperature is - 55 ° C to + 125 ° C.


Performance Index:



Bias stability (typical) 0.5mg
Offset repeatability 1mg
Partial temperature coefficient 0.5mg/℃
Bias stability at full temperature (typical) 11mg
Threshold/resolution 0.2mg
Scale factor nonlinearity 0.3% of FS
Scale factor repeatability 250ppm
Scale factor temperature coefficient 15ppm/℃
Start-up Time 0.1s
Sampling Rate 1000Samples/s
Bandwidth 100Hz
Power consumption ＜40mW
Power supply 3.3VDC
Output SPI digital output
Package LCC ceramics
Operating temperature -40~+85℃
Storage temperature -55~+125℃
Random vibration 6g effective value(20~2KHz)
Impact resistance 10000g
Dimension 10*10*3.5mm
Weight <1g



As100-100 Small-Size High-Precision Mems Accelerometer SPI Bus Output UAV Flight Control Inertial Navigation 0


Application:



● Attitude Reference System(AHRS)

● UAV flight control

● Navigation

● Acceleration measurement


BWSENSING's Accuracy Traceability System:



As100-100 Small-Size High-Precision Mems Accelerometer SPI Bus Output UAV Flight Control Inertial Navigation 1



Company introduction

Wuxi Bewis Sensing Technology LLC(BWSENSING) is an innovative fast growing company established in 2010. The company was born in The Institute of Microelectronics (IME) of Peking University. We have achieved the top spot in the middle and high-end industry applications in the Chinese market.

From 2019, BWSENSING ® is approved as our global brand.With 10 years experience in the research-design-development and manufacture of a range of Inertial sensor technology, BWSENSING posses the skills, knowledge and experience to provide fully integrated OEM/ODM design and manufacturing services for Inclinometer, Electronic Compass, IMU, AHRS, GNSS/INS and Fiber Optic Gyroscope. As the company co-founder Dr. Guangyi Shi said, we will use the Accurate and Cost-effective sensors to make a greater contribution to the global society for a better IoT world.



As100-100 Small-Size High-Precision Mems Accelerometer SPI Bus Output UAV Flight Control Inertial Navigation 2



FAQ



Q1: Accuracy definition of products

A: RMS accuracy, the accuracy of each product can be traced.Accuracy test report can be provided if required.



Q2: How to select suitable model?

A: Users should check the following points:

a. Single or dual axis?

b. Commom protocol, Modbus or CAN?

c. Dynamic or static Application scenarios?

d. Horizontal or vertical installation?





Q3: How to purchase?

A: If you want sample, please purchase on BWSENSING online shop. We accept Paypal/TT/CC.If you purchase in bulk, it is recommended to consult the sales for the best price.



Q4: How long is the warranty period?

A: One year.
